Reese Trailer Tow Hitch For 00-05 Cadillac DeVille 06-11 DTS Deluxe Package Wiring 2" and 1-7/8" Ball and Lock
- Stock: Pre-Order
- Brand: Reese
- Model: 06298 36071 119148 63820 63810 580407 2211

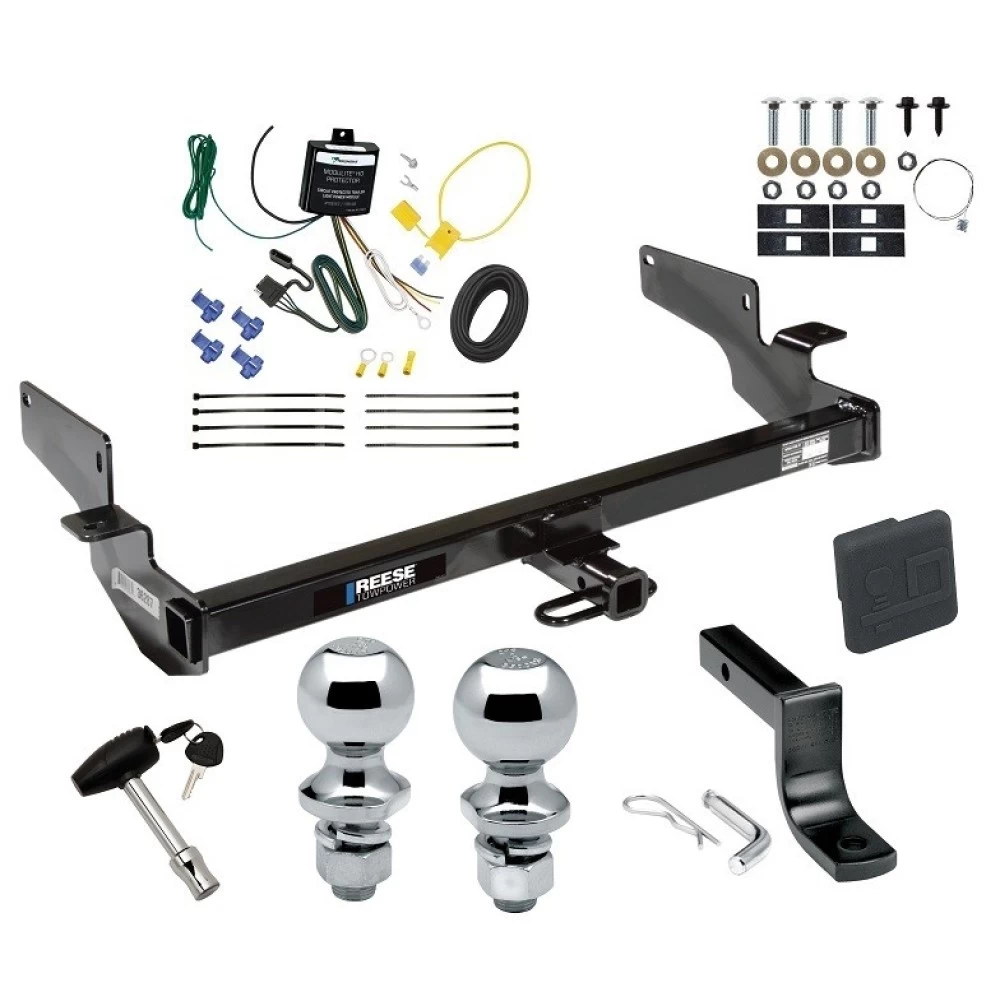

Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2005 Cadillac, DeVille, All Styles
2006 - 2011 Cadillac, DTS, All Styles

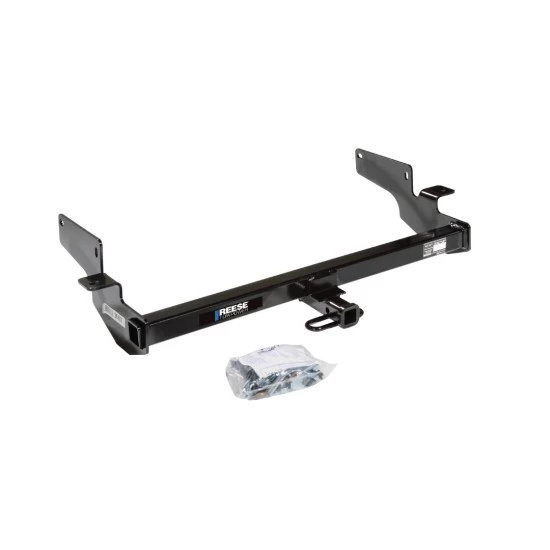

Trailer Hitch Specs:
Part Number | 06298 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 2 |
Receiver size opening | 1-1/4" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 300 lbs |
Warranty | Lifetime |
Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)
Specifications:
Fits | 1-1/4" x 1-1/4" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 7-3/16" From Center of Pin Hole to Center of Ball Hole |
Rise | 2-5/8" From inside top of hitch opening |
Towing Capacity in Rise Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
Drop | 3-1/4" From inside top of hitch opening |
Towing Capacity in Drop Position | 3,500 lb Gross Towing Weight 300 lb Tongue Weight |
Ball Hole Diameter | 3/4" |
Pin hole diameter | 1/2" |
Warranty | Limited Lifetime |
Wiring Kit Specs:
Part Number | 119148 |
Brand | Tekonsha |
Warranty | 1 Year |
Hitch Ball Specs:
Part Number | 63820 |
Brand | Draw-Tite |
Size | 2" x 3/4" x 1-1/2" |
Towing Capacity | 3,500 lbs. GTW |
Material | Chrome |
Torque | Torque to 160 ft. lbs |
Shank Diameter | 3/4" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63810 |
Brand | Draw-Tite |
Size | 1-7/8" x 3/4" x 1-1/2" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 3/4" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 00 01 02 03 04 05 06 07 08 09 10 11 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | Yes |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
