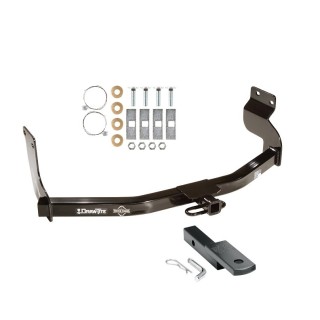

Trailer Tow Hitch For 05‑12 Ford Escape Mazda Tribute Mercury Mariner Receiver w/ Draw‑Bar Kit
Model: 365010 'Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2005 - 2007 Ford, Escape, All Styles
2005 - 2011 Mazda, Tribute, All Styles
2005 - 2011 Mercury, Mariner, All Styles
Trailer Hitch Specs:
| Part Number | 365010 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 2005 2006 2007 2008 2009 2010 2011 2012
$243 24 $422.98 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$422.98 $243 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 365010 '
- UPC: 016118139990
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2005 - 2007 Ford, Escape, All Styles
2005 - 2011 Mazda, Tribute, All Styles
2005 - 2011 Mercury, Mariner, All Styles
Trailer Hitch Specs:
| Part Number | 365010 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 05 06 07 08 09 10 11 12 2005 2006 2007 2008 2009 2010 2011 2012
Get Expert Help
Trailer Tow Hitch For 05-12 Ford Escape Mazda Tribute Mercury Mariner Receiver w/ Draw-Bar Kit Install Notes
Installation Instructions for Ford Escape, Mercury Mariner, and Mazda Tribute
Part Numbers:
- 36501
- 90108
- 06120
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
- Drill Bits: 1" and 3/8" (if tie-down bracket is present)
- Pull Wire (provided)
Step-by-Step Instructions:
-
Prepare Frame Rails:
- If access holes for bolts and spacers exist in the frame rails, there is no need to drill.
- For vehicles with tie-down brackets, some interference with the end-of-frame access hole on the driver’s side may occur. Refer to Figure 1.
-
Insert Rearward Hardware:
- Use the pull wire method (Figure 3) to insert a carriage bolt and spacer into the rearward holes of each frame rail.
- Leave pull wires attached. Ensure spacers remain independent of bolts to prevent binding.
-
Position Hitch:
- Feed pull wires through the slots in the hitch.
- Raise the hitch into position, guiding it onto the carriage bolts. Remove the pull wires carefully.
- Attach conical washers and hex nuts to the bolts. Hand-tighten all fasteners.
-
Install Remaining Hardware:
- Using the same access holes as in Step 2, insert the remaining carriage bolt and spacer into each frame rail with the pull wire.
- Repeat the process to secure the hitch.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.
-
Finish Installation:
- Paint any bare metal to prevent rust.
- Inspect the hitch to ensure proper alignment and secure attachment.

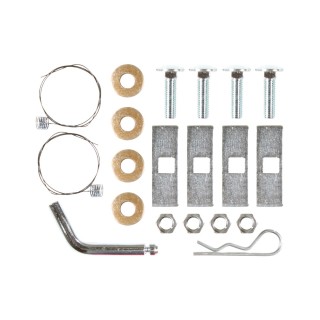

Hardware List:
- (4) Carriage Bolt 1/2"-13 x 1.75" GR5
- (4) Spacer Block
- (4) Conical Washer
- (4) Hex Nut 1/2"-13
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure secure attachment.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
- Observe safety precautions when working beneath the vehicle.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the drop position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Drawbar Kit: 36051 (sold separately)
- Fastener Kit: 36501F
- Installation time for professional installers is approximately 30 minutes.
- For additional assistance, refer to the manual or scan the QR code provided.
