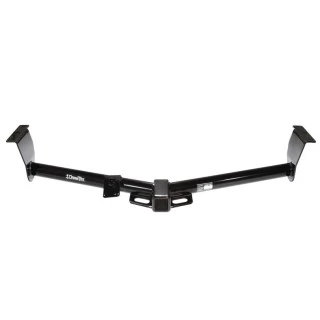

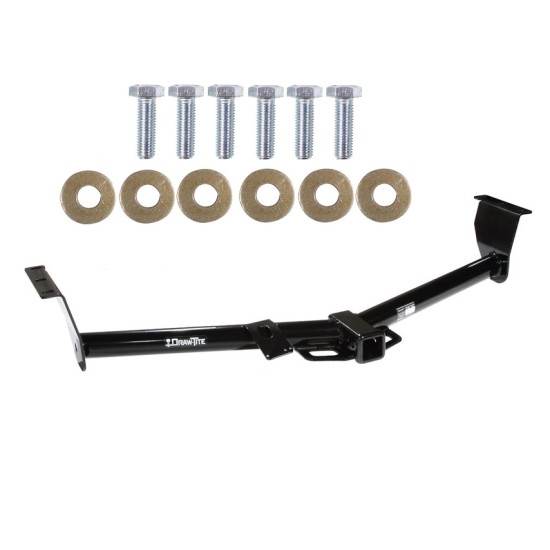

Trailer Tow Hitch For 06‑14 Kia Sedona 07‑09 Hyundai Entourage 2" Receiver
Model: 754212006 - 2014 KIA, Sedona, 118.9" Long Wheelbase
2007 - 2009 Hyundai, Entourage, All Styles
Trailer Hitch Specs:
| Part Number | 75421 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2012 2013 2014
$268 21 $418.84 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$418.84 $268 21
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75421
- UPC: 742512754216
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
2006 - 2014 KIA, Sedona, 118.9" Long Wheelbase
2007 - 2009 Hyundai, Entourage, All Styles
Trailer Hitch Specs:
| Part Number | 75421 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 11 12 13 14 2006 2007 2008 2009 2012 2013 2014
Get Expert Help
Trailer Tow Hitch For 06-14 Kia Sedona 07-09 Hyundai Entourage 2" Receiver Install Notes
Installation Instructions for Kia Sedona Van and Hyundai Entourage
Part Numbers:
- 75421
- 44537
- 70761
- 78211 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from its hangers to provide better access to the frame fastener locations.
-
Position the Hitch:
- Raise the hitch on the passenger side over the exhaust pipe.
- Slowly rotate the hitch into its proper position under the vehicle.
-
Secure the Hitch:
- Loosely install all provided bolts into the existing weldnuts in the frame.
- Push the hitch forward against the installed bolts for proper alignment.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach the Exhaust:
- Reattach the exhaust hangers to their original positions.

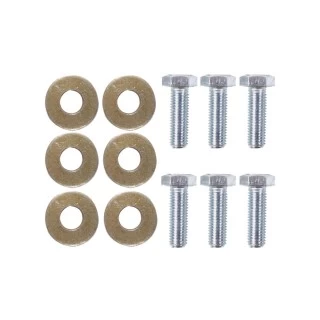

Hardware List:
- (6) M12 x 1.25 Hex Bolts
- (6) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
