Front Mount Trailer Tow Hitch For 07‑10 Chevy Silverado GMC Sierra 2500 3500 HD
Model: 650502007 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2007 - 2010 GMC, Sierra 2500 HD, All Styles
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 65050 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 2007 2008 2009 2010
$178 98 $279.50 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$279.50 $178 98
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $44.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65050
- UPC: 742512650501
- Includes: Front Mount Hitch Receiver
Compatibility Chart
Description
2007 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2007 - 2010 GMC, Sierra 2500 HD, All Styles
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 65050 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 500 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 2007 2008 2009 2010
Get Expert Help
Front Mount Trailer Tow Hitch For 07-10 Chevy Silverado GMC Sierra 2500 3500 HD Install Notes
Installation Instructions for Chevrolet Silverado 2500 HD, 3500 HD & GMC Sierra 2500 HD, 3500 HD
(Fascia Trim Required - Obtain Vehicle Owner's Approval Before Cutting)
Part Numbers:
- 65050
Tools Required:
- Tape Measure
- Utility Knife
- Tape
- Marking Pencil
- 21mm Wrench
- 18mm Wrenches (2)
- 3/4” Wrench
- Torque Wrench
Step-by-Step Instructions:
-
Trim Fascia for Receiver Tube:
- Follow these steps to trim the fascia:
- Measure the distance from the tow hook bolt center to the ground.
- Subtract 3/4" (0.750") from the measurement obtained in Step 1.
- Measure the difference up to the front of the fascia and mark this location.
- Mark 3-1/4" up from the lower mark.
- Find the center of the fascia (left to right) and mark 1-5/8" on each side to create a 3-1/4" square.
- Drill (4) 3/8" holes at the corners of the square.
- Carefully cut out the 3-1/4" square from the fascia.
Note: Consult the vehicle owner before trimming.
- Follow these steps to trim the fascia:
-
Remove Tow Hook Fasteners:
- Remove the flange nuts securing the tow hooks:
- Passenger Side: Loosen the bolt until it is flush with the inboard frame rail.
- Driver Side: Remove the bolt completely and keep for reinstallation.
- Remove the flange nuts securing the tow hooks:
-
Raise the Hitch into Position:
- Lift the hitch into place and push both tow hook bolts through the brackets to support the hitch.
- Note: If interference occurs with the bumper support, loosen (do not remove) and raise the bumper for extra clearance.
-
Install Handle Nuts and Bolts:
- Tape the spacers (Item 3) to the handle nuts (Item 4).
- Bend and insert the handle nuts through the access holes in the frame.
- Secure the hitch using:
- 1/2”-13 x 1.5” hex bolts (Item 1)
- 1/2” conical washers (Item 2).
-
Final Tightening and Torque:
- Tighten all fasteners to the specified torque:
- 1/2" Grade 5 bolts: 50 lb-ft (68 N-m).
- M12 Class 10.9 bolts: 92 lb-ft (125 N-m).
- Caution: Hold the handle nuts in place to prevent rotation during tightening.
- Tighten all fasteners to the specified torque:
-
Re-tighten Bumper Support (If Loosened):
- If the bumper support was loosened in Step 3, re-tighten it.

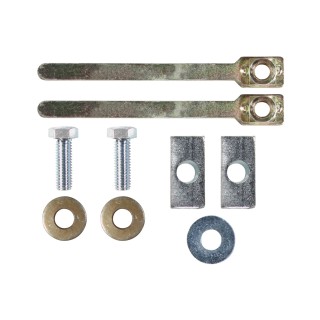

Hardware List:
- (2) 1/2”-13 x 1.5” Hex Bolts
- (2) 1/2” Conical Washers
- (2) Spacers (1-1/2” x 2”)
- (2) Handle Nuts (1/2”-13)
- (1) Flat Washer (optional, if needed)
Safety Notes:
- Check the hitch regularly to ensure all fasteners are tight and components are sound.
- If the hitch is removed, plug all holes in body panels to prevent water or exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 500 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
Manufacturer Notes:
- Observe all safety precautions when working beneath the vehicle, including wearing eye protection.
- Do NOT use a torch to cut access holes.
- This product complies with SAE J684 and VESC Regulation V-5 standards.
End of Instructions
