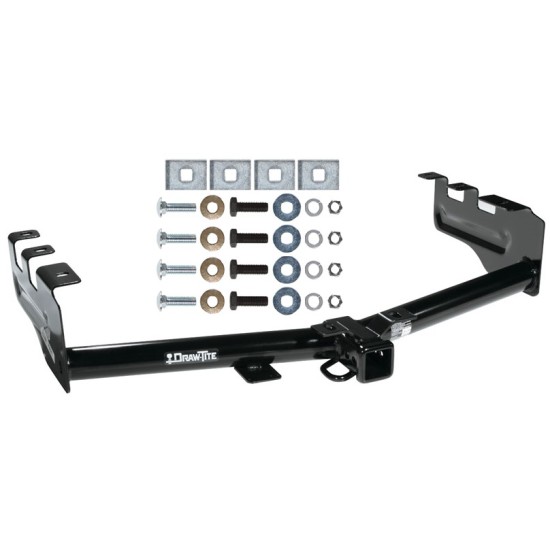

Trailer Tow Hitch For 99-13 Chevy Silverado GMC Sierra 1500 and 99-04 2500 LD

Trailer Tow Hitch For 99‑13 Chevy Silverado GMC Sierra 1500 and 99‑04 2500 LD

Model: 75521

This Hitch Fits The Following Vehicles:

1999 - 2002    Chevrolet, Silverado 1500, All Styles
2003 - 2007    Chevrolet, Silverado 1500, (Classic)
2007 - 2013    Chevrolet, Silverado 1500, All Styles
2001 - 2003    Chevrolet, Silverado 1500 HD, All Styles
2005 - 2007    Chevrolet, Silverado 1500 HD, (Classic)
1999 - 2004    Chevrolet, Silverado 2500, All Styles
1999 - 2002    GMC, Sierra 1500, All Styles
2003 - 2007    GMC, Sierra 1500, (Classic)
2007 - 2013    GMC, Sierra 1500, All Styles
2001 - 2003    GMC, Sierra 1500 HD, All Styles
2005 - 2007    GMC, Sierra 1500 HD, (Classic)
1999 - 2004    GMC, Sierra 2500, All Styles

Trailer Hitch Specs:

Part Number	75521
Brand	Draw-Tite
Finish	Black Powdercoat
Class	4
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,500 lbs
Max Tongue Weight	900/1,050 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 99 00 01 02 03 04 05 06 07 08 09 10 11 12 13 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013

See Full Description

$209 ⁷⁹ $327.59 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$327.59 $209 ⁷⁹

Pay in 4 interest-free installments of $52.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75521
UPC: 742512755213
Includes: Class 4 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,500 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	900 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,050 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Be the first to ask a question.

Description

Part Number	75521
Brand	Draw-Tite
Finish	Black Powdercoat
Class	4
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	10,500 lbs
Max Tongue Weight	900/1,050 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 75521 , 1999 , 2000 , 2001 , 2002 , 99 , 00 , 01 , 02 , Chevrolet , Silverado , 1500 , Draw-Tite , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Trailer Tow Hitch For 99-13 Chevy Silverado GMC Sierra 1500 and 99-04 2500 LD Install Notes

Installation Instructions for Chevrolet Silverado 1500 and GMC Sierra 1500
(Requires OEM Bumper)

Part Numbers:

87430
75521
44563

Tools Required:

Wrenches: 3/4", 21mm, 22mm
Drill Bits: None

Wiring Access Location:

Step-by-Step Instructions:

Remove Existing Fasteners:
- Remove the existing M14 bolts from the end of each frame rail.
Position the Hitch:
- Lift the hitch receiver into position, aligning the rearmost slots on the hitch with the existing weldnuts in the vehicle frame.
Install New M14 Bolts:
- Install new M14 bolts through the hitch into the weldnuts in the vehicle frame and step bumper.
Install Remaining Fasteners:
- Secure the hitch using the provided carriage bolts, flat washers, lock washers, and hex nuts as shown in the diagram.
Tighten Fasteners:
- Use a torque wrench to tighten all fasteners to the following specifications:
  - Tighten M14 CL10.9 fasteners to 115 lb-ft (156 N·m).
  - Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).

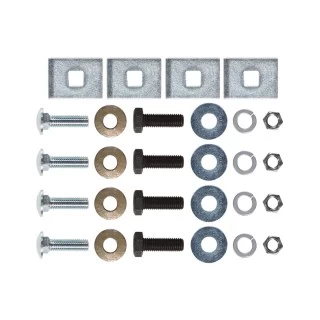

Hardware List:

(4) M14 x 2.00 x 40mm CL10.9 Hex Bolts
(4) 9/16" Lock Washers
(4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
(4) 9/16" Flat Washers
(4) 1/2" Conical Washers
(4) 1/2"-13 Hex Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow all safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 10,500 lbs (4,767 kg), Max Tongue Weight 1,050 lbs (477 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
