Trailer Tow Hitch For 11‑17 Honda Odyssey All Styles 2" Receiver Class 3

Name: Trailer Tow Hitch For 11-17 Honda Odyssey All Styles 2" Receiver Class 3
Brand: Draw-Tite
Price: 205.36 USD
Availability: InStock
Rating: 5 (1 reviews)

Model: 76025

This Hitch Fits The Following Vehicles:

2011 - 2017 Honda, Odyssey, All Styles

Trailer Hitch Specs:

Part Number	76025
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	525 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 11 12 13 14 15 16 17 2011 2012 2013 2014 2015 2016 2017

See Full Description

$205 ³⁶ $320.73 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$320.73 $205 ³⁶

Pay in 4 interest-free installments of $51.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76025
UPC: 016118038910

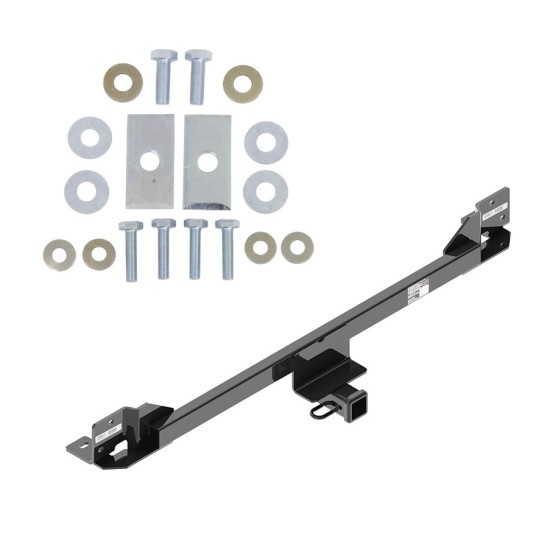

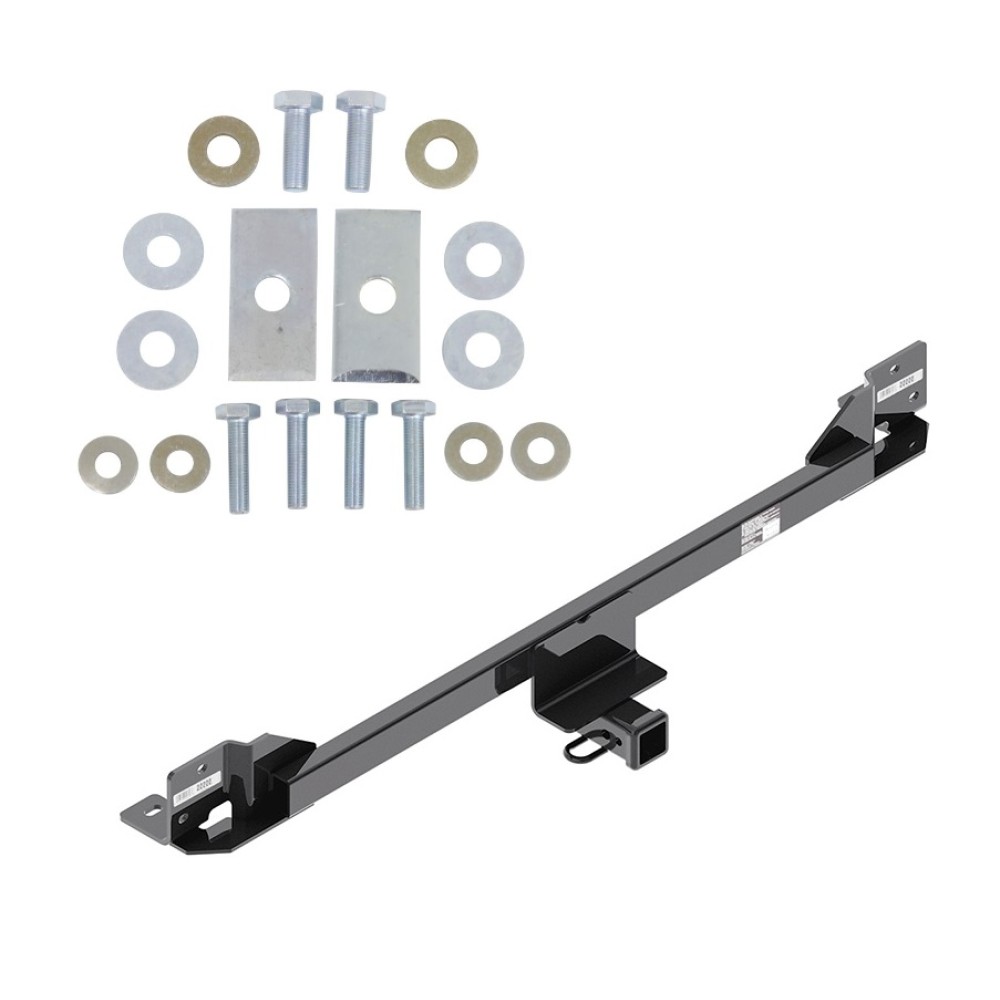

Includes: Class 3 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	525 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

This Hitch Fits The Following Vehicles:

2011 - 2017 Honda, Odyssey, All Styles

Trailer Hitch Specs:

Part Number	76025
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	525 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 76025 , 2011 , 2012 , 2013 , 2014 , 2015 , 2016 , 2017 , 11 , 12 , 13 , 14 , 15 , 16 , 17 , Honda , Odyssey , Draw-Tite , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Trailer Tow Hitch For 11-17 Honda Odyssey All Styles 2" Receiver Class 3 Install Notes

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76025 & #84025

Part Numbers:

76025
84025

Applications:

Years: 2011-2016
Make: Honda
Model: Odyssey

For updated information on application years and trim levels, refer to the manufacturer's website.

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 10 mm, 17 mm, 18 mm
6" Socket Extension
Panel Removal Tool
Plastic Trim Tools
Phillips Screwdriver
Utility Knife
3/16" Hex Bits
Hammer

Step-by-Step Instructions:

1. Bottom Panel and Mud Flap Removal:

Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove three rivets and two bolts from the bottom panel on the driver side.
Remove the mud flap on each side, if present.
Retain the bottom panel and mud flaps for reinstallation.

2. Bumper Fascia Removal:

Remove two plastic rivets from the center bottom fascia using a panel removal tool.
Use a Phillips screwdriver and 10 mm socket to remove four bolts from each wheel well liner.
Open the trunk and remove two screws from each side using 3/16" hex bits.
Use plastic trim tools to gently remove the plastic fascia, starting from the wheel well edges.
Disconnect the fascia wiring if equipped.

3. Bumper Beam Removal:

Use a 14 mm socket to remove four factory bolts from the bumper beam and set them aside for reinstallation.

4. Hitch Installation:

Tape four flat washers (#1) to the end panel where the holes are located.
Tape one spacer block (#2) to the hitch tab on each side.
Raise the hitch above the exhaust pipe and loosely install:
- M10 bolts (#5) and 3/8" conical washers (#6) to the upper attachment holes on the end panel.
- M12 bolts (#3) and 1/2" conical washers (#4) to the frame rails.
Raise the bumper beam to sandwich the hitch and loosely secure it with the remaining M10 fasteners in the lower attachment holes.

5. Tighten Fasteners:

Torque all M10 fasteners to 59 lb-ft (80 N·m).
Torque all M12 fasteners to 76 lb-ft (103 N·m).

6. Bumper Beam Height Adjustment:

Use a hammer to bend the three raised brackets on the bumper beam, reducing the height by approximately 1/4".
Trim the foam piece to fit on the bumper beam.

7. Bottom Fascia Trimming:

Locate the center of the bottom panel and trim an area 3.0" tall by 8.5" wide.
Trim the fascia area above the muffler.

8. Reinstallation:

Reinstall all fasteners, fascia, appearance bottom panel, and mud flaps removed in Steps 1 and 2.

Hardware List:

4 × Flat Washers (#1) – 1/2"
2 × Spacer Blocks (#2) – 0.375" × 1.50" × 3.00"
2 × M12 Bolts (#3) – 1.25 × 45 mm, Class 8.8
2 × Conical Washers (#4) – 1/2"
4 × M10 Bolts (#5) – 1.25 × 40 mm, Class 10.9
4 × Conical Washers (#6) – 3/8"

Safety Notes:

Always wear safety glasses during installation.
Proper torque is essential to keep the hitch secure to the vehicle.
Do not cut access or attachment holes with a torch.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.

Specifications:

Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
Max Tongue Weight: 525 lbs (238 kg)
Weight Distribution: Not Applicable
Installation Time: Approximately 80 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support, contact us at 877-869-6690 or visit www.trailerjacks.com.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.
