Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready
Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready

Trailer Hitch 7 Way RV Wiring Kit For 15-24 Ford Transit 150 250 15-23 350 Plug Prong Pin Brake Control Ready

Model: 118643 85343 20506 7012A
This Wiring Fits The Following Vehicles:

2015 - 2024    Ford, Transit-150, All Styles
2015 - 2024    Ford, Transit-250, All Styles
2015 - 2023    Ford, Transit-350, Single Rear Wheel w/148" Wheelbase

Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

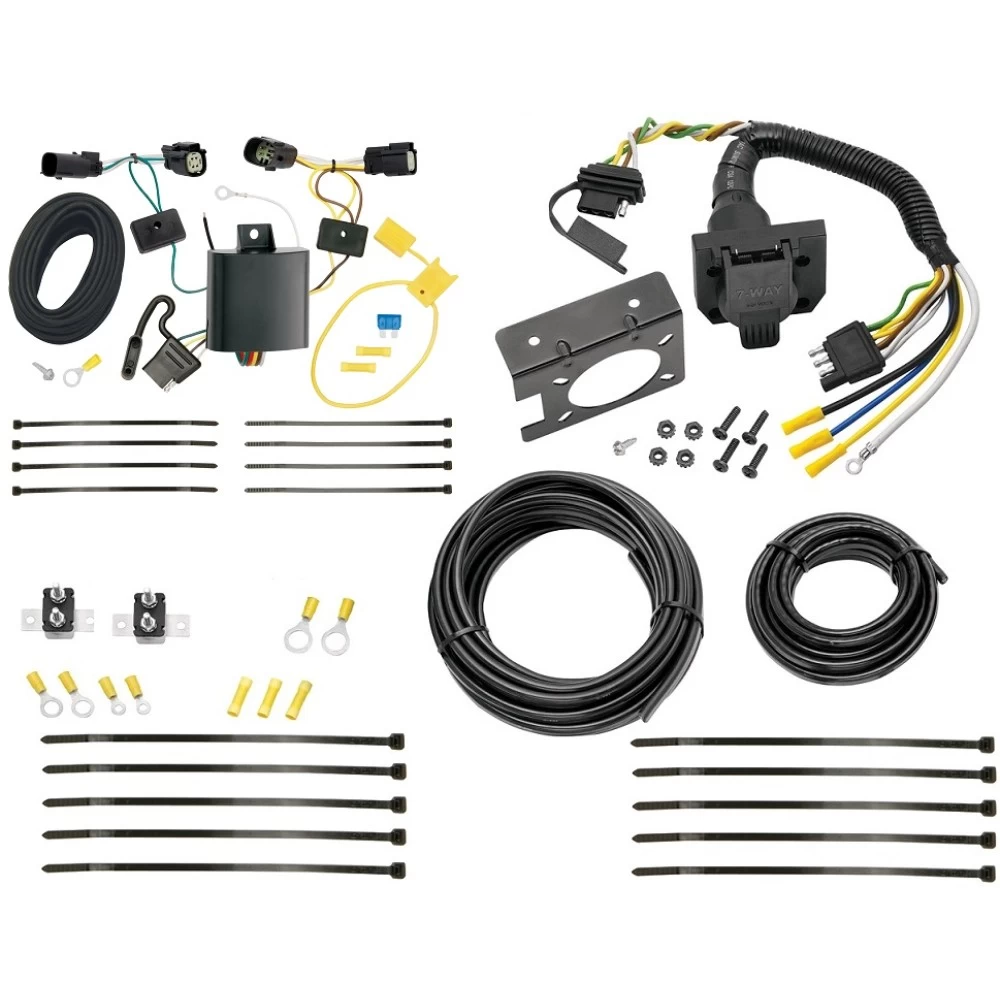

Each Kit includes:

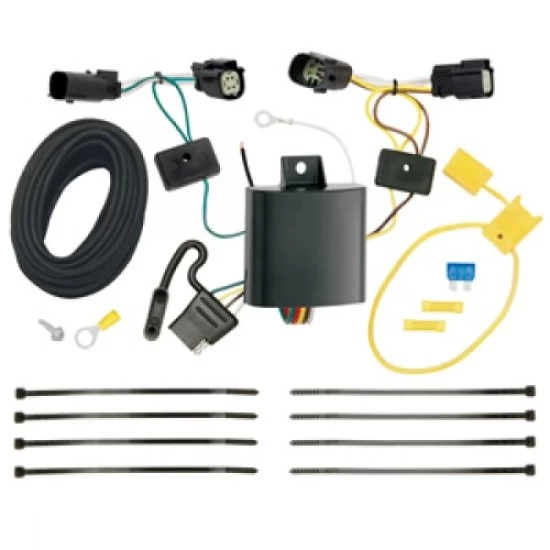

  •   Plug and Play T-One Wiring Harness Connector
  • 4-Way to 7-Way adapter w/ mounting bracket and screws
  • Wiring Kit for 6 to 8 Brake Control Systems
  • Includes 25 ft. 12-2 Duplex Wire
  • (2) 30 Amp Circuit Breakers
  • Attaching Terminals and Ring Connectors

Part Numbers 118643 85343 20506 7012A
Brand Tekonsha
Warranty 1 Year
T-One Wiring
Installation
4-Way to 7-Way
Adapter Installation
Brake Control
Wiring Installation



Questions or Comments? Call 702-374-8999


Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control systems. You are here because you need a 7-Way Connector Plug on your vehicle. You are most likely about to purchase or already own a travel trailer or some other type of trailer thas has electric brakes. We have put together a kit for you that includes everything you need to get this job accomplished. After installing this kit on your vehicle the only thing you will need is an electric brake controller. Please scroll down to see our brake controllers.

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024



$164 74

  • Best Price on Web Guarantee
  • Fastest Shipping
  • FREE Shipping
  • In Stock
Best Price on Web Guarantee
Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Applies to this product only

$164 74

Pay in 4 interest-free installments of with Pay with Affirm Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.

  • No fees, ever.
  • No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details


Specification
Circuit Protected Yes
Hardware Included Yes
Harness Type 4-Way Flat (Vehicle Side)
Terminal Quantity 7
Universal Or Specific Fit Specific Fit
Wire Colors White Ground, Brown Taillights, Green Right turn / brakes, Red Auxiliary power, Yellow Left turn / brakes, Black Reverse lights, Blue Electric brakes
Wire Quantity 7 Wires
Questions1 Answers1 | Expand All
  • Hello Wade, This kit you're viewing, part number 118643 85343 20506 7012A, includes all the wiring you will need to fully install any brake controller you choose. It comes with plug-and-play wiring for your turn signals, brakes, and running lights. It also includes a 7-way adapter along with duplex wires to run to your battery and inside the van where you will have your brake controller mounted. The undercar wire is heavy-duty, suitable for up to 4 axles, and will also provide plenty of power to the auxiliary pin in your 7-way. Additionally, it includes 2 self-resetting circuit breakers to protect your vehicle's wiring, trailer wiring, and brake controller.
    Trailer Jacks Team
    Was this answer helpful?0
Showing 1 to 1 of 1 (1 pages)

Write a review

Note: HTML is not translated!
Rating
Bad Good

Description

This Wiring Fits The Following Vehicles:

2015 - 2024    Ford, Transit-150, All Styles
2015 - 2024    Ford, Transit-250, All Styles
2015 - 2023    Ford, Transit-350, Single Rear Wheel w/148" Wheelbase

Includes all necessary parts required to completely install all brake controls. No other parts are necessary. This Kit Retains use of 4-Flat Connector while also giving you a 7-Way RV Plug

Each Kit includes:
  •   Plug and Play T-One Wiring Harness Connector
  • 4-Way to 7-Way adapter w/ mounting bracket and screws
  • Wiring Kit for 6 to 8 Brake Control Systems
  • Includes 25 ft. 12-2 Duplex Wire
  • (2) 30 Amp Circuit Breakers
  • Attaching Terminals and Ring Connectors

Part Numbers 118643 85343 20506 7012A
Brand Tekonsha
Warranty 1 Year
T-One Wiring
Installation
4-Way to 7-Way
Adapter Installation
Brake Control
Wiring Installation



Questions or Comments? Call 702-374-8999


Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control systems. You are here because you need a 7-Way Connector Plug on your vehicle. You are most likely about to purchase or already own a travel trailer or some other type of trailer thas has electric brakes. We have put together a kit for you that includes everything you need to get this job accomplished. After installing this kit on your vehicle the only thing you will need is an electric brake controller. Please scroll down to see our brake controllers.

Partial list of fitment years: 15 16 17 18 19 20 21 22 23 24 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
