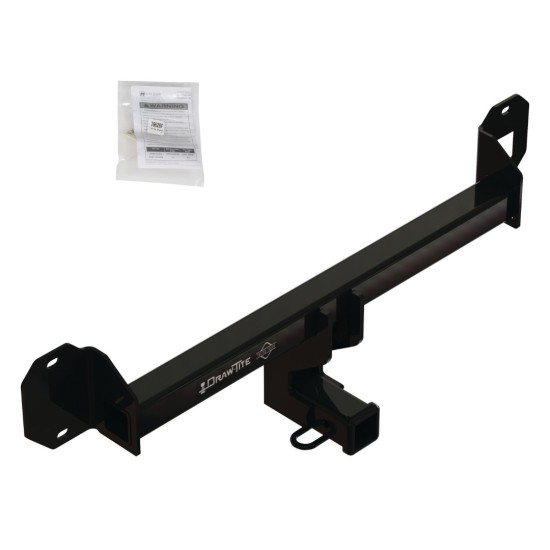

Trailer Tow Hitch For 16‑22 Mercedes GLC300 All Styles 2" Receiver Class 3
Model: 76628Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2016 - 2022 Mercedes-Benz, GLC300, All Styles
Trailer Hitch Specs:
Part Number | 76628 |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 4,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 675 lbs |
Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
$238 35 $366.13 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$366.13 $238 35
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76628
- UPC: 016118165500
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Description
Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles:
2016 - 2022 Mercedes-Benz, GLC300, All Styles
Trailer Hitch Specs:
Part Number | 76628 |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 4,500 lbs |
Max GTW w/ weight distribution | N/A |
Max Tongue Weight | 675 lbs |
Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 16 17 18 19 20 21 22 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Tow Hitch For 16-22 Mercedes GLC300 All Styles 2" Receiver Class 3 Install Notes
Installation Instructions for Mercedes-Benz GLC 300
Part Numbers:
- 76628
- 84628
- CQT76628
Tools Required:
- Safety Glasses
- Ratchet
- Torque Wrench
- Sockets: 8mm, 10mm, 18mm (deep well), T40 Torx bit, 12-point socket
- Flat Head Screwdriver
- Plastic Trim Tools
- Tin Snips
- Socket Extension
- Blue Thread Locker (Optional)
- Die Grinder
Weight Capacities:
- Weight Carrying:
- Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
- Max Tongue Weight: 675 lbs (306 kg)
- Weight Distributing:
- Not Applicable
Installation Time:
- Difficulty: Expert
Step-by-Step Instructions:
1. Remove Taillights:
- Open the trunk and remove the access panel to the taillights.
- Use an 8mm socket to remove 3 flange nuts per side.
- For additional clearance, remove the tie-down loop on the passenger side using a T40 Torx bit.
- Disconnect the wiring and remove the taillight assembly.
2. Remove Fascia:
- Use a 10mm socket to remove 2 bolts beneath the vehicle near the wheel wells (Figures 2 and 3).
- Remove 3 plastic rivets from each wheel well using a flathead screwdriver or plastic trim tools (Figure 4).
- Remove one rivet from beneath the wheel well cover on each side.
- Use a small screwdriver to remove an additional screw located behind the wheel well covering (Figure 5).
- Carefully unclip and detach the fascia, working from the rear wheel well trim toward the taillights and then along the bottom edge of the vehicle.
- Disconnect any wiring harnesses or sensors attached to the fascia and set it aside.
3. Lower Exhaust:
- Use a 12-point 3/8" socket to unbolt the exhaust from the bumper attachment on both sides.
4. Remove Bumper:
- Use an 18mm deep well socket to remove the 4 flange nuts securing the bumper.
- Retain these nuts for hitch installation.
5. Install Hitch:
- Position the hitch over the existing studs/bolts and align it as shown in Figure 1.
- Reinstall the bumper over the hitch and secure it using the existing flange nuts.
6. Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL10 fasteners to 76 lb-ft (103 N·m).
7. Adjust Heat Shield:
- Trim or push the heat shield forward to avoid interference with the hitch.
8. Trim Kick Sensor Bracket:
- Use a die grinder to remove the specified area of the sensor bracket (Figure 7).
9. Reinstall Exhaust:
- Reattach the exhaust hangers removed earlier.
10. Reinstall Fascia and Electrical:
- Place sensors back into their original positions and reconnect wiring harnesses.
- Gently reinstall the fascia, securing it with all fasteners removed earlier.
11. Reinstall Taillights:
- Reinstall the taillights and reconnect wiring.
- Replace any trim panels removed for access.
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- If the hitch is removed, plug all holes in the body panels to prevent water or exhaust entry.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow safety precautions when working beneath a vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the lower of the vehicle manufacturer’s towing capacity or the hitch's rated capacity.
