For 1989-1995 Geo Tracker Trailer Hitch + Wiring 4 Pin Fits All Models Curt 11128 56175 1-1/4 Tow Receiver

This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:

1989 - 1995 Geo Tracker All Models

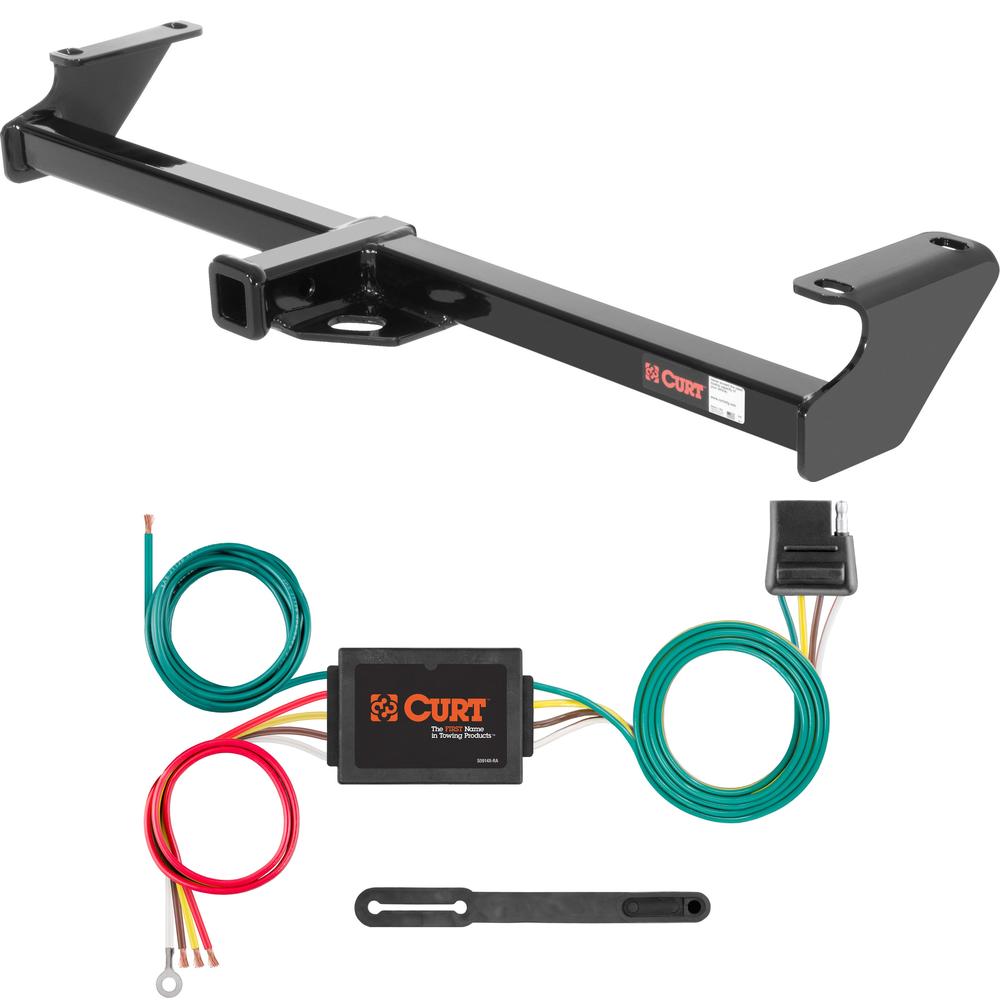

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:

• Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
• 3-to-2-Wire Taillight Converter (Requires Splicing)
• Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

1989, 1990, 1991, 1992, 1993, 1994, 1995

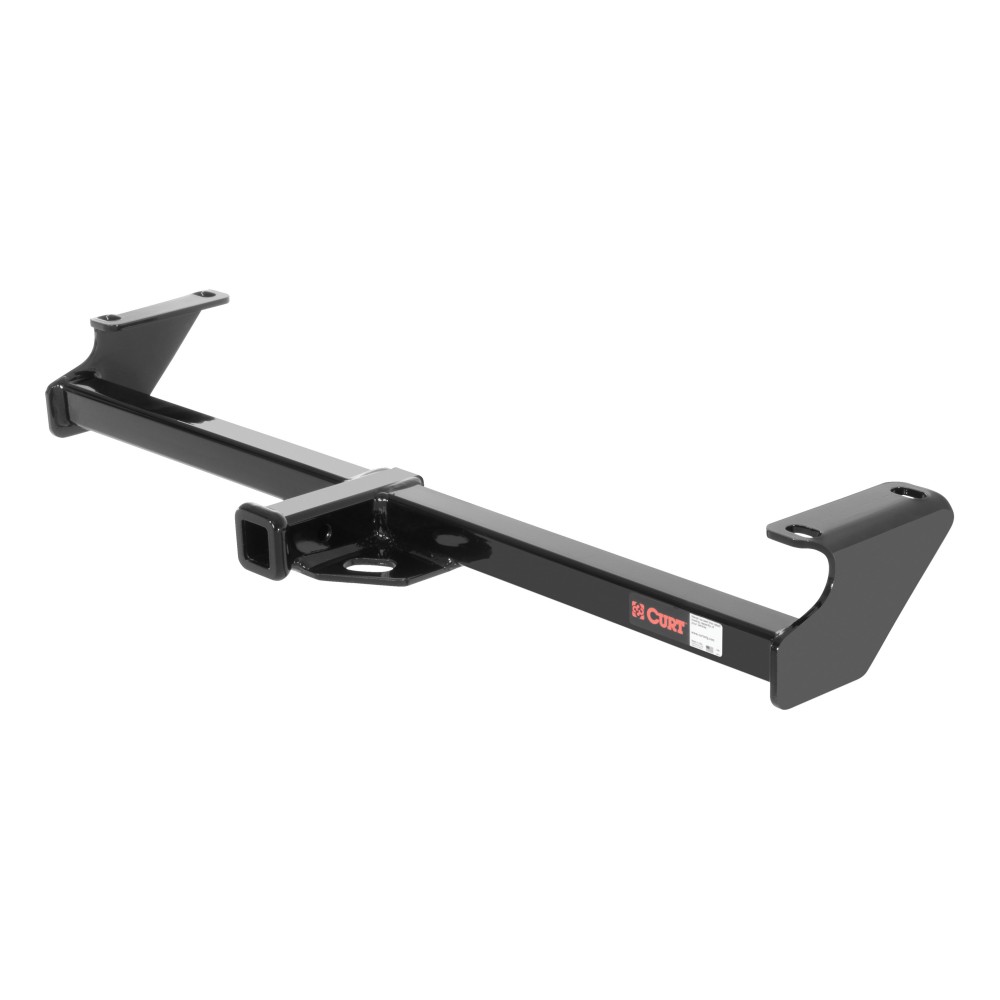

CURT 11128 Class 1 Trailer Hitch, 1-1/4-Inch Receiver

Manufactured by: Curt

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.

This particular class 1 hitch is designed to be a custom hitch for certain years of the Suzuki Sidekick and Geo Tracker (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.

With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).

Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

Features:

• Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

CURT 56175 Non-Powered 3-to-2-Wire Splice-in Tail Light Converter, 4-Pin Wiring Harness

Manufactured by: Curt

When your vehicle does not readily provide an electrical connection for hooking up your trailer, CURT electrical converts offer the solution Working tail lights on your trailer are absolutely essential any time you tow, and a converter provides an effective way to properly equip your vehicle for safe towing A CURT electrical converter, much like our custom vehicle-to-trailer wiring harnesses, provides a trailer connector on your vehicle by splicing into the vehicle's electrical system.

Electrical converters are designed to splice directly into the taillight wiring, rather than plugging into various sockets, giving them the nickname "taillight converters" Though it requires a little extra work compared to a custom wiring harness, a tail light converter offers a reliable, long-term connector solution This CURT electrical converter is designed to convert a 3-wire system to a 2-wire system and provides a standard 4-way flat connector socket to plug in your trailer.

It is designed to fit certain models of Acura, Audi, Buick, Chevrolet, Chrysler, Dodge, Eagle, Ford, Geo, Honda, Hyundai, Infiniti, Isuzu, Kia, Mazda, Mercedes, Mercury, Mitsubishi, Nissan, Oldsmobile, Peugeot, Plymouth, Pontiac, Saturn, Suzuki, Toyota, Volkswagen and Volvo (to verify your vehicle compatibility, see the CURT fitment guide at trailerjacks.com) This converter is made with cutting-edge surface-mount technology (SMT) circuitry, featuring electrical components that are mounted directly to the surface of the board rather than being inserted into a series of holes SMT circuits have longer life cycles, lower resistance, reduced heat generation and are more reliable than through-hole-mounted components..

Features:

• Converts 3-wire vehicle electrical system to standard 2-wire trailer wiring
• 4-way flat output connects tail lights, brake lights and turn signals
• Constructed with SMT circuitry for better performance and durability
• Color-coded wires for easier installation
• Snap locks included for fast, secure splicing
• No heavy-duty flasher or direct battery connection required
• Dust cover included to keep connector clean when not in use
