$294.34
  • Stock: In Stock
  • Brand: Curt
  • Model: 15300 55350-CH1117

Applies to this product only

This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:

1994 - 1996 Ford Bronco Full Size

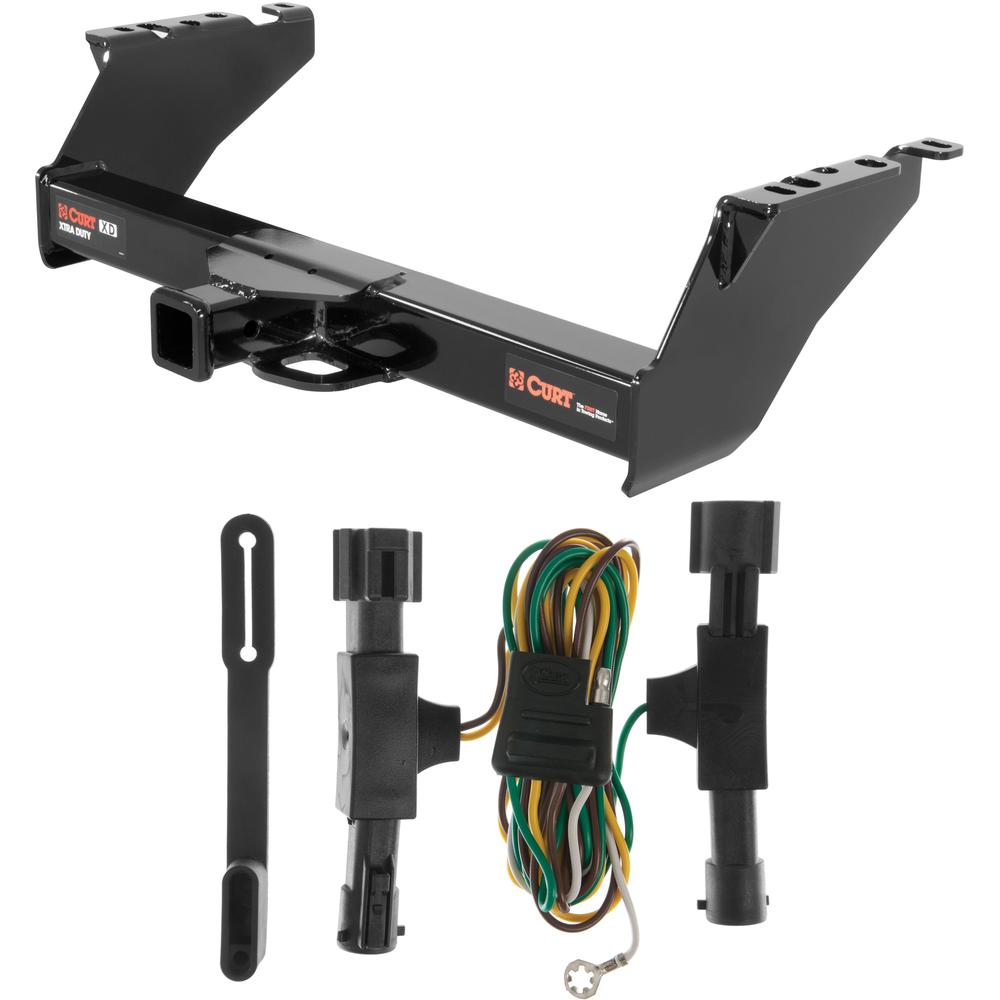

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:

  • Xtra Duty Class 5 Hitch, 2" (Drilling Required)
  • Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
  • Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

1994, 1995, 1996


CURT 15300 Xtra Duty Class 5 Trailer Hitch, 2-In Receiver

Manufactured by: Curt

When we came to the limits of towing capacity, we wanted to know what else was out there What could we discover off the beaten path? So, we kept going CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate.

They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs.

and an extra-high tongue weight capacity of 2,400 lbs It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount It is designed to be a custom-fit trailer hitch for certain years of the Dodge D100, D150, D200, D250, C300, D350, Ram 1500, 2500 or 3500 and Ford Bronco, F100, F150, F250, F250 HD or F350 (to verify compatibility with your vehicle, see application info).

For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch It is rated for 17,000 lbs WD and 2,400 lbs.

WDTW In our drive to create a more powerful hitch, CURT has not neglected the finer details Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish.

To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat They come with grade-8 mounting hardware for solid installation..

Features:

  • Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
  • Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Features wide safety chain openings for heavy-duty hooks
  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

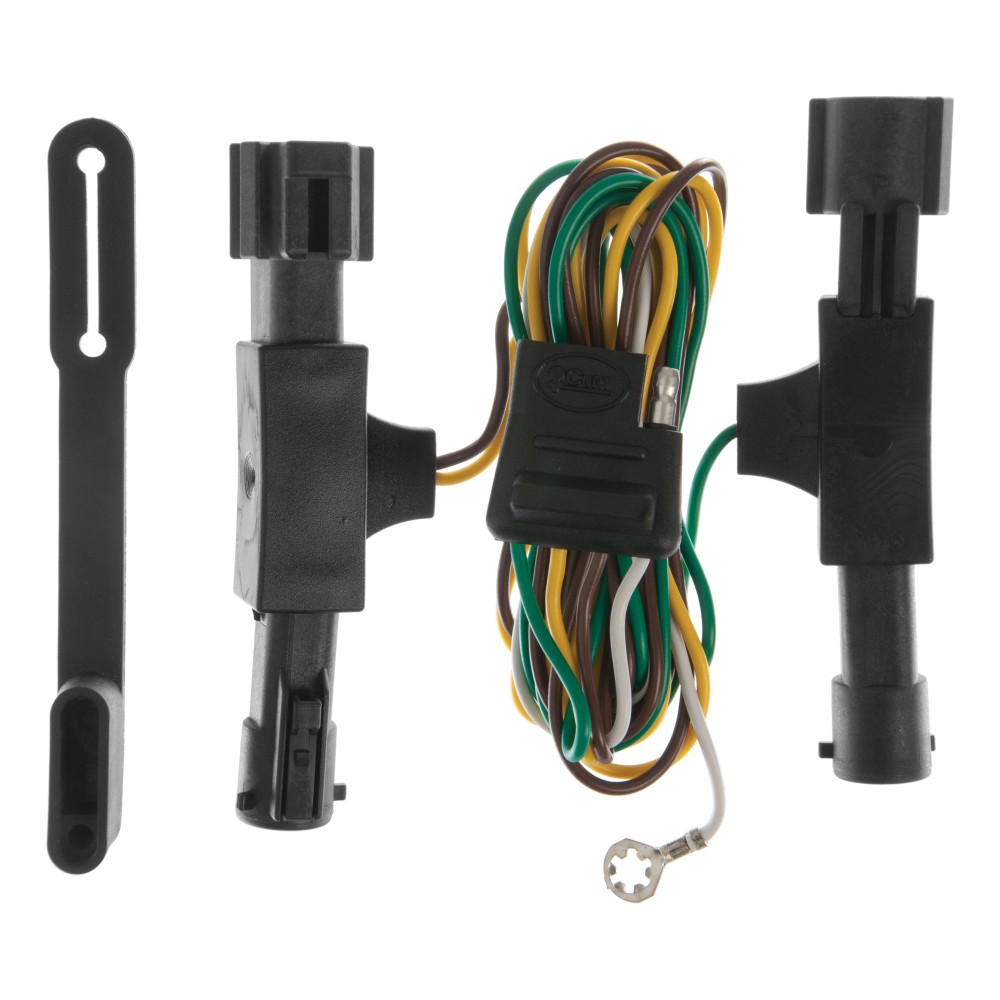

CURT 55350 Vehicle-Side Custom 4-Pin Trailer Wiring Harness

Manufactured by: Curt

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.

Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Bronco (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.

You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.

CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..

Features:

  • Plugs into vehicle tail light assembly to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or call us at 877-869-6690 for expert advice and personalized service.
Default
UPC 612314035434, 612314553501
Item Weight 58.050, 1.000
Country of Manufacture US
Main Body Shape Square
Receiver Tube Size 2 IN
WC / TW (Pounds) 2,400 LB / 16,000 LB
WD / WDTW (Pounds) 17,000 LB / 2,400 LB
Weight Carrying Capacity (Pounds) 16,000 LB
WC Tongue Weight (Pounds) 2,400 LB
Installation Difficulty Advanced, Novice
Installation Time Exact (Minutes) 60, 5
Weight Distribution (Pounds) 17,000 LB
Note 1 Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
WD Tongue Weight (Pounds) 2,400 LB
Note 2 Includes strong, grade-8 installation hardware
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts), One-Year Limited Warranty
