For 1995-2001 Ford Explorer Trailer Hitch + Wiring 5 Pin Except oversized spare tire & Sport Models Curt 13033 2 inch Tow Receiver

This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:

1995 - 2001 Ford Explorer Except oversized spare tire & Sport Models

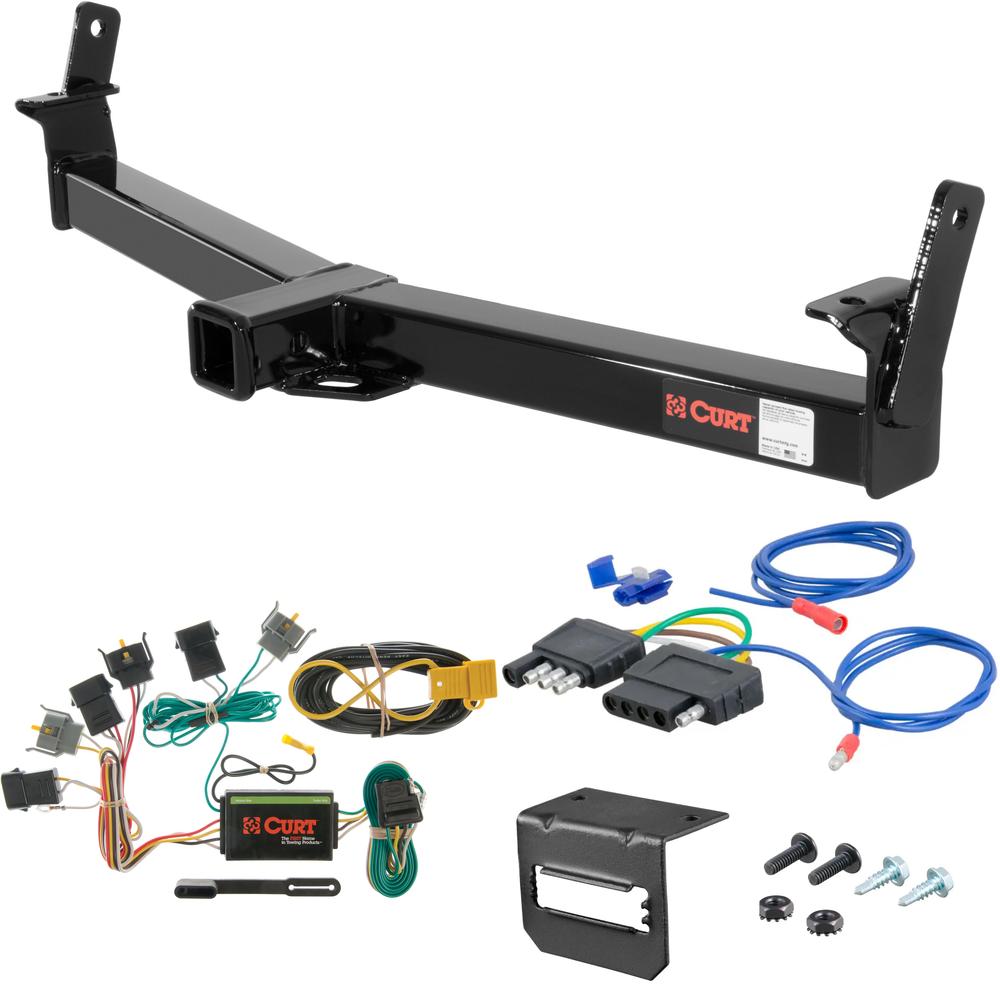

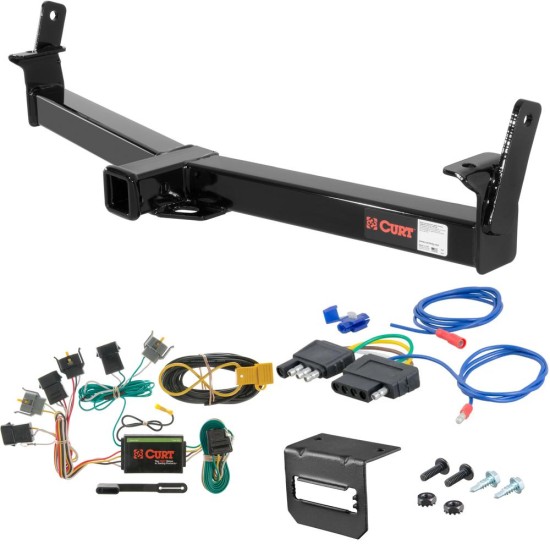

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:

• Class 3 Hitch, 2" (Drilling Required)
• Custom Wiring, 4-Flat (Plug & Play), Battery Connection Required
• 4-Way to 5-Way Flat Install Kit for Boat Trailer Surge and Connector Mounting Bracket for 5-Way Flat
• Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

1995, 1996, 1997, 1998, 1999, 2000, 2001

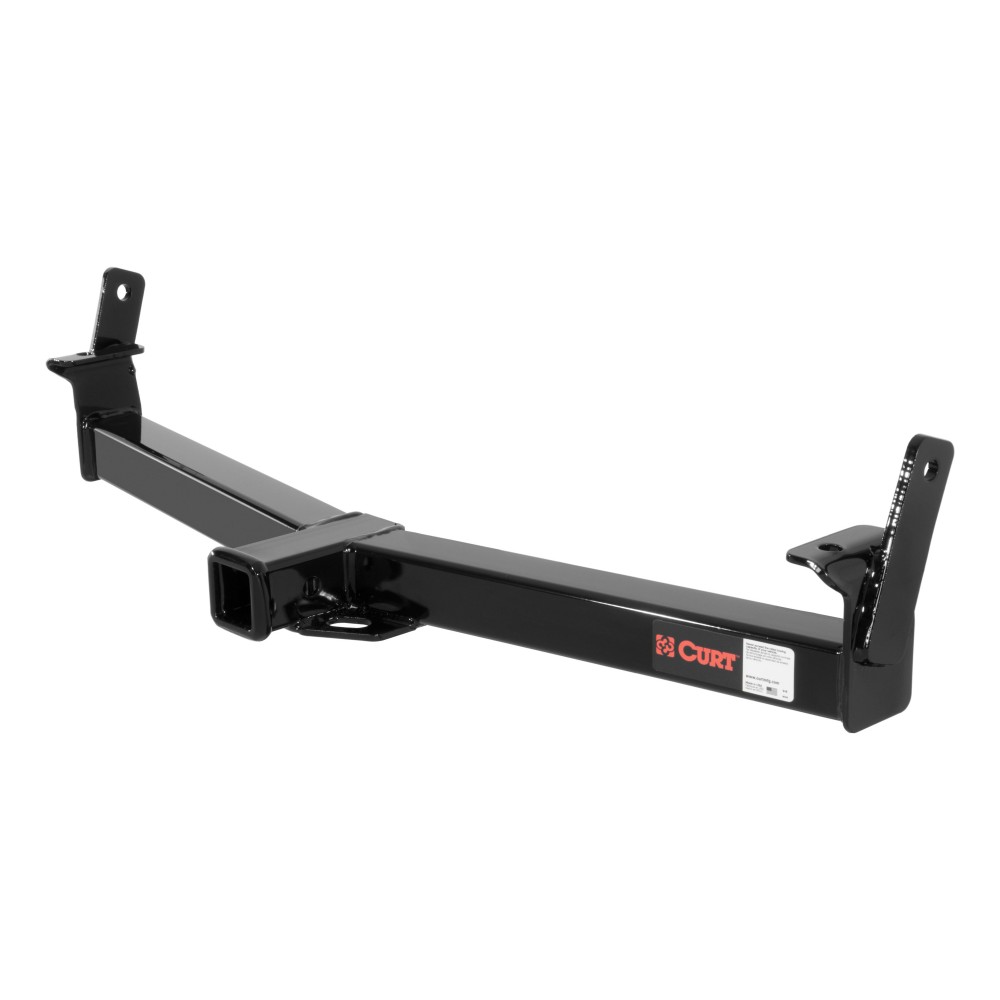

CURT 13033 Class 3 Trailer Hitch, 2-Inch Receiver, Square Tube Frame

Manufactured by: Curt

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.

Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford Explorer, Mazda Navajo and Mercury Mountaineer (see application info to verify vehicle compatibility).

It provides a weight carrying capacity of 5,000 lbs GTW and 500 lbs TW.

It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 600 lbs WDTW.

CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

Features:

• Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
• Compatible with weight distribution hitch (6,000 lbs. WD / 600 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

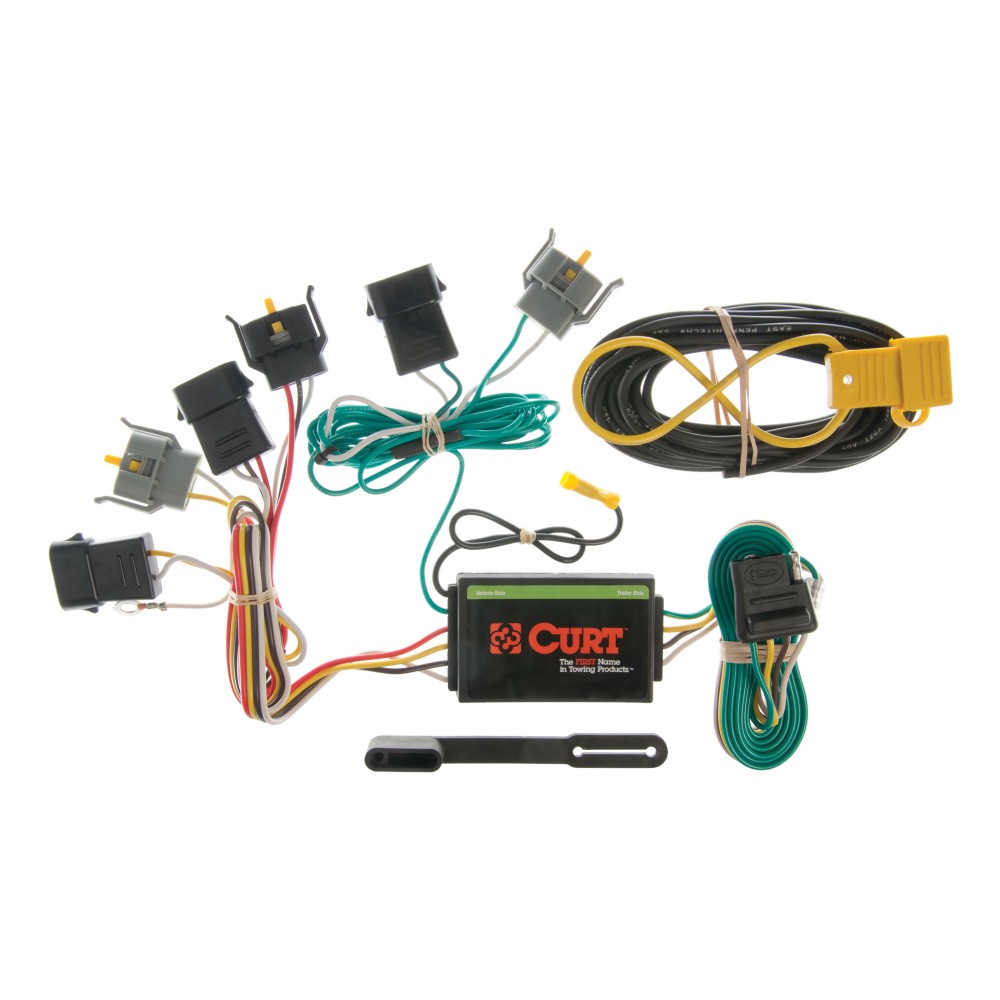

CURT 55345 Vehicle-Side Custom 4-Pin Trailer Wiring Harness

Manufactured by: Curt

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.

Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Explorer and Mercury Mountaineer (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.

You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.

CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..

Features:

• Plugs into vehicle tail light assembly to provide a 4-way flat socket
• Simple plug-and-play design eliminates the need for cutting or splicing
• 4-way flat output connects tail lights, brake lights and turn signals
• Equipped with tail light converter for vehicle-trailer compatibility
• Constructed with SMT circuitry for better performance and durability
• Dust cover included to keep connector clean when not in use
• Backed by a limited one-year warranty

CURT 57187 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes and CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat

Manufactured by: Curt

CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around; they can get tangled up with cargo and even damaged An electrical connector left to hang off the back end of your vehicle is an even greater hazard.

Secure, protect, and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch using the included hardware.

This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 5-way flat trailer plug It is specifically intended for boat trailers with surge brakes, adding in a fifth wire for the reverse lights and allowing your vehicle's 4-way flat to easily plug into your boat trailer 5-way flat This boat trailer wiring adapter features durable molded plastic construction and requires some splicing.

All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..

Features:

• Adapts vehicle 4-way flat to plug into boat trailer 5-way flat
• Intended for boat trailers with surge brakes
• Fifth wire splices in to connect reverse lights
• Adapts 4-way flat vehicle socket to fit 5-way flat trailer plugs
• Durable molded plastic housing resists corrosion
• Securely mounts a 5-way flat connector socket
• Allows for attachment to the vehicle or trailer hitch
• Constructed from high-strength steel
• Protected by a durable black powder coat finish
