For 1995-1999 Chevrolet Tahoe 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Prodigy P3 Brake Controller + Plug & Play Adapter By Reese Towpower

This Bundle Fits The Following Vehicles:

1995-1999 Chevrolet Tahoe

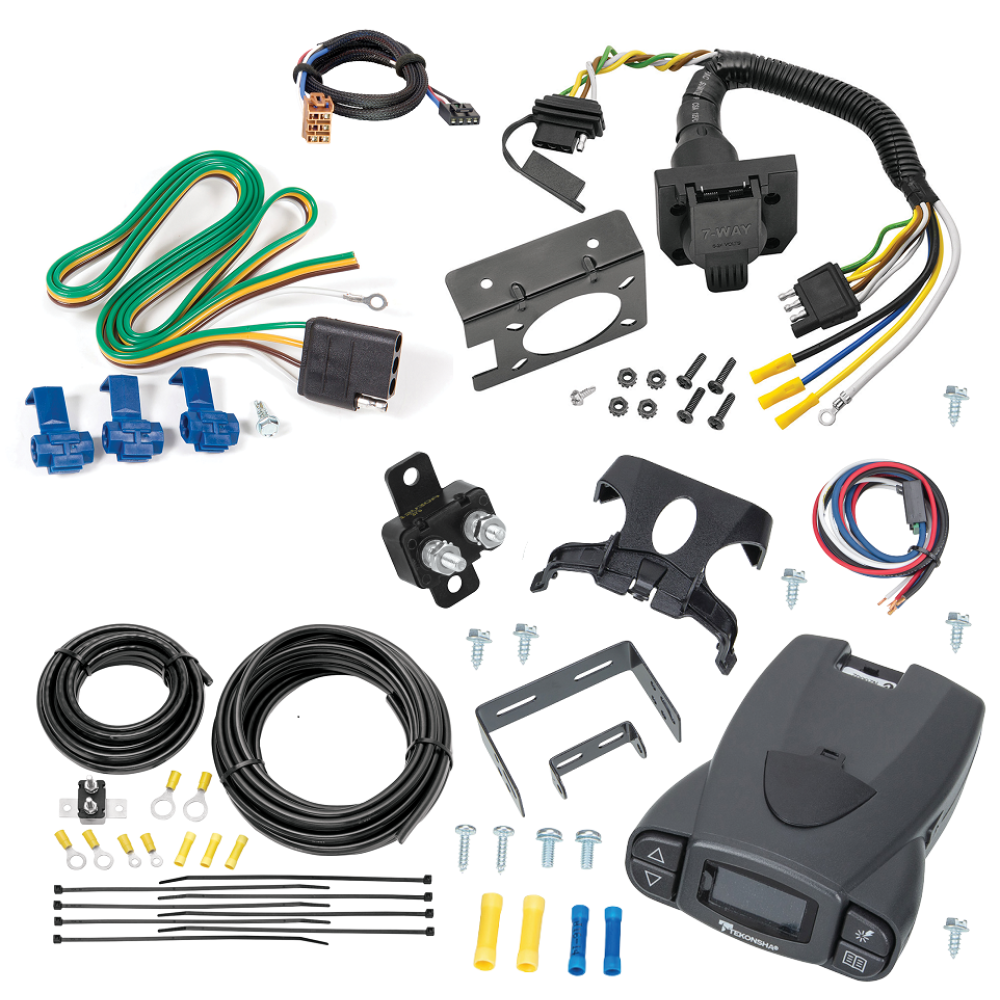

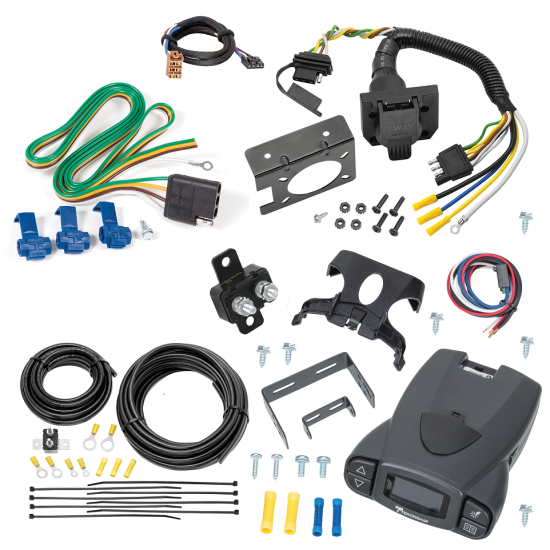

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Prodigy P3 Brake Control
• Plug & Play BC Adapter

List of fitment years: 1995, 1996, 1997, 1998, 1999

Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end and includes 48 In. of wire with splice connectors. The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems.

• Molded 4-Flat vehicle connector
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance.
• Rated for 7.5 amps per circuit
• Conforms to SAE spec. J1128 standard

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to upgrade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two-port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4 way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory-installed appearance
• Built with heavy-duty rugged materials
• Included 4-Flat dust cover and heavy-duty spring on 7-Way connector
• Butt connectors pre-attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12, and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Prodigy P3® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha

P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.

• 5 storable setting options for pulling different trailers or preferences of multiple drivers.
• A distinct, easy-to-read LCD display with multiple screen color options.
• Up-Front controls provide easy access to all P3 features.
• Easy to understand diagnostics show output current, battery, brake, and output voltage.
• A flashing red warning system alerts the user to No Trailer Brake situations.
• Select Electric over Hydraulic or Electric trailer brake mode.
• Screen information display in English, French, or Spanish.
• The Original Boost feature allows for different levels of customized braking.
• Compact, dash-hugging design.
• Integrated Plug-N-Play port for 2-plug adapters.
• Snap-in mounting clip allows the user to remove and store the control when not in use.
• Electric trailer brake control for up to 4 braking axles.
• Limited Lifetime Warranty

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
