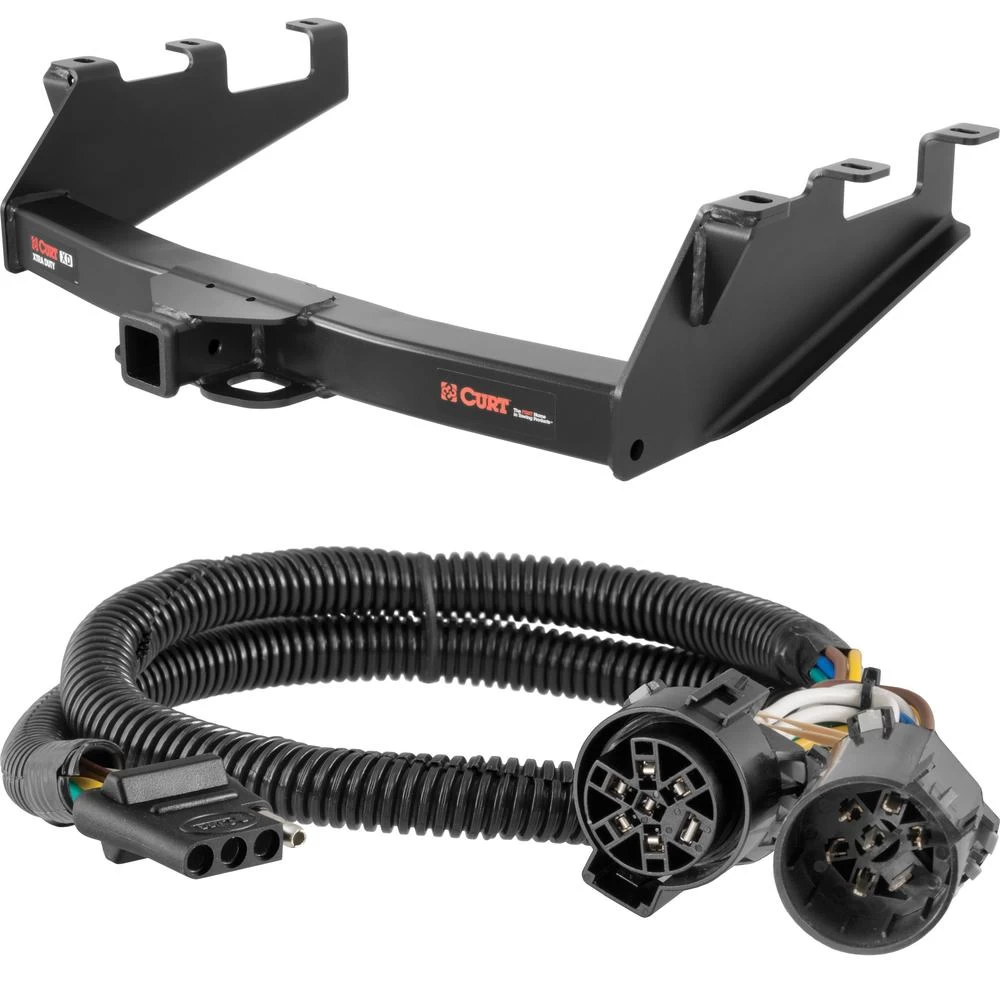

For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver

For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
For 2001-2002 GMC Sierra 1500 HD Trailer Hitch + Wiring 4 Pin Fits All Models Curt 15323 55384 2 inch Tow Receiver
$370.07
  • Stock: In Stock
  • Brand: Curt
  • Model: 15323 55384-CH2035

Applies to this product only

This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:

2001 - 2002 GMC Sierra 1500 HD All Models


This Trailer Tow Hitch + 4-Flat Includes the Following Parts:

  • Xtra Duty Class 5 Hitch, 2" (Easy Bolt-On, No Drilling)
  • Replacement OE 4-Way Flat Socket (T's into USCAR)
  • Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2001, 2002


CURT 15323 Xtra Duty Class 5 Trailer Hitch, 2-In Receiver

Manufactured by: Curt

When we came to the limits of towing capacity, we wanted to know what else was out there What could we discover off the beaten path? So, we kept going CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate.

They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs.

and an extra-high tongue weight capacity of 2,400 lbs It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount It is designed to be a custom-fit trailer hitch for certain years of the Chevy Silverado 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 and GMC Sierra 1500, 1500 Classic, 1500 HD, 1500 HD Classic or 2500 (to verify compatibility with your vehicle, see application info).

For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch It is rated for 17,000 lbs WD and 2,400 lbs.

WDTW In our drive to create a more powerful hitch, CURT has not neglected the finer details Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish.

To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat They come with grade-8 mounting hardware for solid installation..

Features:

  • Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
  • Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Features wide safety chain openings for heavy-duty hooks
  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

CURT 55384 Replacement Vehicle-Side Custom USCAR 4-Pin Trailer Wiring Harness

Manufactured by: Curt

Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection.

They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Though this special socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.

Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket.

It is designed to be a custom wiring option for a variety of vehicles (see application info to verify fitment with your vehicle) It comes with a dust cover to keep the connector socket clean when not in use..

Features:

  • Replacement OE 4-Way Flat Socket (T's into USCAR)
  • Plugs into USCAR connection to add 4-way flat and retain use of existing socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Dust cover included to keep connector clean when not in use
  • Slit loom keeps wires contained and well protected
  • Backed by a limited one-year warranty

Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or call us at 877-869-6690 for expert advice and personalized service.
Default
UPC 612314153237, 612314553846
Item Weight 68.600, 1.000
Country of Manufacture US
Main Body Shape Square
Receiver Tube Size 2 IN
WC / TW (Pounds) 2,400 LB / 16,000 LB
WD / WDTW (Pounds) 17,000 LB / 2,400 LB
Weight Carrying Capacity (Pounds) 16,000 LB
WC Tongue Weight (Pounds) 2,400 LB
Installation Difficulty Novice
Installation Time Exact (Minutes) 30, 10
Weight Distribution (Pounds) 17,000 LB
Note 1 Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
WD Tongue Weight (Pounds) 2,400 LB
Note 2 Includes strong, grade-8 installation hardware
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts), One-Year Limited Warranty
