For 2005-2011 Mercury Mariner 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Prodigy P3 Brake Controller By Tekonsha

This Bundle Fits The Following Vehicles:

2005-2011 Mercury Mariner

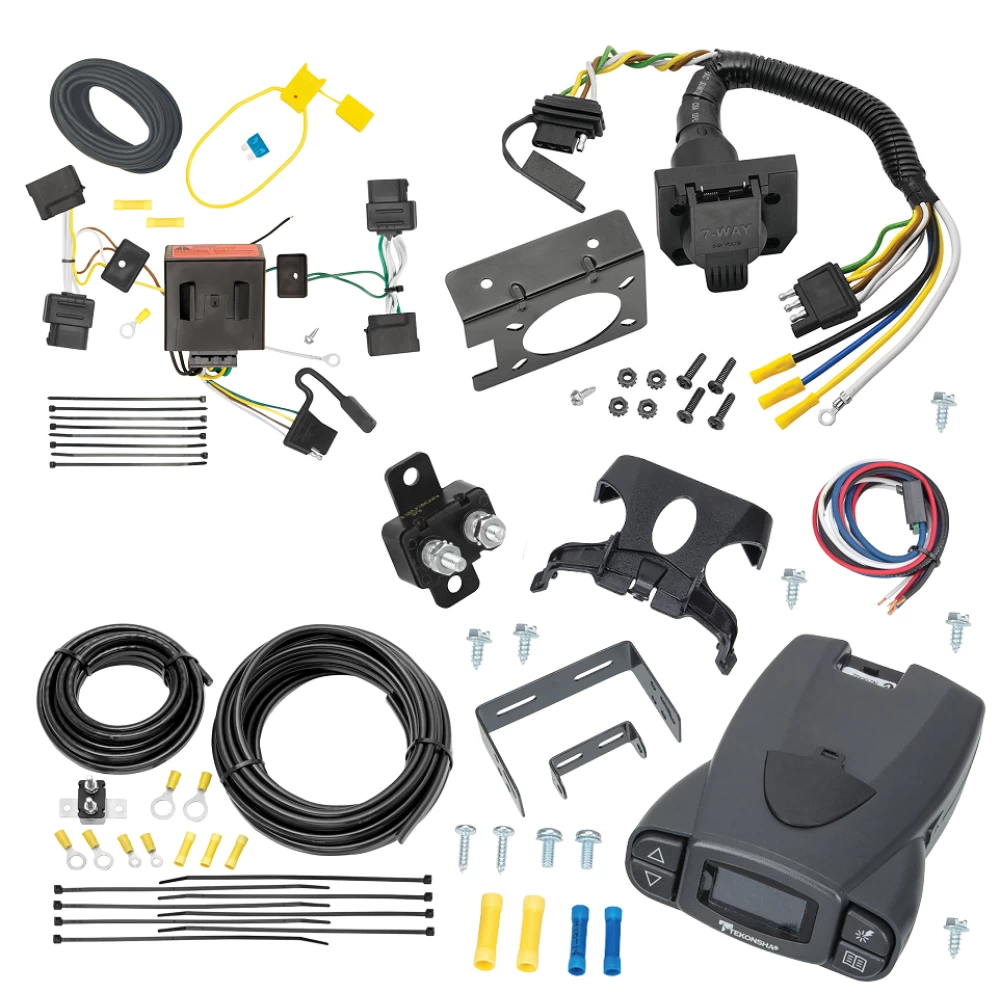

This Bundle Includes the Following Parts:

• 7-Way RV Wiring

• Tekonsha Prodigy P3 Brake Control

List of fitment years:

2005, 2006, 2007, 2008, 2009, 2010, 2011

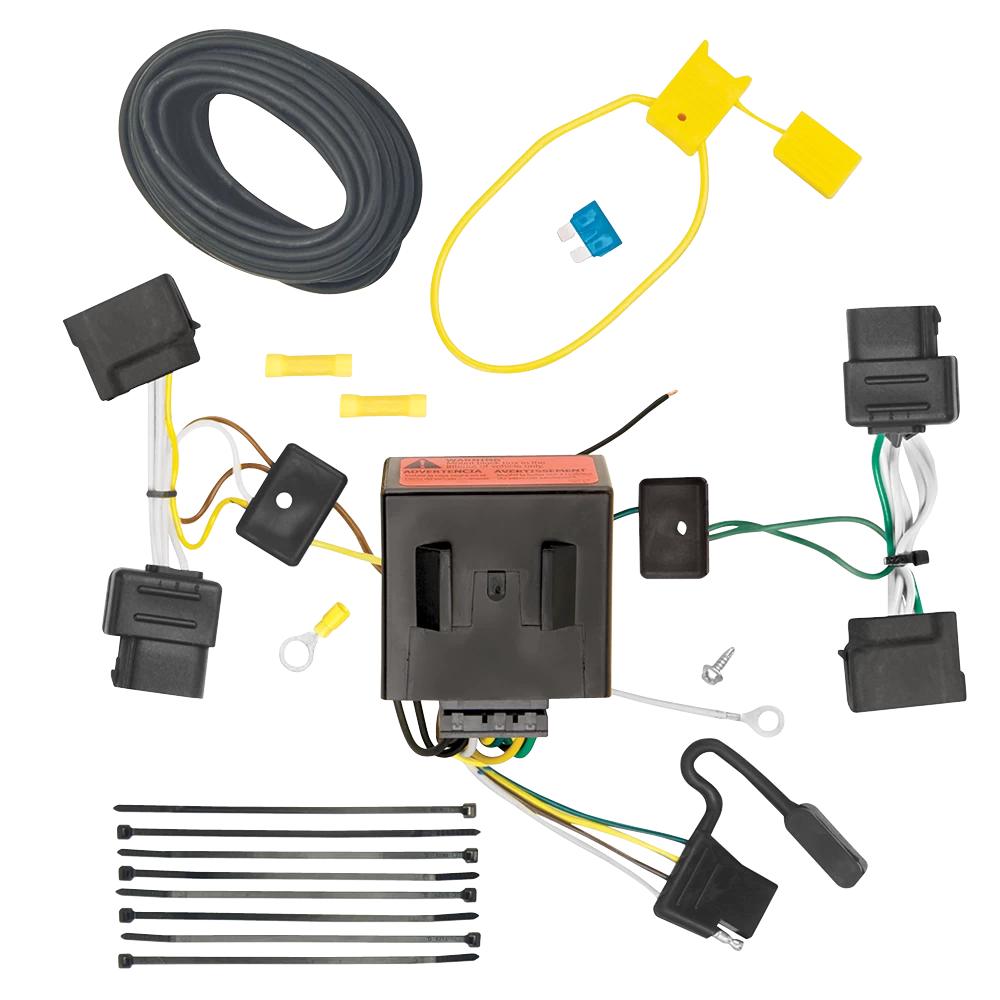

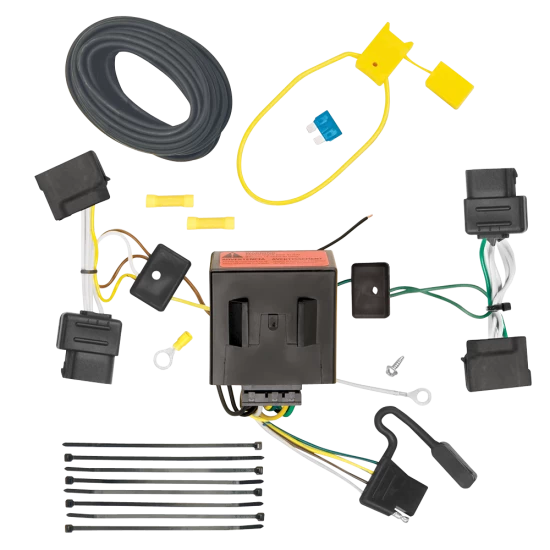

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module

Manufactured by: Tekonsha

Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your setup. For over 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play

• Stop/Turn Circuit Capacity Of 4.2 Amps

• Taillight Circuit Capacity Of 7.5 Amps

• Solid, Weatherproof, One-Piece Construction

• No Cutting, Splicing, Or Taping Of Vehicle Wires

• Includes Converter Where Needed

Wiring Adapter, 7-Way Flat to 4-Way Flat

Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4-way flat to 7-Way round blade

• Sealed connection increases protection against moisture & corrosion

• Low profile design provides factory-installed appearance

• Built with heavy-duty rugged materials

• Included 4-Flat dust cover and heavy-duty spring on 7-Way connector

• Butt connectors pre-attached for quicker wiring

• Mounting bracket included

• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only

Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp

Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Prodigy P3® Proportional Brake Controller for Trailers with 1-4 Axles, Black

Manufactured by: Tekonsha

P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.

• 5 storable setting options for pulling different trailers or preferences of multiple drivers.

• A distinct, easy-to-read LCD display with multiple screen color options.

• Up-Front controls provide easy access to all P3 features.

• Easy to understand diagnostics show output current, battery, brake, and output voltage.

• A flashing red warning system alerts the user to No Trailer Brake situations.

• Select Electric over Hydraulic or Electric trailer brake mode.

• Screen information display in English, French or Spanish.

• The Original Boost feature allows for different levels of customized braking.

• Compact, dash-hugging design.

• Integrated Plug-N-Play port for 2-plug adapters.

• Snap-in mounting clip allows the user to remove and store the control when not in use.

• Electric trailer brake control for up to 4 braking axles.

• Limited Lifetime Warranty
