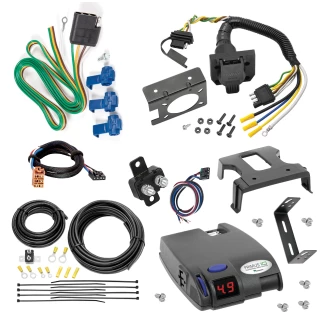

For 2006-2007 Hummer H3 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Primus IQ Brake Controller + Plug & Play Adapter By Reese Towpower

This Bundle Fits The Following Vehicles:

2006-2007 Hummer H3

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Primus IQ Brake Control
• Plug & Play BC Adapter

List of Fitment Years:

2006, 2007

Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire

Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end and includes 48 in. of wire with splice connectors. The included splice connectors make adding a 4-flat connector easy for most vehicle wiring systems.

• Molded 4-Flat vehicle connector
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance
• Rated for 7.5 amps per circuit
• Conforms to SAE spec. J1128 standard

Wiring Adapter, 7-Way Flat to 4-Way Flat

Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to upgrade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4-way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy-duty rugged materials
• Included 4-Flat dust cover and heavy-duty spring on 7-Way connector
• Butt connectors pre-attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only

Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp

Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Primus® IQ, Proportional Brake Controller for Trailers with 1-3 Axles, Grey

Manufactured by: Tekonsha

A totally proportional electric trailer brake control, the new Primus®IQ is self-leveling so no level adjustment is necessary.

Utilizing the primary sensor technology from Prodigy®, the Primus®IQ now includes the Boost feature that gives users the ability to apply more initial trailer braking when towing heavier trailers. It works proportionally in reverse for backing into tough spots and includes a snap-in dash mounting clip and removable electrical connector that allows the unit to be quickly stored when not in use. You will appreciate the digital readout depicting a secure electrical connection, the amount of voltage delivery to the trailer brakes, and diagnostic features incorporated in the LED display.

• Utilizes Plug-N-Play port for 2-plug adapters
• Self-diagnostics features will illuminate LED readout when issues occur
• Includes a Boost feature
• Works proportionally in reverse
• Snap-in dash mounting clip and hardware included
• Digital LED readout
• Limited lifetime warranty

Trailer Brake Controller Wiring Harness

Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
