For 2007-2014 Toyota Tundra 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Voyager Brake Controller + Plug & Play Adapter By Reese Towpower

This Bundle Fits The Following Vehicles:

• 2007-2014 Toyota Tundra

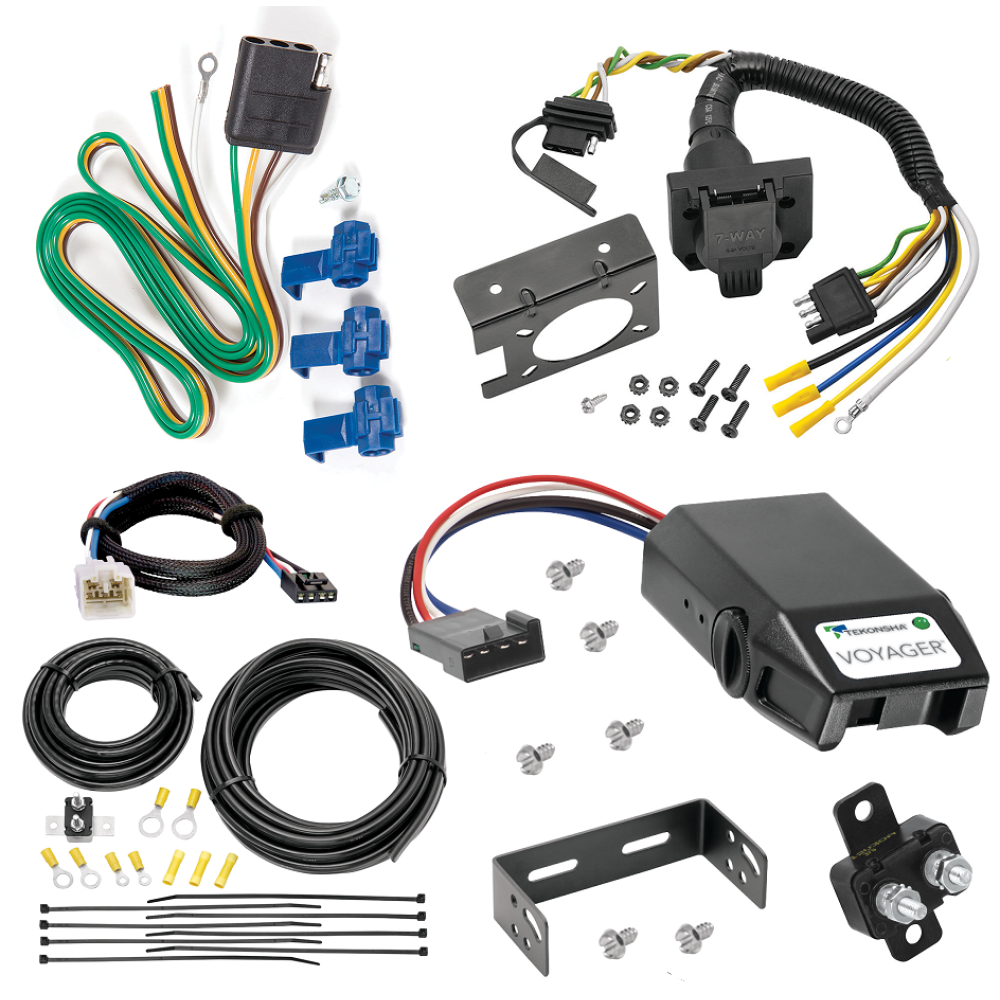

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Voyager Brake Control
• Plug & Play BC Adapter

List of fitment years:

2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In. of wire with splice connectors. The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems.

• Molded 4-Flat vehicle connector
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance.
• Rated for 7.5 amps per circuit
• Conforms to SAE spec. J1128 standard

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4 way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Voyager® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha

The Voyager® incorporates patented braking sensor by Tekonsha and is the best value you will find for smooth and secure trailer braking. It is compact size and features, like a bicolored LED brake monitor (to assure a complete connection to trailer brakes and give an indication of relative braking power being applied) make the Voyager® extremely versatile. Voyager® minimizes interference with tow vehicle electrical systems, uses a four wire hook up, has a broad setting range and is compatible with most any vehicle.

• Broad control range makes setting quick and easy.
• As braking power is applied, the LED changes color gradually from green, completed circuit, to red, to indicate relative braking power.
• Advanced electronics minimize false braking for smoother ride.
• Electric trailer brake control for up to 4 braking axles.
• Plug-N-Play feature allows quick and easy connection.
• 5 year limited warranty.

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
