For 2007-2010 Dodge Ram 3500 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Voyager Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

• 2007-2010 Dodge Ram 3500

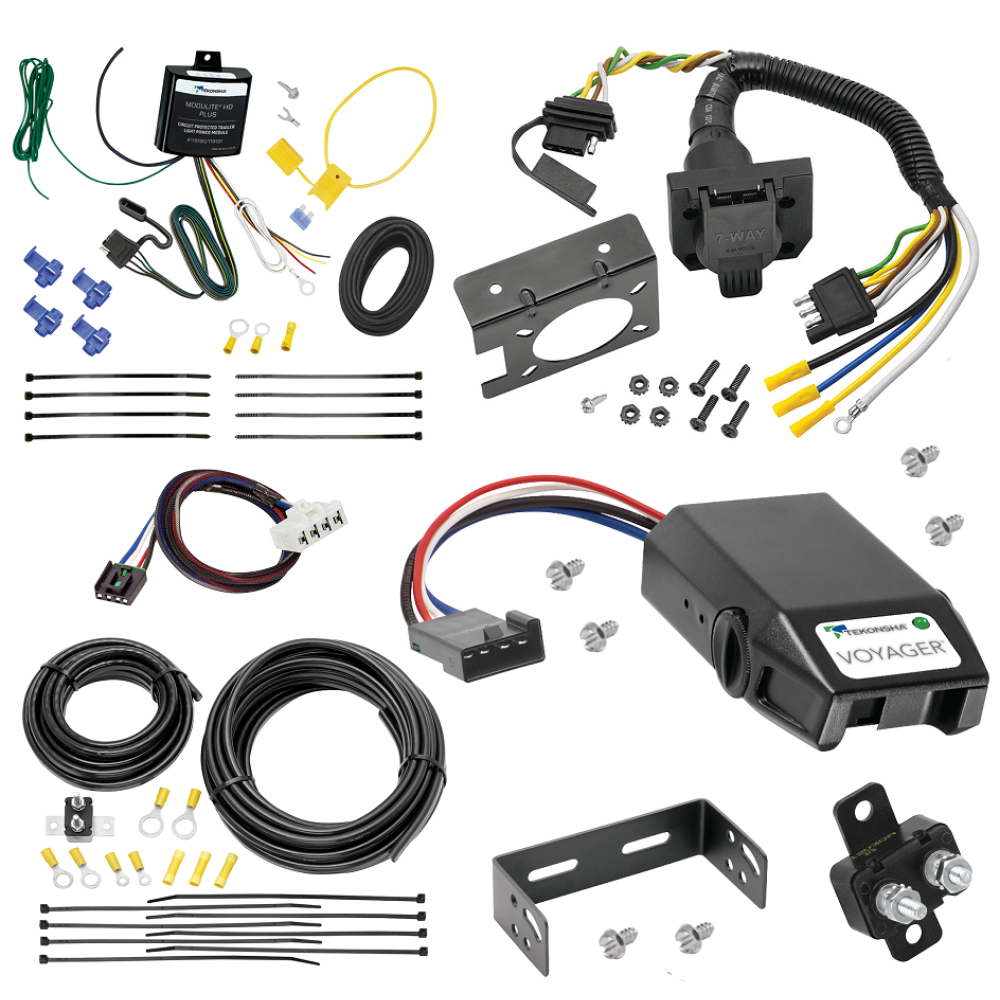

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Voyager Brake Control
• Plug & Play BC Adapter

List of fitment years:

2007, 2008, 2009, 2010

ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha

• The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
• Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
• Will work with either LED/Incandescent bulbs (vehicle & trailer)
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• The trailer brakes will override the hazard lamps when the brake is activated
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
• Interprets/decodes multiplex signal inputs (i.e. Honda, Toyota, Ford, etc.)
• Will not work with vehicles with low-side switch
• Can be used on a 2 wire or 3 wire system
• All solid-state components in potted encapsulation
• Includes integrated protective cover

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

• REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Voyager® Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha

• The Voyager® incorporates patented braking sensor by Tekonsha and is the best value you will find for smooth and secure trailer braking. It is compact size and features, like a bicolored LED brake monitor (to assure a complete connection to trailer brakes and give an indication of relative braking power being applied) make the Voyager® extremely versatile.
• Voyager® minimizes interference with tow vehicle electrical systems, uses a four wire hook up, has a broad setting range and is compatible with most any vehicle.
• Broad control range makes setting quick and easy.
• As braking power is applied, the LED changes color gradually from green, completed circuit, to red, to indicate relative braking power.
• Advanced electronics minimize false braking for smoother ride.
• Electric trailer brake control for up to 4 braking axles.
• Plug-N-Play feature allows quick and easy connection.
• 5 year limited warranty.

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
