For 2010-2020 Lexus GX460 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Plug & Play Adapter By Reese Towpower

This Bundle Fits The Following Vehicles:

2010-2020 Lexus GX460

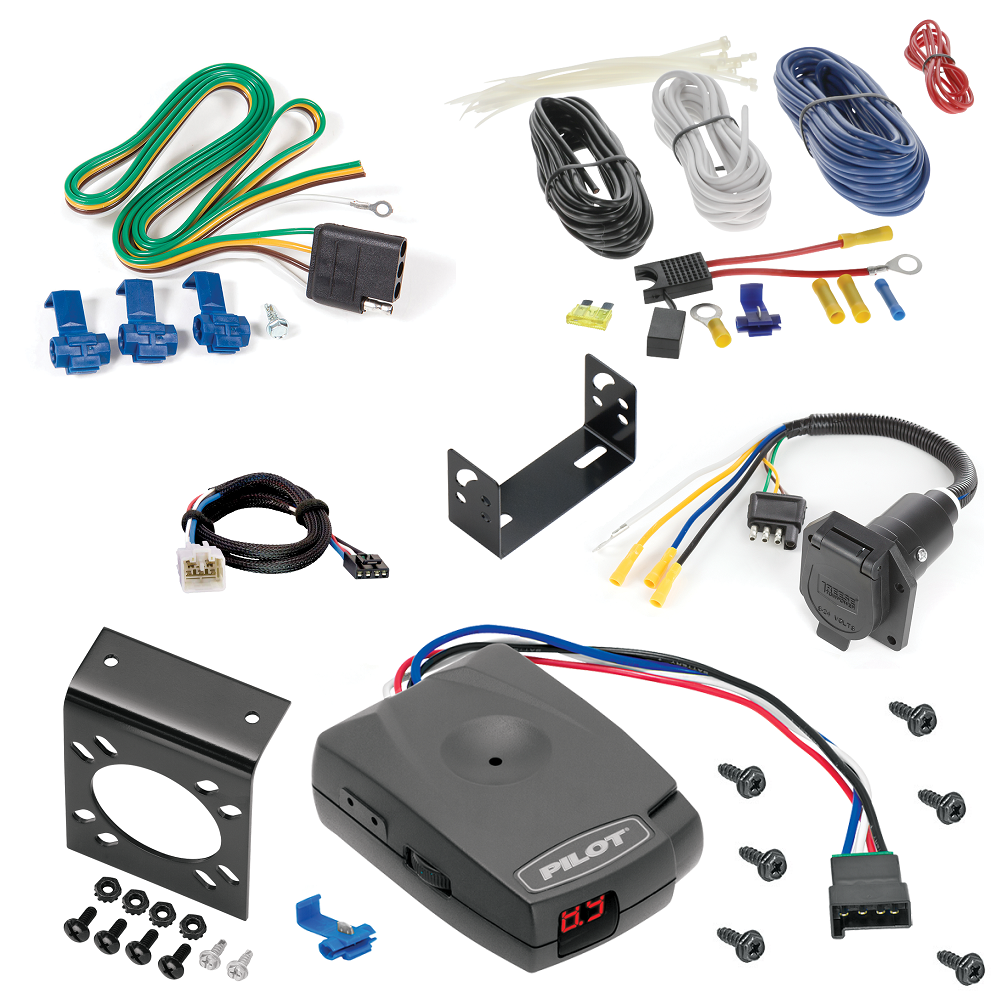

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Pro Series Pilot Brake Control
• Plug & Play BC Adapter

List of fitment years: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In. of wire with splice connectors. The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems.

• Molded 4-Flat vehicle connector
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance.
• Rated for 7.5 amps per circuit
• Conforms to SAE spec. J1128 standard

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

• Provide versatility in going from 4-Flat to 7-Way standard plug
• Pre-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

• OEM Style wiring harness
• Easy to install
• 1-3 axles

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

• Large easy to read dual digital display shows:
• Properly wired control
• Voltage output to brakes (vs. a percentage)
• Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
