For 2010-2017 Chevy Equinox Trailer Hitch + Wiring 5 Pin Fits All Models Curt 13591 2 inch Tow Receiver

This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:

2010 - 2017 Chevrolet Equinox All Models

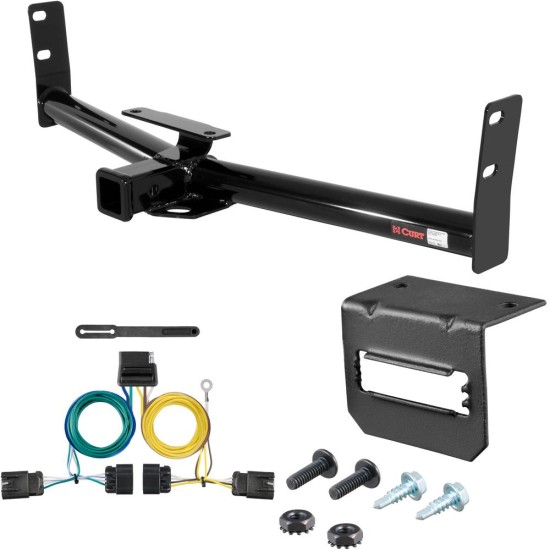

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:

• Class 3 Hitch, 2" (Easy Bolt-On, No Drilling)
• Custom Wiring Harness, 5-Way Flat Output (Plug & Play)
• Connector Mounting Bracket for 5-Way Flat
• Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

CURT 13591 Class 3 Trailer Hitch, 2-Inch Receiver

Manufactured by: Curt

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.

Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Chevy Equinox, GMC Terrain, Pontiac Torrent and Saturn Vue (see application info to verify vehicle compatibility).

It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.

It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs WD and 400 lbs WDTW.

CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

Features:

• Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
• Compatible with weight distribution hitch (4,000 lbs. WD / 400 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

CURT 56594 Vehicle-Side Custom 5-Wire Trailer Wiring Harness

Manufactured by: Curt

A CURT custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring Most vehicles do not come ready to tow Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector.

This is where CURT's custom wiring harnesses come into play Custom wiring harnesses plug into your vehicle's electrical system using original equipment (OEM) connectors Our custom wiring harnesses use two or more OEM connectors to plug in at the taillight assembly and provide a standard trailer socket to allow a trailer to be plugged into your vehicle's power system.

This harness provides a 5-way flat connector socket and is designed to be a custom wiring harness for certain years of the GMC Terrain or Chevrolet Equinox (to verify your vehicle compatibility, see the CURT fitment guide at trailerjacks.com) CURT custom wiring harnesses are long-lasting and quick to install They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind..

Features:

• Plugs into vehicle tail light assembly to provide a 5-way flat socket
• Simple plug-and-play design eliminates the need for cutting or splicing
• 5-way flat connects tail lights, brake lights, turn signals and reverse lights
• Dust cover included to keep connector clean when not in use
• Backed by a limited one-year warranty

CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat

Manufactured by: Curt

CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.

An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket.

It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch, using the included hardware..

Features:

• Securely mounts a 5-way flat connector socket
• Allows for attachment to the vehicle or trailer hitch
• Constructed from high-strength steel
• Protected by a durable black powder coat finish
