For 2011-2024 Audi Q5 7 Pin Trailer Wiring RV 7 Way Trailer Plug w/ Zero Contact ZCI Module By Tekonsha

This Bundle Fits The Following Vehicles:

2011-2024 Audi Q5

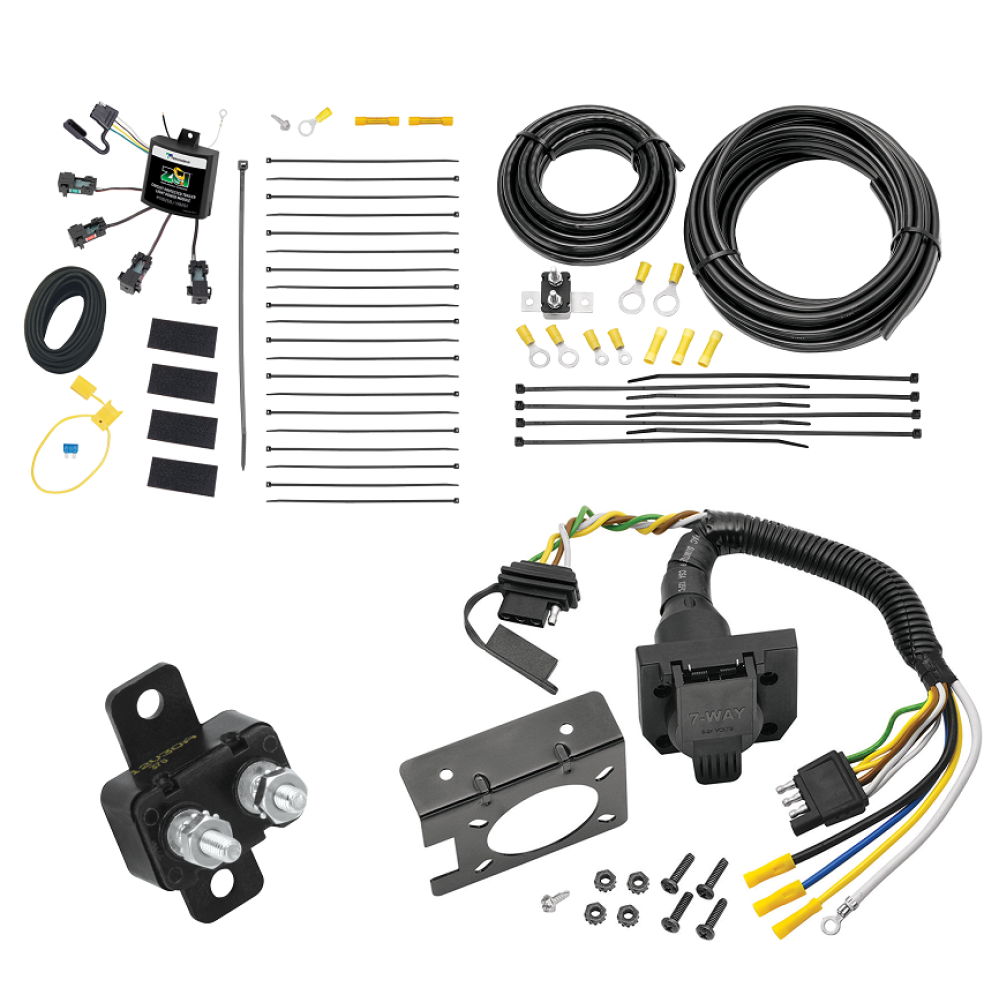

This Bundle Includes the Following Parts:

7-Way RV Wiring w/ Zero Contact ZCI Module

List of fitment years: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

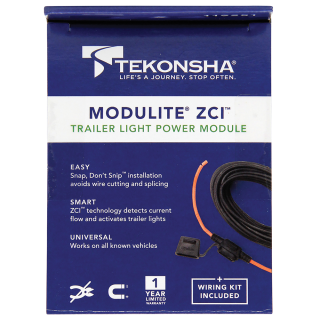

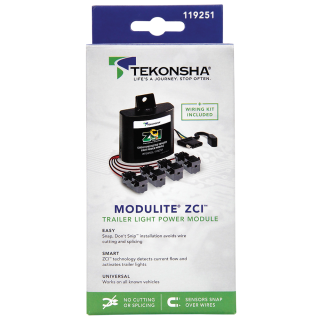

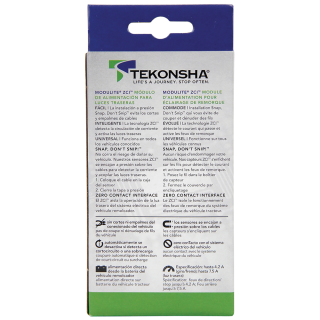

ZCI™ Zero Contact Interface Universal ModuLite® & Installation Kit Manufactured by: Tekonsha

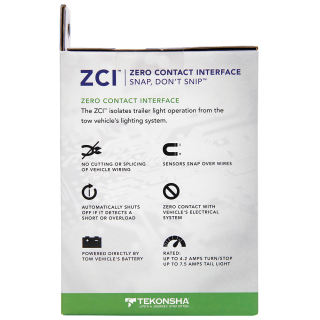

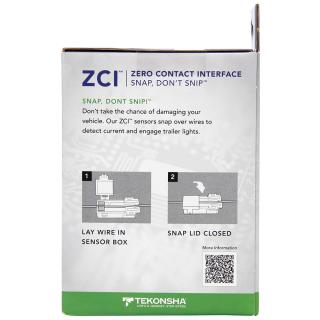

ZCI sensor technology and direct connection to the tow vehicle battery, eliminates all electrical connection and interference with the tow vehicle electrical system. Vehicles with 12 volt system only.

• NO CUTTING OR SPLICING VEHICLE WIRING!
• Isolates Trailer Light Operation from Tow Vehicle's Electrical System
• Works with 2 or 3 wire systems
• Works with PWM or Multiplexed systems requiring 2 or 3 wire hookup
• Rated for up to 4.2 amps for turn/stop & 7.5 amps for taillight trailer circuits
• Works with low side switched vehicles
• Integrated auto resetting short & overload protection
• Robust design allows for interior or exterior mounting

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to upgrade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4-way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.
