For 2011-2012 RAM 3500 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Brakeman IV Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

• 2011-2012 RAM 3500

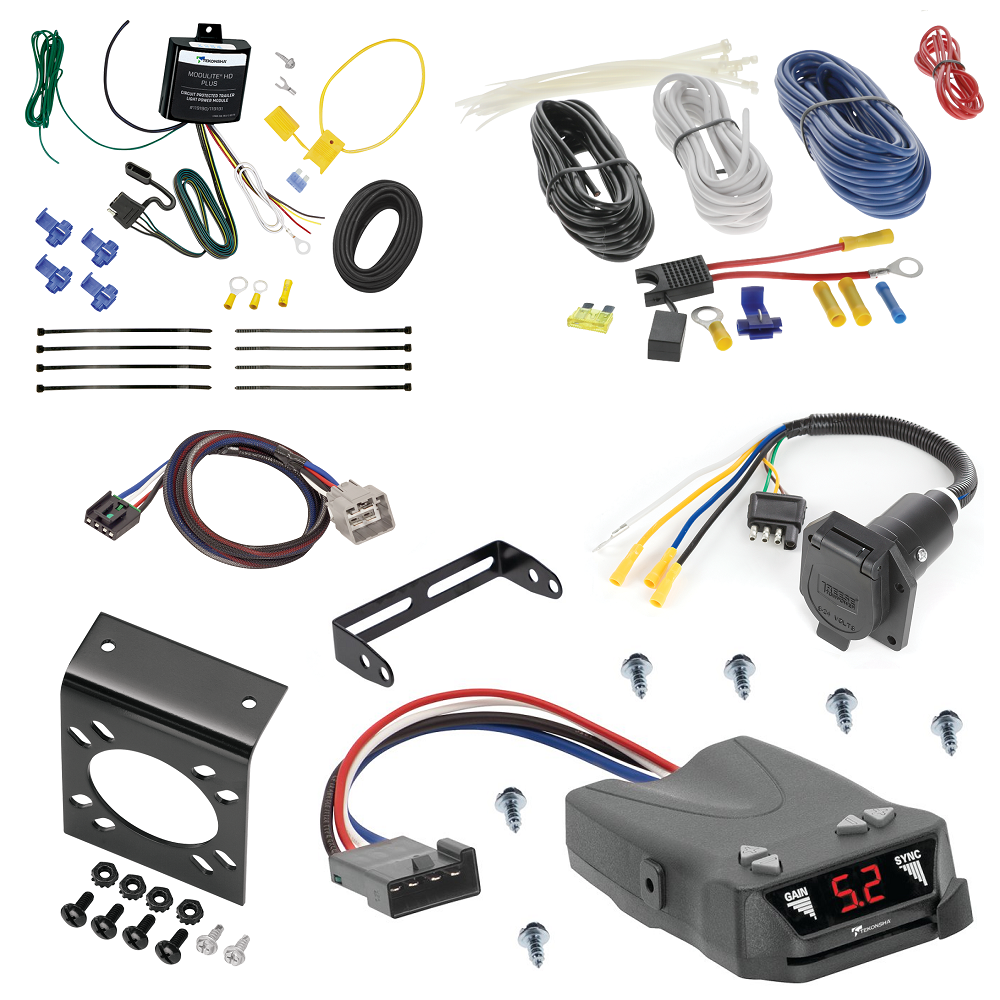

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Brakeman IV Brake Control
• Plug & Play BC Adapter

List of fitment years:

• 2011
• 2012

ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit (Manufactured by: Tekonsha)

• The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit.
• Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles.
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off.
• Will work with either LED/Incandescent bulbs (vehicle & trailer).
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps.
• Designed not to send feedback through the vehicle circuits.
• The trailer brakes will override the hazard lamps when the brake is activated.
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems.
• Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW).
• Will not work with vehicles with low-side switch.
• Can be used on a 2 wire or 3 wire system.
• All solid-state components in potted encapsulation.
• Includes integrated protective cover.

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End (Manufactured by: Reese Towpower)

• The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug.
• The 7-way connectors include electric brake, auxiliary, and backup circuits.
• Provide versatility in going from 4-Flat to 7-Way standard plug.
• Pre-wired with 4-Flat and wired with butt connects and ring terminal.
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal.
• Features non-corroding brass terminals.
• Mounts to standard 7-Way bracket.
• Non-corrosive thermo plastic construction.
• Ring terminal already mounted to ground wire.
• 12 volt and brake wires have butt connectors already attached.

Trailer Brake Controller Installation Kit, Wire and Hardware (Manufactured by: Tekonsha)

• This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller.
• This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
• OEM Style wiring harness.
• Easy to install.
• 1-3 axles.

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts (Manufactured by: Tow Ready)

• Mounts electrical connector to attachment bracket.
• Includes screws and nuts.
• Attractive point-of-purchase packaging.

Brakeman® IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Black (Manufactured by: Tekonsha)

• The Tekonsha Brakeman IV digital brake control is designed to handle from one to four braking axles and includes a digital display.
• The digital display indicates the amount of voltage power being delivered to the brakes and assists in accurately adjusting the trailer brakes for city or highway driving.
• Separate adjustment controls (Output & Sync) allow for not only the different weights (Output) of trailers, but also the speed of activation (Sync) depending on your driving style.
• Small compact design.
• Easy push button adjustment for output and sync.
• Plug and play feature allows quick and easy connection.
• Digital Display output setting, sync setting, brake overload or short connection.
• Advanced internal circuit protection.
• No leveling required.
• Mounts in any direction.
• For use on 12 volt negative ground systems only.

Trailer Brake Controller Wiring Harness (Manufactured by: Tekonsha)

• Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit.
• Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port.
• Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
