For 2012-2021 Nissan NV2500 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Brakeman IV Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2012-2021 Nissan NV2500

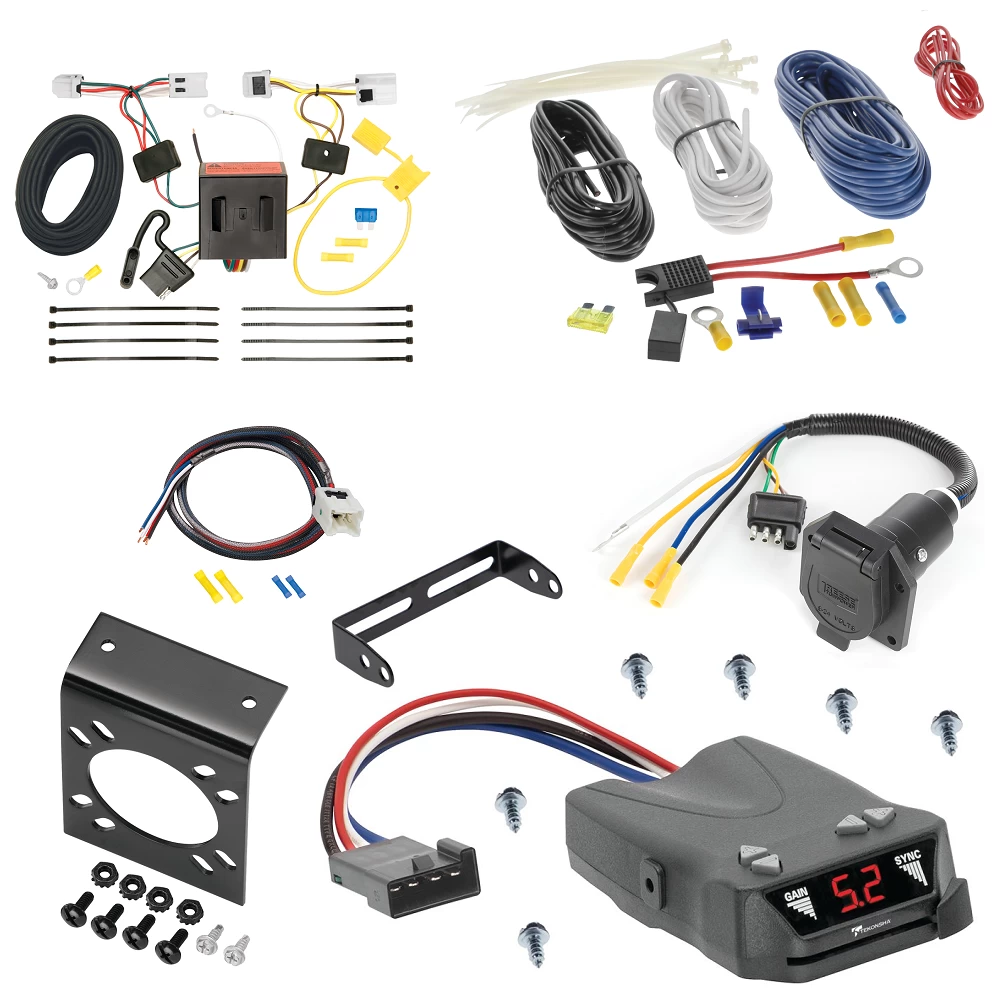

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Brakeman IV Brake Control
• Plug & Play BC Adapter

List of fitment years:

2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021

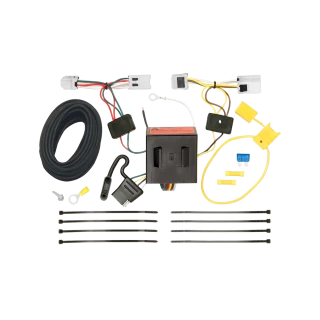

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module

Manufactured by: Tekonsha

Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 4.2 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End

Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

• Provide versatility in going from 4-Flat to 7-Way standard plug
• Per-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

Trailer Brake Controller Installation Kit, Wire and Hardware

Manufactured by: Tekonsha

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

• OEM Style wiring harness
• Easy to install
• 1-3 axles

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts

Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Brakeman® IV Time-Delay Brake Controller for Trailers with 1-4 Axles, Black

Manufactured by: Tekonsha

The Tekonsha Brakeman IV digital brake control is designed to handle from one to four braking axles and includes a digital display. The digital display indicates the amount of voltage power being delivered to the brakes and assists in accurately adjusting the trailer brakes for city or highway driving. Separate adjustment controls (Output & Sync) allow for not only the different weights (Output) of trailers but also the speed of activation (Sync) depending on your driving style.

• Small compact design
• Easy push button adjustment for output and sync
• Plug and play feature allows quick and easy connection
• Digital Display output setting, sync setting, brake overload or short connection
• Advanced internal circuit protection
• No leveling required
• Mounts in any direction
• For use on 12 volt negative ground systems only

Trailer Brake Controller Wiring Harness

Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
