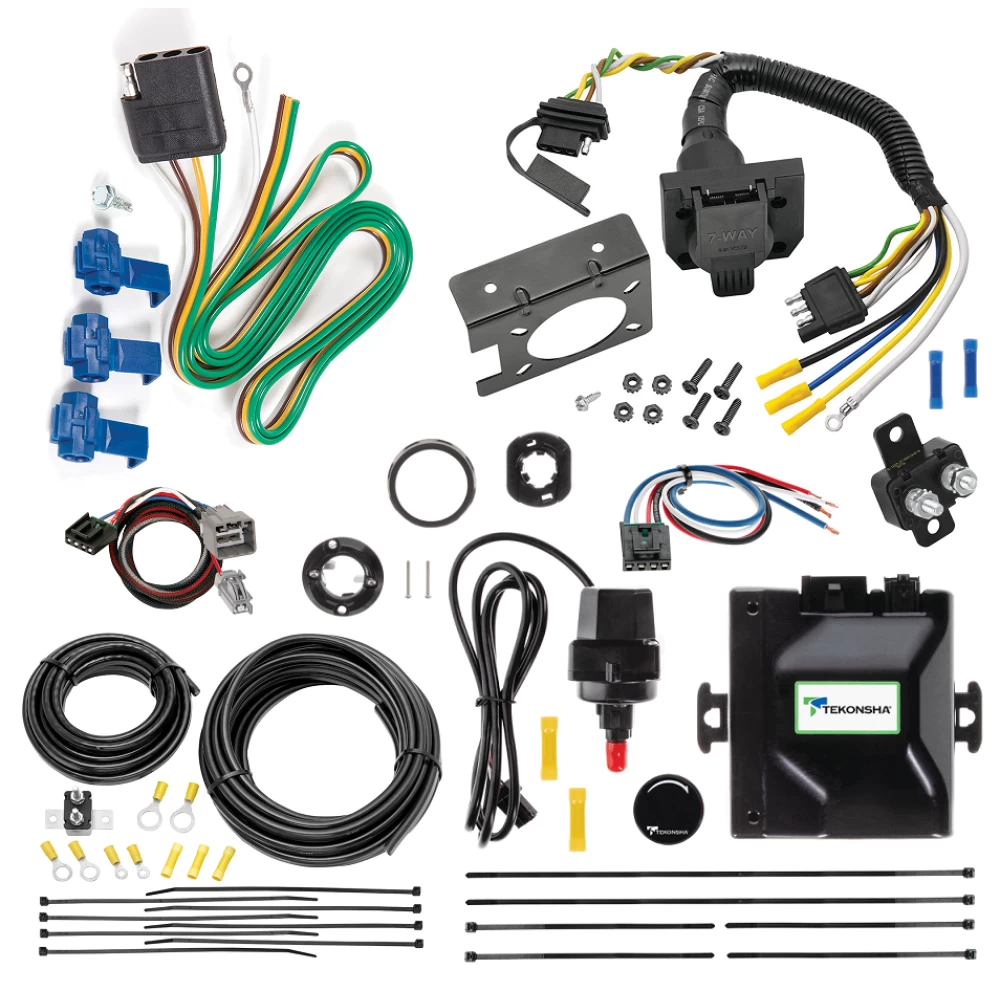

For 2013-2014 RAM 1500 Tekonsha Prodigy iD Bluetooth Wireless Trailer Brake Controllerler + Plug & Play Adapter + 7 Way Trailer Wiring RV 7 Pin 7 Blade By Reese Towpower

This Bundle Fits The Following Vehicles:

2013-2014 RAM 1500

This Bundle Includes the Following Parts:

• Tekonsha Prodigy iD Bluetooth Wireless Brake Control

  The Prodigy iD is a first of its kind brake controller that seamlessly integrates a color LED display into your vehicle's dash providing easy-to-read diagnostics and alerts. Once installed, enjoy fingertip control using the rotary knob to easily adjust settings. Put complete control in your hands by downloading the Tekonsha Edge mobile app, allowing you to easily set Power and Boost, store multiple trailer and driver settings, and much more. With a unique ability to switch between Proportional and Timed braking, the Prodigy iD is the premiere brake control option to meet your every towing need.

  • Seamlessly integrates into your vehicle for a clean in-dash appearance
  • Fingertip control allows you to easily adjust brake control settings
  • Color LED display provides easy-to-read diagnostics and alerts
  • Tekonsha EDGE mobile app puts complete control in your hands
  • Store multiple trailers and drivers
  • Manual override using the rotary control knob
  • Switch between Proportional and Timed braking depending on your towing need

• Plug & Play BC Adapter

  Allows for easy and seamless connection between the brake control unit and the vehicle's wiring system. No need for complicated splicing or additional wiring. Simply plug and play.

• 7-Way RV Wiring

  Connect your trailer to your vehicle's electrical system using this 7-way RV wiring. Provides all the necessary connections for lights, brakes, and other electrical components.

List of fitment years:

• 2013
• 2014

Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire Manufactured by: Reese Towpower

The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In. of wire with splice connectors. The included splices connectors make adding a 4-flat connector easy for most vehicle wiring systems.

• Molded 4-Flat vehicle connector
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance
• Rated for 7.5 amps per circuit
• Conforms to SAE spec. J1128 standard

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4 way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
