For 2013‑2022 Acura ILX Trailer Wiring 4 Way Fits All Models Curt 56269
Model: 56269-CW4This Wiring 4-Flat Fits The Following Vehicles:
2013 - 2022 Acura ILX All Models
This Wiring 4-Flat Includes the Following Parts:

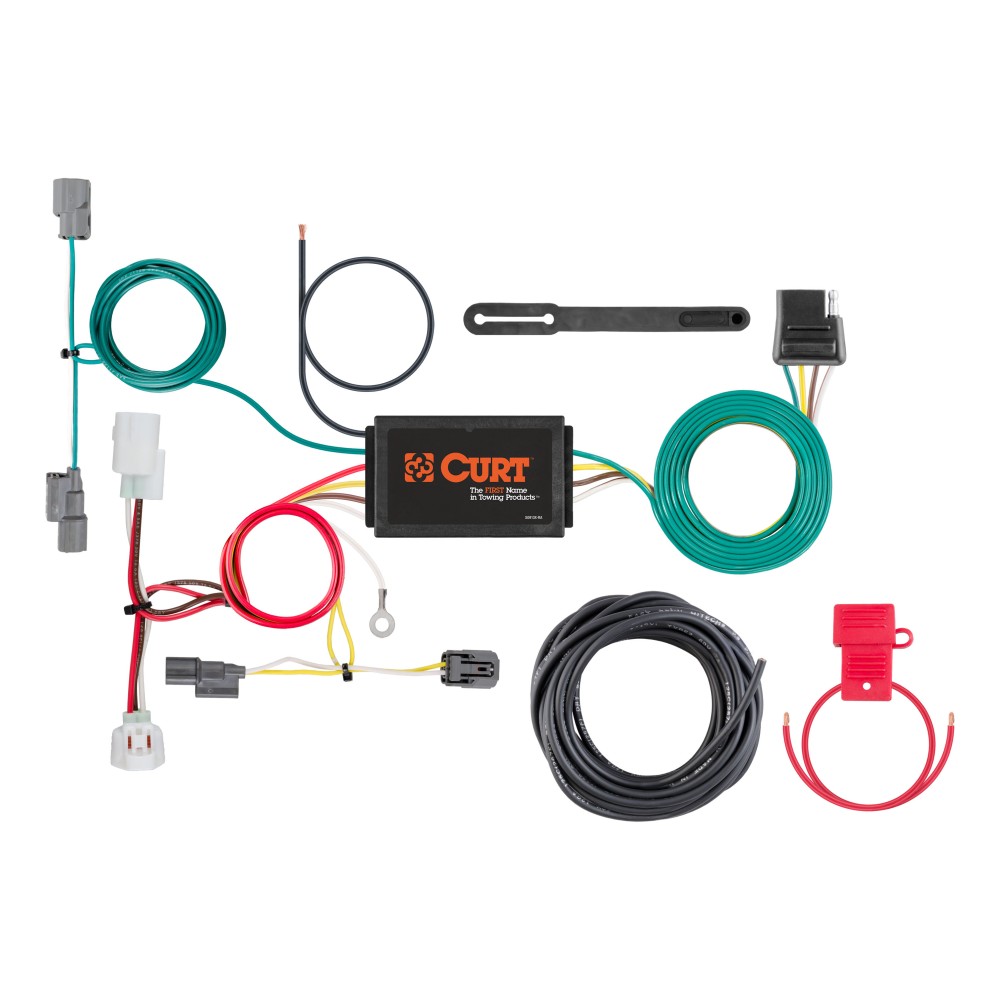

- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)

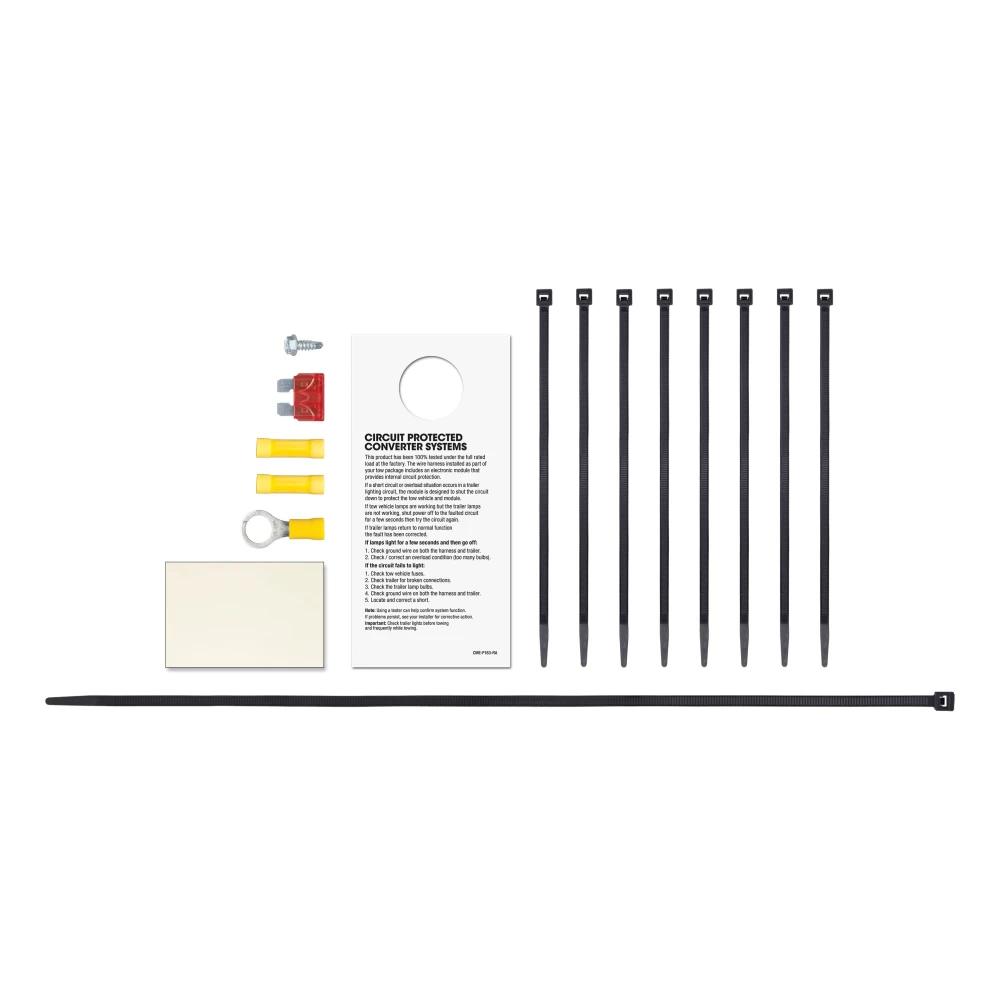

- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022
CURT 56269 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Acura ILX (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:

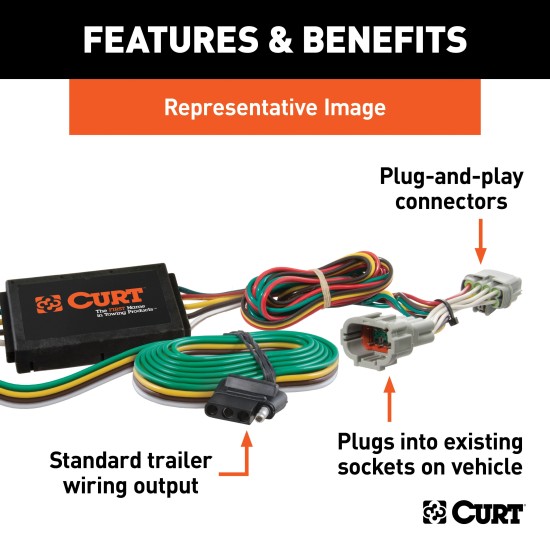

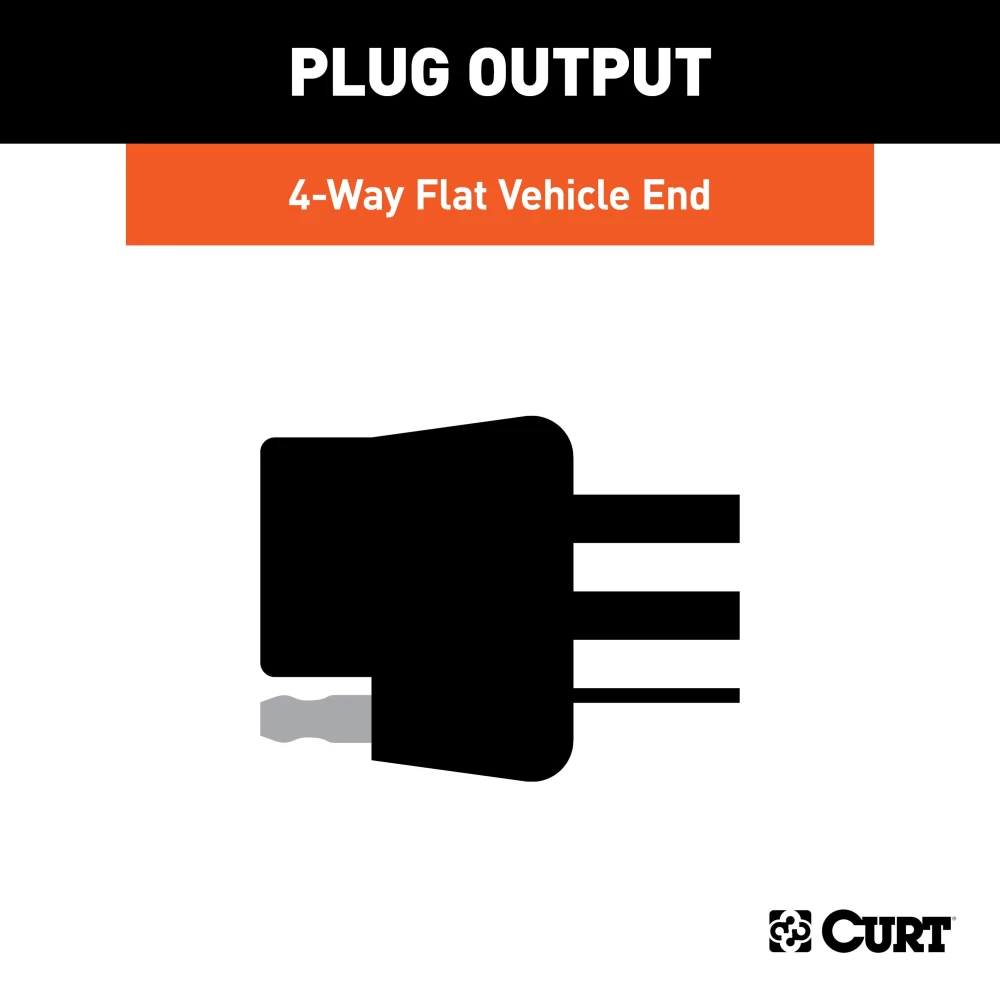

- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing

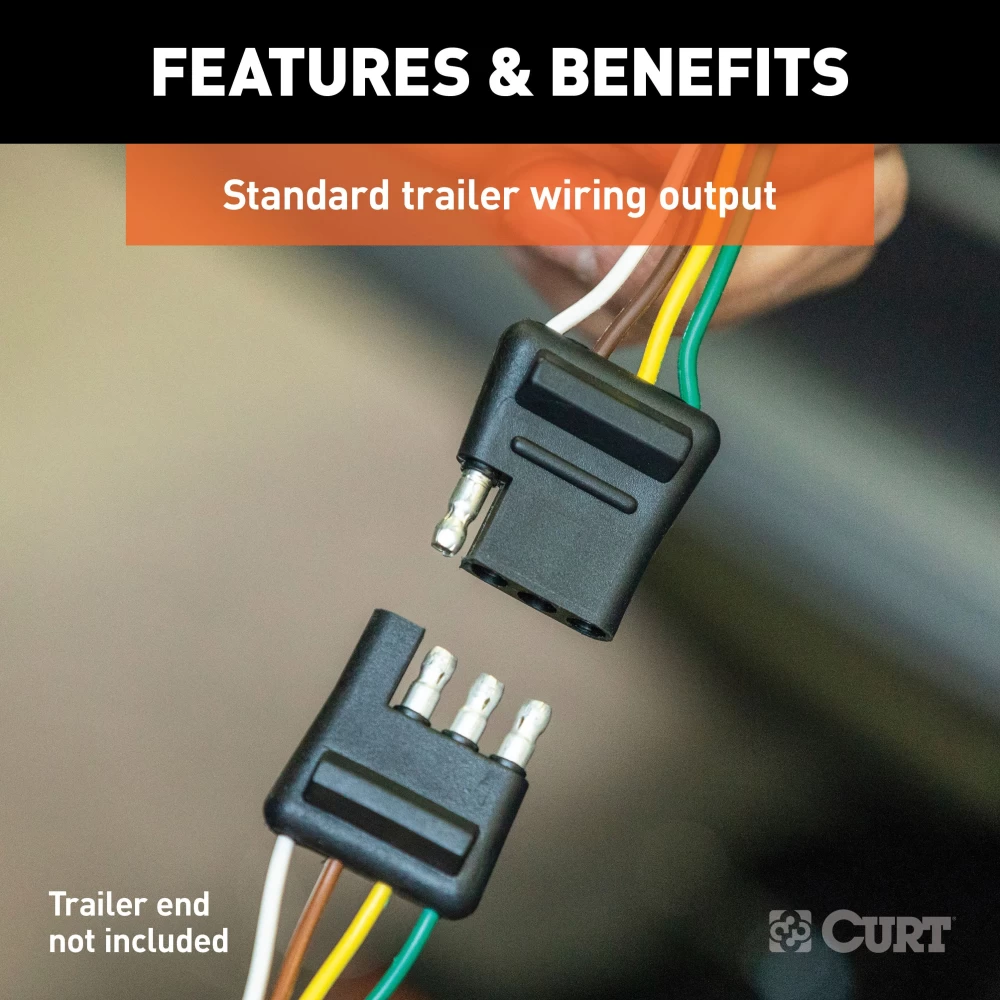

- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability

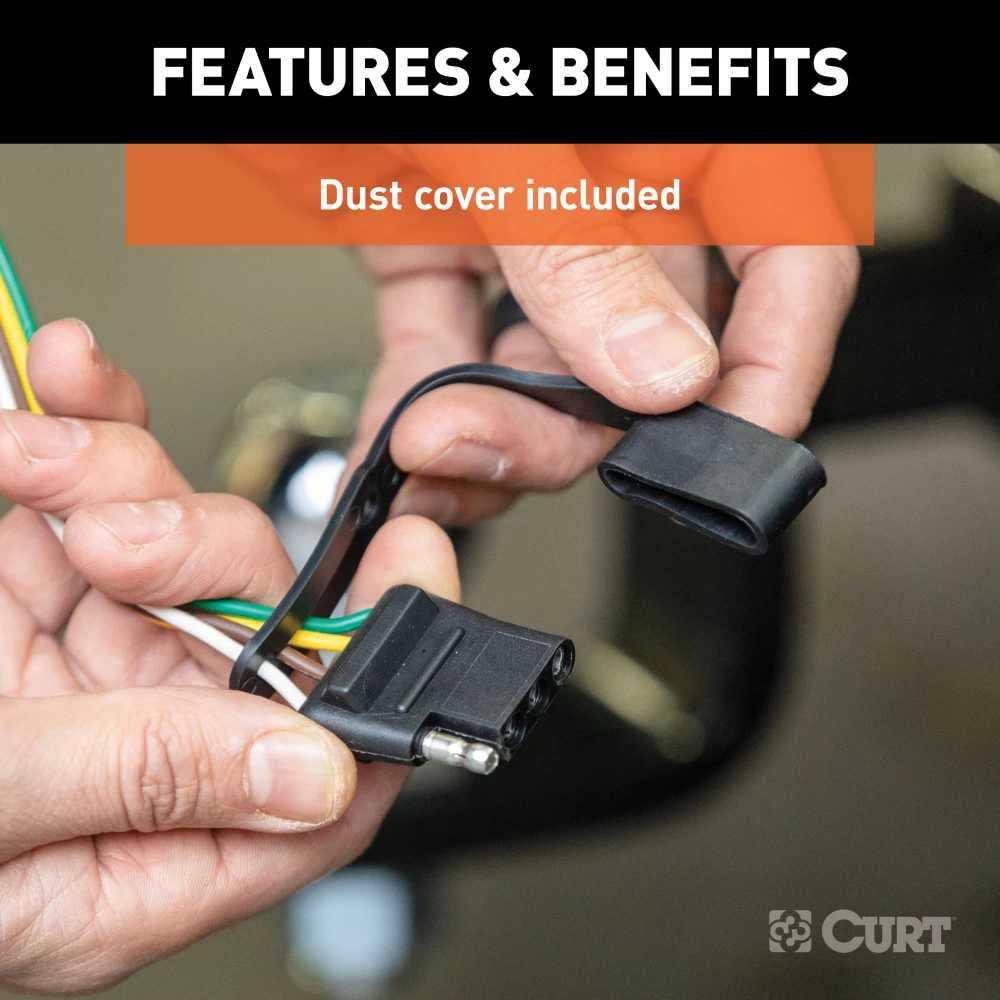

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$68 46 $96.95 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$96.95 $68 46
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $17.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56269-CW4
- Includes: Custom Wiring Harness
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2013-2022 Acura ILX Trailer Wiring 4 Way Fits All Models Curt 56269 Install Notes
Installation Instructions for Acura ILX
Part Numbers:
- 56269
Wiring Access Location:
- P1: Behind driver-side taillight housing, outside of trunk
- P2: Behind passenger-side taillight housing, outside of trunk
Tools Required:
- Phillips screwdriver
- Panel trim removal tool
- Wire stripper
- Wire crimper
- Cutting tool
- Sealant
Step-by-Step Process:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal and secure it away from the battery.
Step 2: Prepare the Trunk Area
- Open the trunk and remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Pull out on the bottom of the scuff panel and then lift upward to remove it.
- Take care not to damage the alignment tabs on the back.
Step 4: Access Driver-Side Felt Liner
- Remove the fasteners securing the driver-side felt liner in place.
- Pull back on the liner to locate the vehicle taillight wiring harness connectors.
Step 5: Remove the Driver-Side Taillight
- Outside the vehicle, remove the cover on the taillight assembly to access the fasteners.
- Remove the two screws securing the taillight and gently pull the taillight straight back.
Step 6: Disconnect Driver-Side Wiring Connectors
- Locate the taillight wiring harness connectors behind the taillight.
- Disconnect the connectors without damaging the locking tabs.
Step 7: Prepare the Grommet
- Remove the grommet behind the taillight where the wiring passes through from the cabin to the taillight.
- Cut a slit in the grommet large enough to route the custom wiring harness.
Step 8: Connect the Wiring Harness on Driver Side
- Route the custom wiring harness end with the yellow wire through the grommet opening and slit.
- Insert the yellow wire connectors between the separated 2-pin connectors, and the red wire between the 3-pin connectors.
- Ensure all connectors are securely locked in place.
Step 9: Reseal the Grommet
- Reseat the grommet and use sealant (not provided) to seal the slit and around the wires.
Step 10: Ground the White Wire
- Locate a suitable grounding point near the taillight connector, such as an existing screw with a nut on the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole.
- Clean the grounding area of rust, dirt, or paint, and attach the white ground wire using the provided ring terminal and screw.
Step 11: Mount the Converter Box
- Find a flat, clean surface inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
Step 12: Connect the Wiring Harness on Passenger Side
- Route the green wire of the custom wiring harness to the passenger side behind the scuff panel.
- Repeat Steps 4-9 on the passenger side using the green wire.
Step 13: Route the Power Wire
- Route the black power wire from the vehicle battery as shown in the included instructions.
Step 14: Secure the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it in a convenient location.
- Secure loose wires with the provided cable ties.
Step 15: Reassemble and Test
- Reinstall all items removed during installation and reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to protect against corrosion.
Safety Notes:
- Ensure the battery connection is fuse-protected (10-amp max).
- Do not exceed the product rating or the vehicle lamp load rating.
- Verify proper function using a test light or a properly wired trailer.
Specifications:
- Signal circuits: 3.0 amps per side
- Tail/running circuits: 6.0 amps total
- Compatible with 12-volt negative ground systems
