For 2014-2020 Acura MDX Trailer Hitch Tow PKG w/ 4-Flat Wiring + Extended 16" Long Ball Mount w/ 2" Drop + Pin/Clip + 2" Ball (Excludes: w/Full Size Spare Tire Models) By Draw-Tite

This Bundle Fits The Following Vehicles:
2014-2020 Acura, MDX, Except w/Full Size Spare Tire

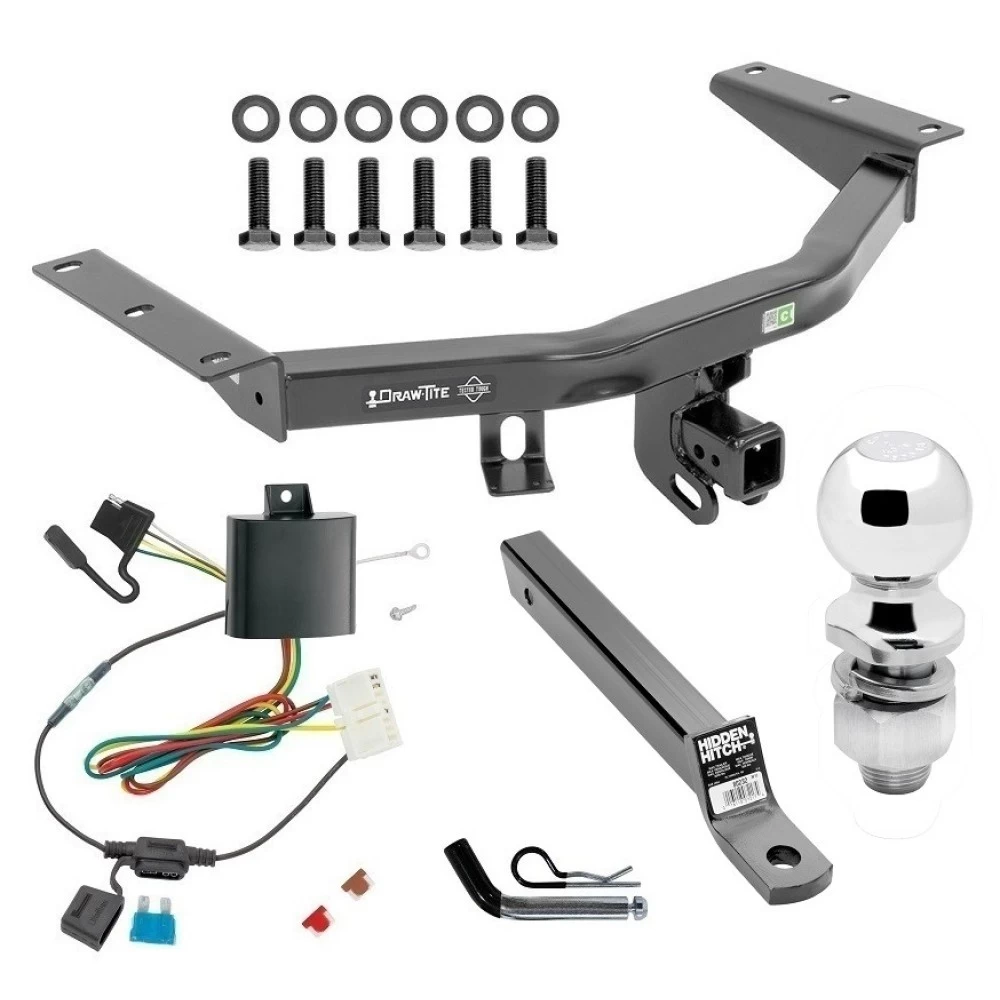

This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Extended 16 inch Long Ball Mount w/ 2 inch Drop
Pin/Clip
2 inch Ball

List of fitment years: 2014, 2015, 2016, 2017, 2018, 2019, 2020

The hitch is hidden behind your bumper, and does not require drilling

Class 4 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class IV trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. The legacy brand’s Class IV receiver hitches are rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Acura MDX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, RV, boat trailer, or utility trailer. The options are endless! Draw-Tite Class IV custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re hauling cargo to and from the job site, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 6,000 lbs. GTW and up to 900 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 900 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Acura MDX, Honda Pilot
• EXCLUSIONS: This Draw-Tite Class IV hitch does NOT fit the following: Except w/Full Size Spare Tire

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 4.2 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

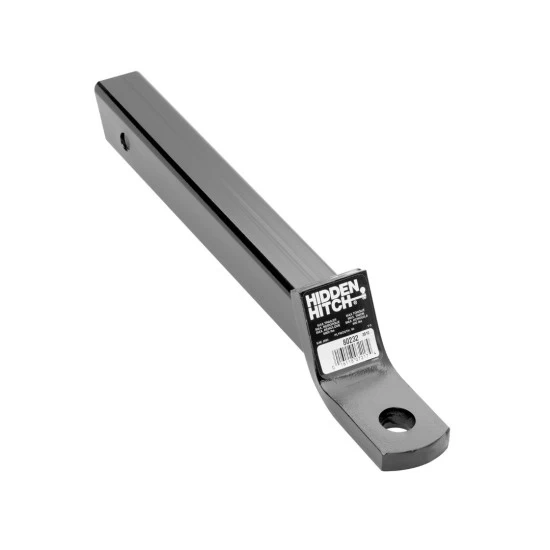

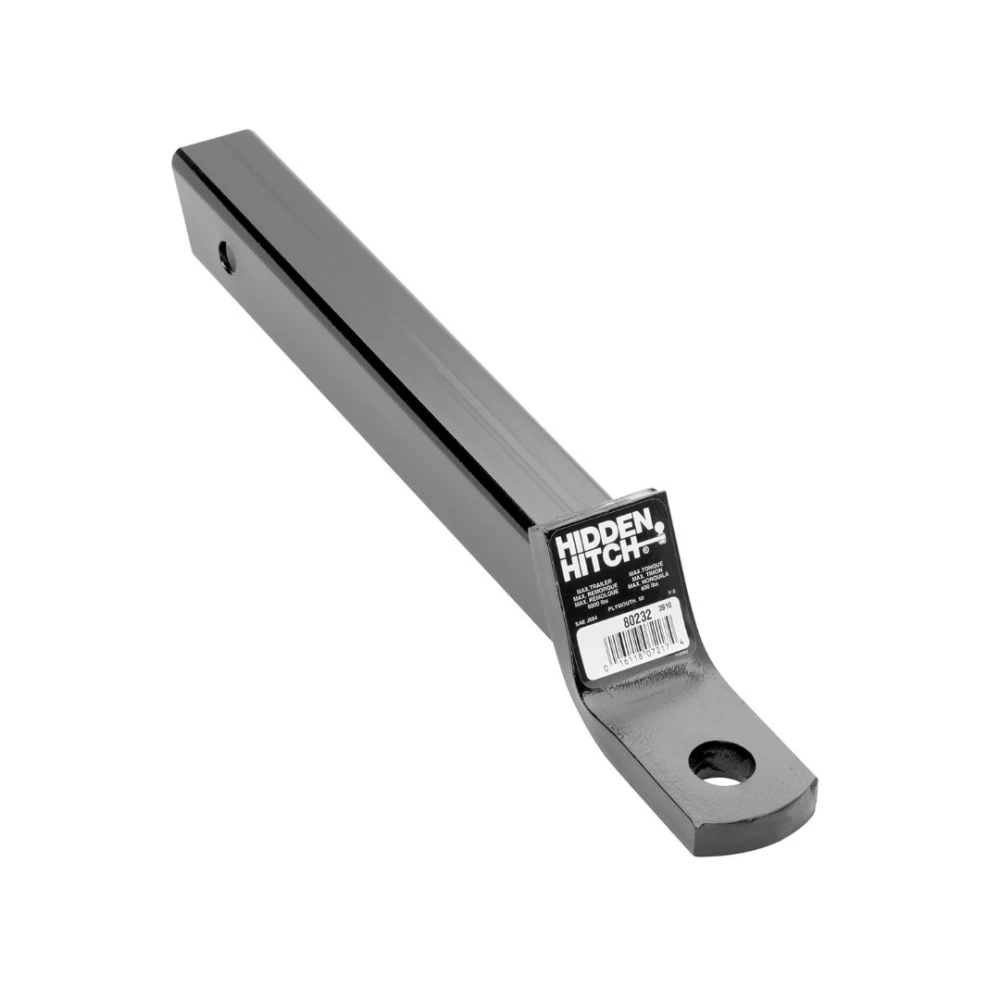

Trailer Hitch Ball Mount, Fits 2 in. Receiver, 2 in. Drop, 6,000 lbs. Capacity, Black Manufactured by: Hidden Hitch
Whether you tow with a pick-up truck or a cross over SUV, you can be sure that Hidden Hitch® has a ball mount to fit your hitch. Ball mounts are an essential piece of the towing puzzle, as they fit into your receiver hitch and connect your tow vehicle with the tongue of your trailer. With decades of experience in the towing business, Hidden Hitch knows what you need to connect and tow safely, and a big part of that is selecting the right ball mount for your trailer and tow vehicle. Made of solid construction for maximum strength and safety, Hidden Hitch ball mounts come in several sizes, shank lengths, and weight capacities. So go with a Hidden Hitch, and get towing today.
• Fits 2 in. Square Receiver Tube Opening
• 6,000 lbs. Capacity
• 2 in. Drop, 3/4 in. Rise
• 1 in. Ball Shank Diameter
• Angle Cut Design
• Black Powder Coat Finish over E-Coat

Trailer Hitch Pin & Clip, Fits 2 in. Receiver, 5/8 in. Pin Diameter Manufactured by: Reese Towpower
REESE Towpower 5/8 In. pin and clip is designed to fit Class III / IV, Reese 33, 36, 36, 37, 44, and 51 series hitches with 2 In. hitch boxes. This pin is 5/8 inch in diameter and includes the spring cotter pin. The PVC comfort grip is designed to protect the hands and allow for a better grip while inserting or removing the pin and clip.
• Black comfort grip on both pin and clip
• 5/8 In. diameter pin and clip set
• Easier to pick up
• Always keep extra pin and clips on hand for safe towing
• Class III and IV
• 1 year limited warranty

Trailer Hitch Ball, 2 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
