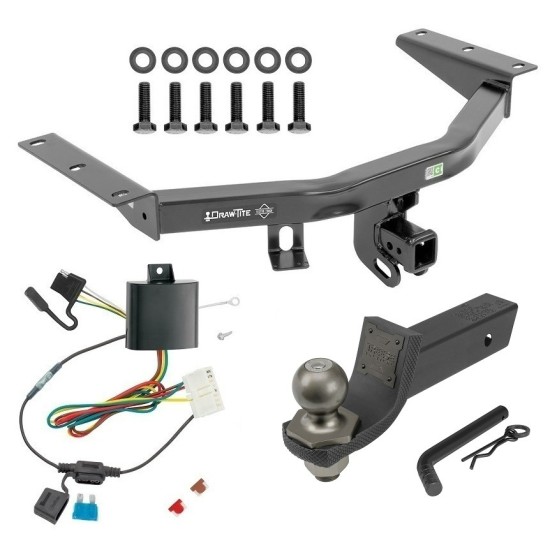

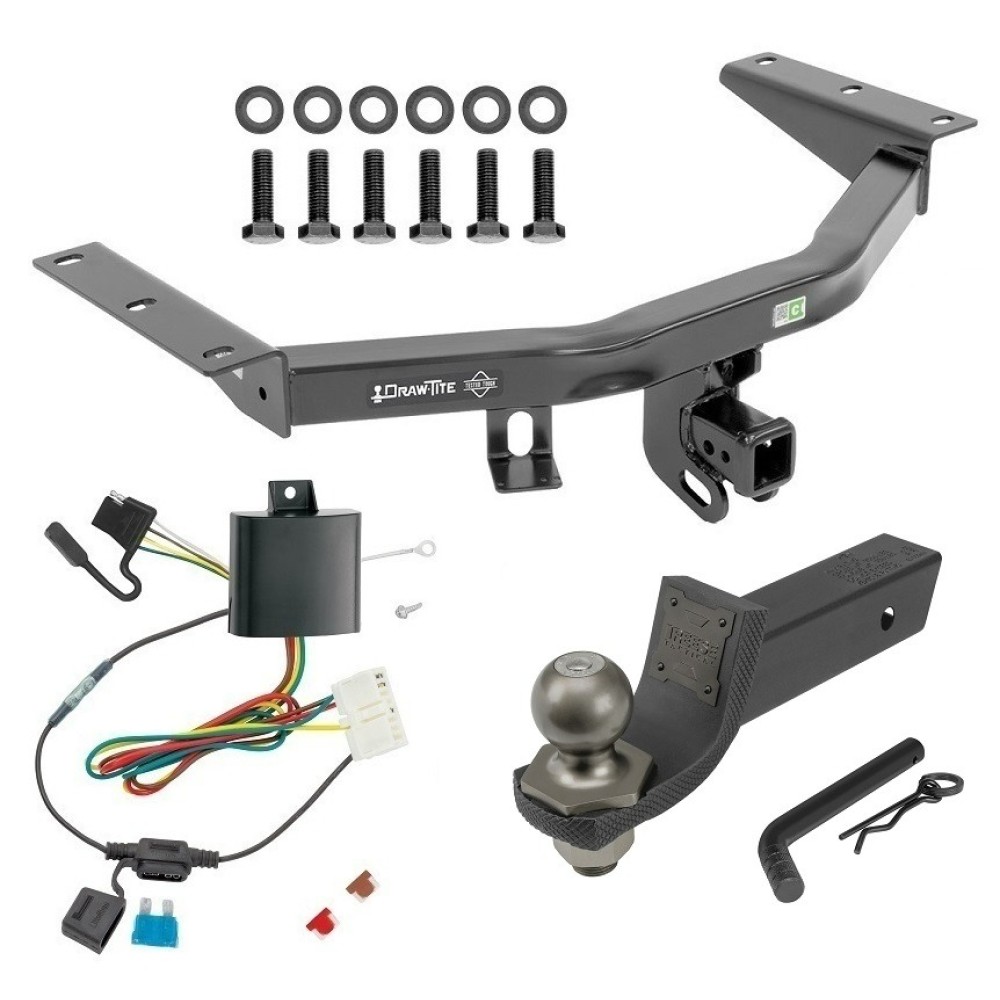

For 2014‑2020 Acura MDX Trailer Hitch Tow PKG w/ 4‑Flat Wiring + Interlock Tactical Starter Kit w/ 2" Drop & 2" Ball (Excludes: w/Full Size Spare Tire Models) By Draw‑Tite
Model: 75225 118628 7092400This Bundle Fits The Following Vehicles:
2014-2020 Acura, MDX, Except w/Full Size Spare Tire
This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Interlock Tactical Starter Kit w/ 2 inch Drop & 2 inch Ball
List of fitment years: 2014, 2015, 2016, 2017, 2018, 2019, 2020
The hitch is hidden behind your bumper, and does not require drilling
Class 4 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class IV trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. The legacy brand’s Class IV receiver hitches are rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Acura MDX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, RV, boat trailer, or utility trailer. The options are endless! Draw-Tite Class IV custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re hauling cargo to and from the job site, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 6,000 lbs. GTW and up to 900 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 900 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Acura MDX, Honda Pilot
• EXCLUSIONS: This Draw-Tite Class IV hitch does NOT fit the following: Except w/Full Size Spare Tire
T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 4.2 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed
Interlock® Tactical™ Trailer Hitch Ball Mount Starter Kit, Fits 2 in. Receiver, 2 in. Drop, 6,000 lbs. Capacity, Includes 2 in. Trailer Ball and Receiver Lock, Black Manufactured by: Reese
New to towing and not sure what you need? Worry no more! REESE® starter kits provide you with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball, and a pin and clip. Once you determine the appropriate drop or rise for your trailer, simply insert the ball mount into your receive hitch tube opening, secure it with the pin and clip, and voila! You’re ready to hook up your trailer and hit the road. Get your REESE starter kit today and make the journey as enjoyable as the destination.
• Fits 2 in. Receiver Tube Openings
• Includes Ball Mount, Hitch Ball, Pin and Clip
• 6,000 lbs. Capacity
• 2 in. Drop Ball Mount
• 2 in. dia. Hitch Ball
• REESE Tactical Matte Black FInish
$286 90 $482.87 41% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$482.87 $286 90
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75225 118628 7092400
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Interlock Tactical Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Get Expert Help
For 2014-2020 Acura MDX Trailer Hitch Tow PKG w/ 4-Flat Wiring + Interlock Tactical Starter Kit w/ 2" Drop & 2" Ball (Excludes: w/Full Size Spare Tire Models) By Draw-Tite Install Notes
Installation Instructions for Honda Pilot and Acura MDX
Part Numbers:
- 75225
- 87691
- 44778
Applications:
- 2014-Current Honda Pilot
- 2014-Current Acura MDX (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 22mm
- Flat Head Screwdriver
- 3" Socket Extension
Installation Time:
- Approximately 20 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Open the trunk and use the tools provided in the storage compartment to lower the spare tire (see Figure 2).
-
Install Hitch:
- Raise the hitch into position and loosely install M14 bolts (6 total) with conical washers into the weldnuts on the vehicle frame (see Figure 3).
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners with a torque wrench to 148 lb-ft (201 N·m).
-
Reinstall Spare Tire:
- Raise the spare tire back into position, ensuring it does not interfere with the hitch.
Hardware List:
- (6) M14 x 1.50 x 45mm CL10.9 Bolts
- (6) 5/8” Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 6,000 lbs (2,724 kg), Max Tongue Weight 900 lbs (409 kg).
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 900 lbs (409 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for T-One® T-Connector for Acura MDX
Part Numbers:
- 118628
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- It may be helpful to fold the rear seats forward.
-
Access the Relay and Fuse Box:
- Open the cover to access the relays and fuses in the junction box.
-
Connect the T-Connector:
- Remove the fuse from the supplied fuse holder.
- Route the white T-One® T-Connector end up and behind the trim panel to the junction box area.
- Plug the T-One® T-Connector into the corresponding connection in the electric junction box.
Caution:
- Ensure all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs, and ensure all connectors are fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Mount the T-One® T-Connector's black box module below the rear threshold in the spare tire compartment.
- Choose a surface that is free of moisture and mounted high enough to avoid direct contact with water or liquid substances.
-
Install Fuses:
- Locate the fuse panel schematic inside the box cover.
- Insert the fuses into positions 2 and 11 as shown in the diagram.
- Install the 15-amp fuse into the fuse holder from Step 3.
-
Route and Store the 4-Flat Connector:
- Route the 4-flat connector over to the jack storage area.
- Replace the black cargo liner and store the 4-flat wire in the jack compartment when not in use.
-
Reinstall Removed Components:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation.
- Be careful not to pinch or cut the wires.
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Test and verify the installation with a test light or trailer once installed.
- Overloading circuits can cause fires. Do not exceed the product's stated ratings.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
