For 2014-2020 Acura MDX Trailer Hitch Tow PKG w/ Tekonsha BRAKE-EVN Brake Control + Plug & Play BC Adapter + 7-Way RV Wiring + 2" & 2-5/16" Ball & Drop Mount (Excludes: w/Full Size Spare Tire Models) By Reese Towpower

This Bundle Fits The Following Vehicles:
2014-2020 Acura, MDX, Except w/Full Size Spare Tire

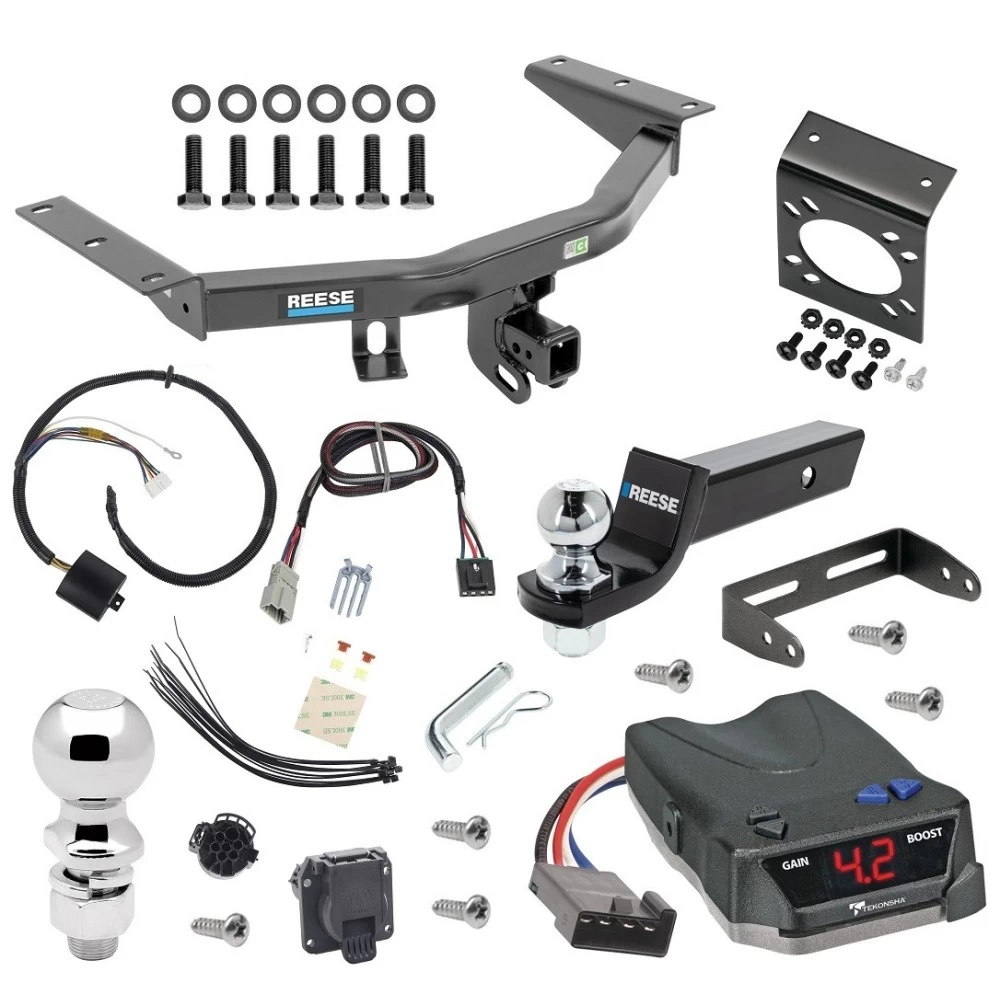

This Bundle Includes the Following Parts:
Trailer Hitch
Tekonsha BRAKE-EVN Brake Control
Plug & Play BC Adapter
7-Way RV Wiring
2 inch & 2-5/16 inch Ball & Drop Mount

List of fitment years: 2014, 2015, 2016, 2017, 2018, 2019, 2020

The hitch is hidden behind your bumper, and does not require drilling

Class 4 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Reese Towpower
REESE Class IV trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. REESE’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. The legacy brand’s Class IV receiver hitches are rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). REESE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Every REESE trailer hitch is inspected to ensure the highest quality and workmanship and is tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Acura MDX, Honda Pilot and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, RV, boat trailer, or utility trailer. The options are endless! REESE Class IV custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re hauling cargo to and from the job site, choose REESE and travel with confidence knowing your setup is connected with the security only REESE can provide. REESE: Helping you enjoy the journey as much as the destination.
• CUSTOM DESIGNS: REESE Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: REESE hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 6,000 lbs. GTW and up to 900 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 900 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This REESE Class IV hitch is designed to fit the following make and model year vehicle(s): Acura MDX, Honda Pilot
• EXCLUSIONS: This REESE Class III hitch does NOT fit the following: Except w/Full Size Spare Tire

Tow Harness, 7-Way, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.
• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging
• Stop/Turn circuit capacity of 4.2 Amps
• Taillight circuit capacity of 12 Amps

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

BRAKE-EVN™ Proportional Brake Controller for Trailers with 1-4 Axles, Black  Manufactured by: Tekonsha
The Tekonsha BRAKE-EVN brake controller offers advanced proportional braking by applying brake pressure to match the vehicles deceleration rate. Proportional braking gets you get smoother stops that traditional time based controls. The boost feature gives the ability to apply more initial braking at the onset of stopping when towing heavier loads. When adjusted properly for your load, proportional brake controls can even extend the life of your vehicles brakes. The large LED display is easy to see when adjusting the control to handle the weight of your loaded or unloaded trailer. The BRAKE-EVN brake control can handle up to brake 4 axles and offers a simple plug in installation option, so be sure to get the proper factory harness for your vehicle. The perfect choice for light or heavy trailer loads.
• 1-4 Axle capacity
• Boost feature gives ability to apply more initial trailer braking
• Reverse battery protection
• No leveling required
• Diagnostics features incorporated in easy to read LED display
• Plug & Play feature allows for quick and easy connections
• Small compact design designed for todays dashes
• Simple push button adjustments

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.

Trailer Hitch Ball Mount Starter Kit, Fits 2 in. Receiver, 2 in. Drop, 6,000 lbs. Capacity, Includes 2 in. Trailer Ball and Receiver Lock, Black Manufactured by: Reese Towpower
New to towing and not sure what you need? Worry no more! REESE® starter kits provide you with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball, and a pin and clip. Once you determine the appropriate drop or rise for your trailer, simply insert the ball mount into your receive hitch tube opening, secure it with the pin and clip, and voila! You’re ready to hook up your trailer and hit the road. Get your REESE starter kit today and make the journey as enjoyable as the destination.
• Fits 2 in. Receiver Tube Openings
• Includes Ball Mount, Hitch Ball, Pin and Clip
• 6,000 lbs. Capacity
• 2 in. Drop Ball Mount
• 2 in. dia. Hitch Ball
• Metal Shield® Finish

Trailer Hitch Ball, 2-5/16 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2-5/16 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
