For 2015-2024 Porsche Macan 7 Pin Trailer Wiring RV 7 Way Trailer Plug (Excludes: S-Models Models) By Tekonsha

This Bundle Fits The Following Vehicles:

2015-2024 Porsche Macan Except S-Models

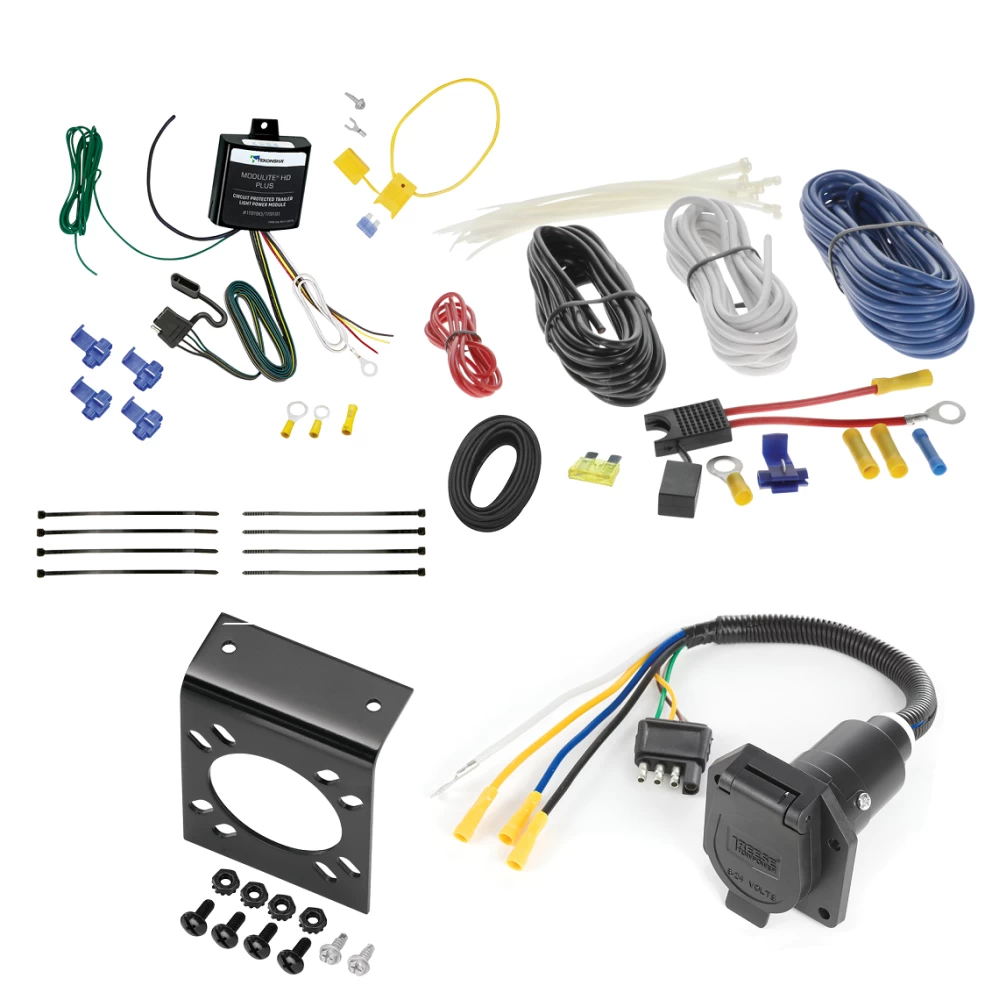

This Bundle Includes the Following Parts:

7-Way RV Wiring

List of fitment years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha

• The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
• Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
• Will work with either LED/Incandescent bulbs (vehicle & trailer)
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• The trailer brakes will override the hazard lamps when the brake is activated
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
• Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
• Will not work with vehicles with low-side switch
• Can be used on a 2 wire or 3 wire system
• All solid-state components in potted encapsulation
• Includes integrated protective cover

Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

• OEM Style wiring harness
• Easy to install
• 1-3 axles

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

• Provide versatility in going from 4-Flat to 7-Way standard plug
• Pre-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging
