For 2015-2020 Ford F150 Trailer Hitch + Wiring 5 Pin Fits Models w/ Factory Receiver w/o Factory Connector Curt 14021 2 inch Tow Receiver

This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:

2015 - 2020 Ford F-150 w/ Factory Receiver w/o Factory Connector

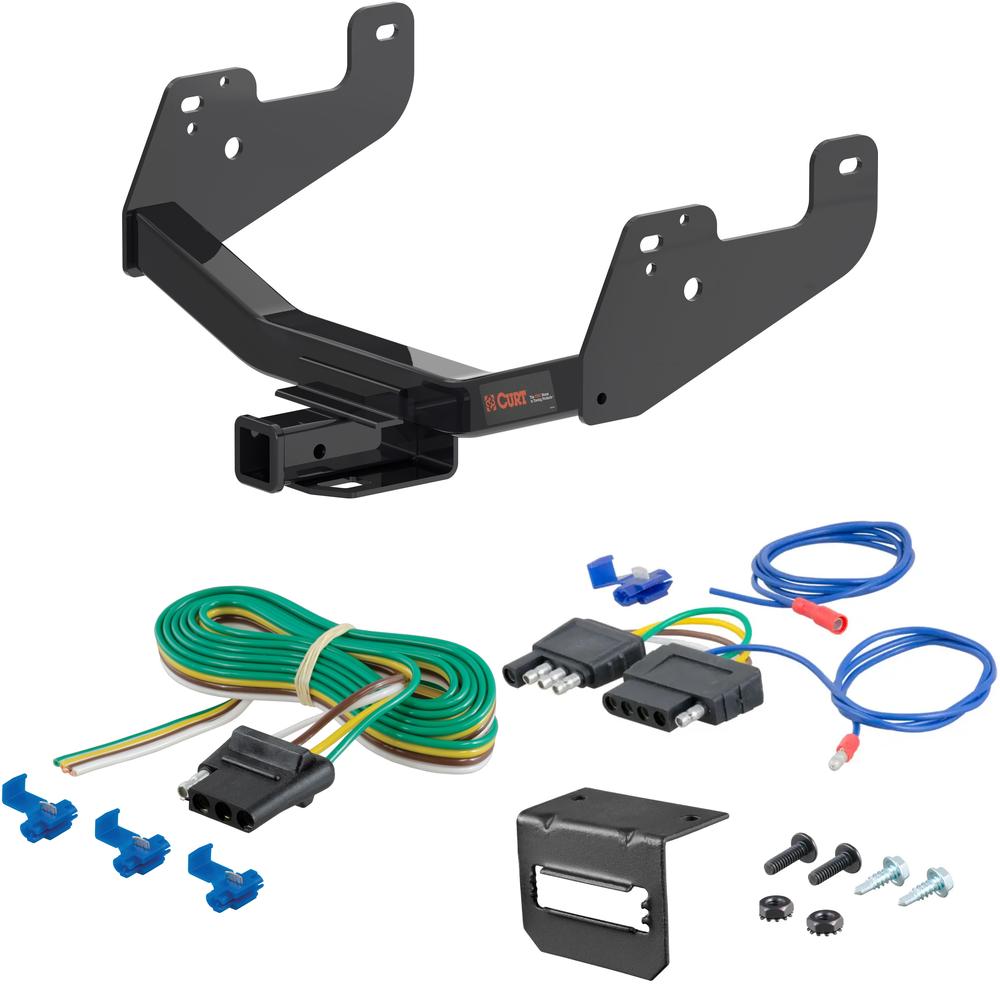

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:

• Class 4 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
• 4-Way Flat Connector Plug w/ 60" Wires & Hardware (Requires Splicing)
• 4-Way to 5-Way Flat Install Kit for Boat Trailer Surge and Connector Mounting Bracket for 5-Way Flat
• Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2015, 2016, 2017, 2018, 2019, 2020

CURT 14021 Class 4 Trailer Hitch, 2-Inch Receiver

Manufactured by: Curt

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.

This particular class 4 hitch fits certain years of the Ford F-150 (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.

TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.

CURT class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation.

From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..

Features:

• Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
• Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit
• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Protected by a durable high-gloss black powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)

CURT 58044 Vehicle-Side 4-Pin Flat Trailer Wiring Harness with 60-Inch Wires

Manufactured by: Curt

Like trailer hitches and ball mounts, electrical connectors range all over the board in shape, size and capability, but no matter what your trailer's electrical functions are, you need a solid connection to keep the power flowing and ensure safety on the road CURT electrical connectors are designed and manufactured to give you a reliable connection every time you plug in your trailer This 4-way flat connector is designed to supply power for tail lights, turn signals and brake lights, as well as a ground connection.

It features durable rubber-molded construction and is made with 60" of standard color-coded, bonded wire It also includes snap locks and all necessary installation hardware to easily splice into your vehicle's wiring system This 4-way flat connector is a female-end socket, specifically designed for the car side of the connection.

It is compatible with all 2-wire vehicle systems..

Features:

• Splices into vehicle wiring to provide a connection for a trailer plug
• 4-way flat output connects tail lights, brake lights and turn signals
• Constructed with bonded 16-gauge wires and durable molded rubber
• Features 60" of color-coded wire for easier installation
• Snap locks included for fast, secure splicing
• Designed for use on vehicles and trailers with two-wire systems

CURT 57187 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes and CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat

Manufactured by: Curt

CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around; they can get tangled up with cargo and even damaged An electrical connector left to hang off the back end of your vehicle is an even greater hazard.

Secure, protect, and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch using the included hardware.

This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 5-way flat trailer plug It is specifically intended for boat trailers with surge brakes, adding in a fifth wire for the reverse lights and allowing your vehicle's 4-way flat to easily plug into your boat trailer 5-way flat This boat trailer wiring adapter features durable molded plastic construction and requires some splicing.

All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..

Features:

• Adapts vehicle 4-way flat to plug into boat trailer 5-way flat
• Intended for boat trailers with surge brakes
• Fifth wire splices in to connect reverse lights
• Adapts 4-way flat vehicle socket to fit 5-way flat trailer plugs
• Durable molded plastic housing resists corrosion
• Securely mounts a 5-way flat connector socket
• Allows for attachment to the vehicle or trailer hitch
• Constructed from high-strength steel
• Protected by a durable black powder coat finish
