$148.80
  • Stock: In Stock
  • Brand: Curt
  • Model: 56349 57672 51500 58361-CW3636

Applies to this product only

This Wiring 7-Way + Bracket Fits The Following Vehicles:

2016 - 2023 Toyota Tacoma All Models

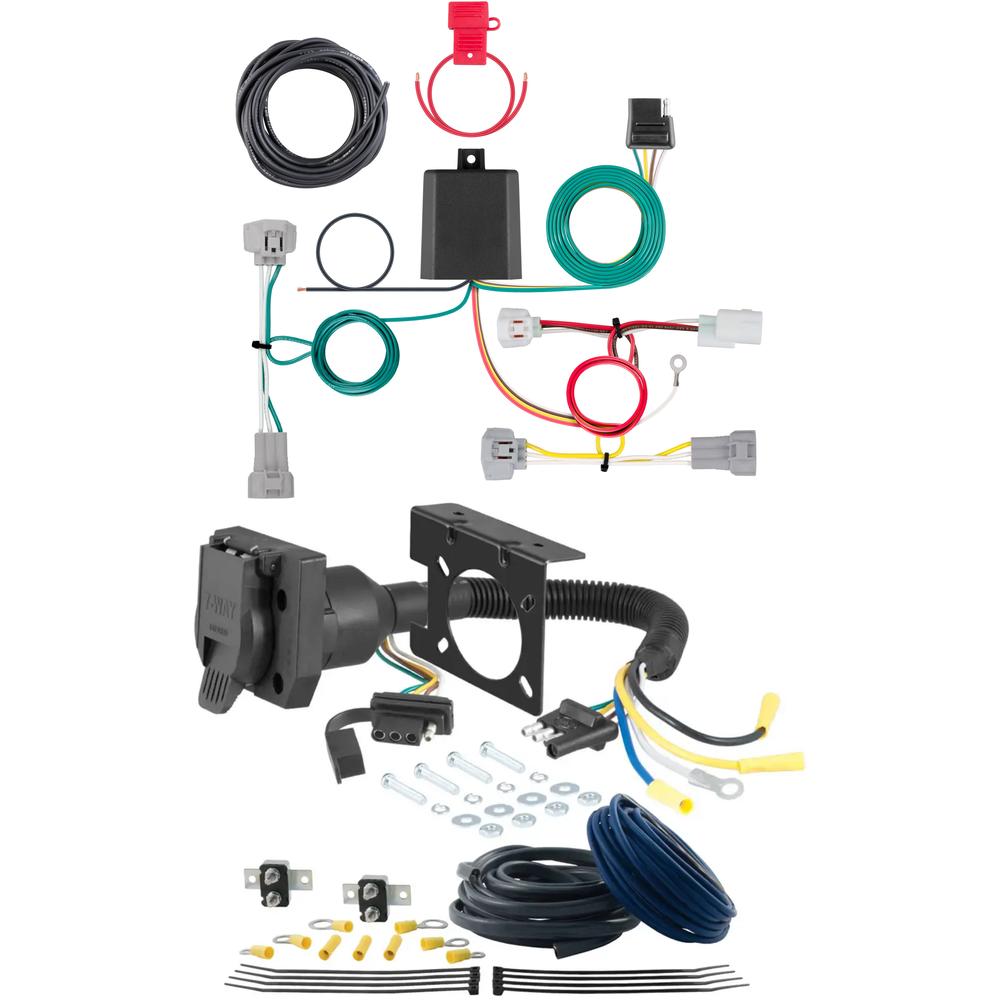

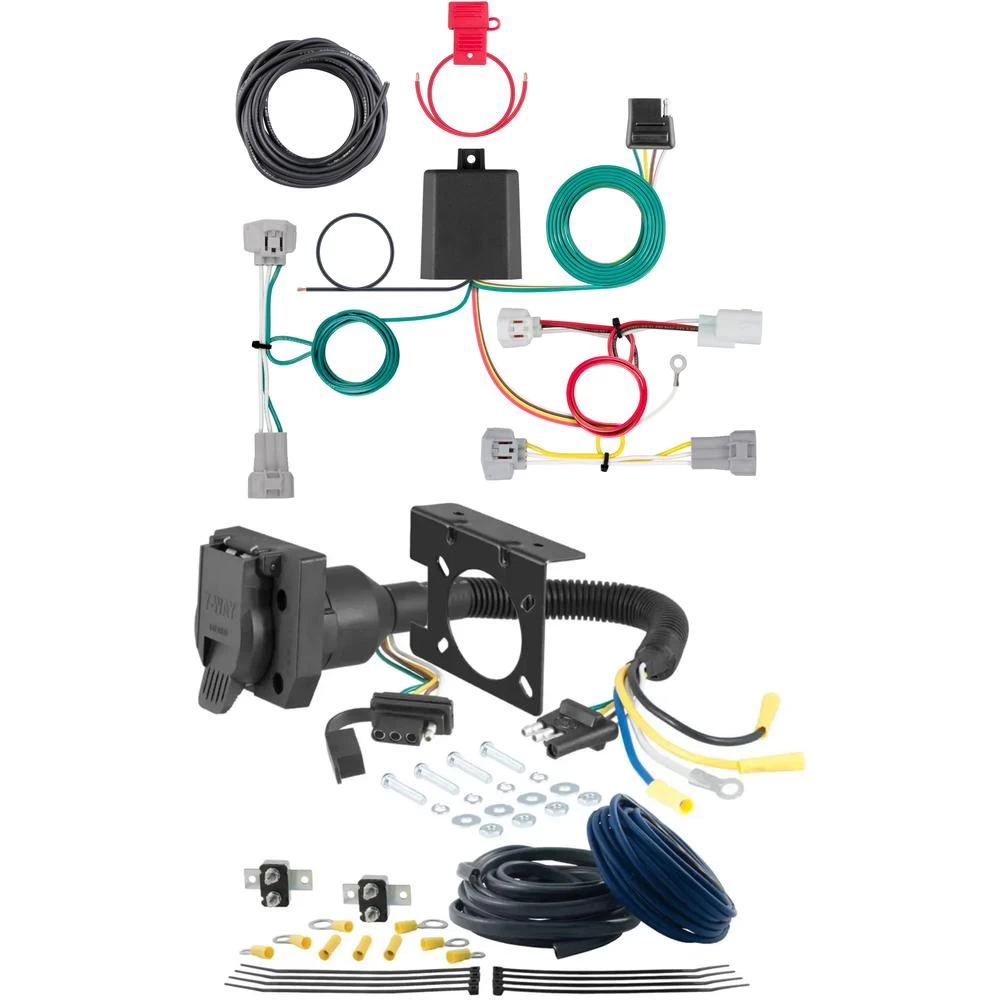

This Wiring 7-Way + Bracket Includes the Following Parts:

  • Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
  • Dual-Output Electrical Adapter (Adds 7-Way RV Blade to 4-Way Flat)
  • Trailer Brake Controller Wiring Kit (duplex undercar wires, circuit breakers, terminals & ring connectors)
  • 30-Amp Universal Circuit Breaker
  • Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023

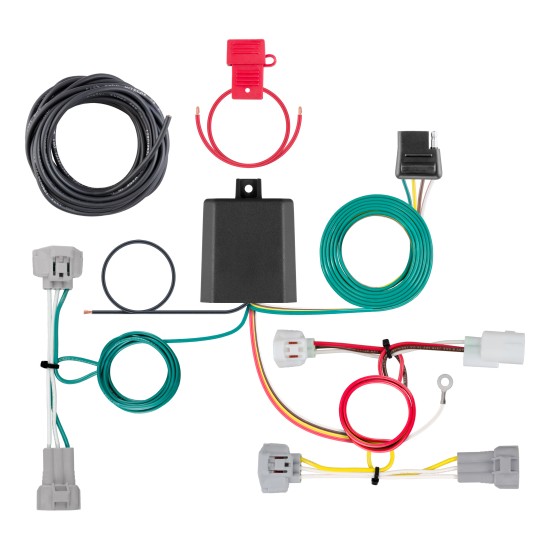

CURT 56349 Vehicle-Side Custom 4-Pin Trailer Wiring Harness

Manufactured by: Curt

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.

Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota Tacoma (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.

You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.

CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..

Features:

  • Plugs into vehicle tail light assembly to provide a 4-way flat socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Equipped with tail light converter for vehicle-trailer compatibility
  • Constructed with SMT circuitry for better performance and durability
  • Dust cover included to keep connector clean when not in use
  • Backed by a limited one-year warranty

CURT 57672 Dual-Output 4-Way Flat Vehicle-Side to 7-Way RV Blade Trailer Wiring Adapter

Manufactured by: Curt

There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match.

For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket.

It easily plugs in your vehicle's electrical socket and usually requires no additional wiring CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more This special dual-output electrical adapter is actually designed to adapt a 4-way flat vehicle socket to fit multiple trailer plugs, including a 4-way flat and a 7-way RV blade connector.

Some manual wiring is required This multipurpose socket also comes with dust covers, a mounting bracket and all necessary mounting hardware for a complete installation All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..

Features:

  • Adapts a 4-way flat socket to fit 4-way flat and 7-way RV blade trailer plugs
  • 4-way flat output connects tail lights, brake lights and turn signals
  • 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
  • Dust covers included to keep connectors clean when not in use
  • Slit loom keeps wires contained and well protected
  • Metal bracket securely mounts wiring to the vehicle or trailer hitch

CURT 51500 Electric Trailer Brake Controller Wiring Kit

Manufactured by: Curt

It takes a lot of power to stop a moving trailer, especially when that trailer is hauling livestock, construction materials, industrial equipment or other heavy-duty cargo Play it safe when you tow and give your trailer brakes the control they need with a CURT trailer brake controller and brake controller harness This brake controller wiring kit is designed for vehicles that do not have an included towing prep package.

It includes cables, ring terminals, cable ties and a circuit breaker to splice into your vehicle's wiring system and allow installation of a CURT trailer brake controller This wiring kit is compatible with systems with up to eight brakes..

Features:

  • For tow vehicles not equipped with factory tow package wiring
  • Compatible with 2, 4, 6 or 8-brake systems (1-4 axles)
  • Designed for use with CURT quick plugs #51515 or #51516
  • Brake controller and trailer connector are not included

CURT 58361 30-Amp Universal Circuit Breaker

Manufactured by: Curt

Whether you're a contractor on your way to the jobsite or just a casual fisherman heading to the boat landing, you need working trailer lights to tow safely and legally For any towing setup, CURT offers quality wiring components, including complete wiring kits, circuit breakers, wiring connectors and more This universal circuit breaker is rated for 30 amps and recommended for applications where over-current protection is required..

Features:

  • Recommended for applications where over-current protection is required

Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or call us at 877-869-6690 for expert advice and personalized service.
Default
UPC 612314563494
['Part Number 56349
Item Weight 1.900
Electrical System Type 3W
Tail Light Circuits 6.0 Amps
Turn and Brake Circuits 3.0 Amps
Note 1 Vehicle battery connection required
Warranty One-Year Limited Warranty
Note 2
Includes fuse holder, battery connection wiring and other necess 57672
UPC 612314047048
Item Weight 1.240
Warranty One-Year Limited Warranty
Note 1
Some manual wiring required', 'Part Number 51500
UPC 612314511501, 612314043378
Item Weight 2.025, 0.080
Warranty One-Year Limited Warranty
Includes 10 gauge duplex wire, 10 gauge cross-linked wire, 30-am 58361
Warranty
One-Year Limited Warranty', 'Output Type 7-Way Round Plug', 'Approx Installation Time (Minutes):85', 'Installation Difficulty:Professional']
