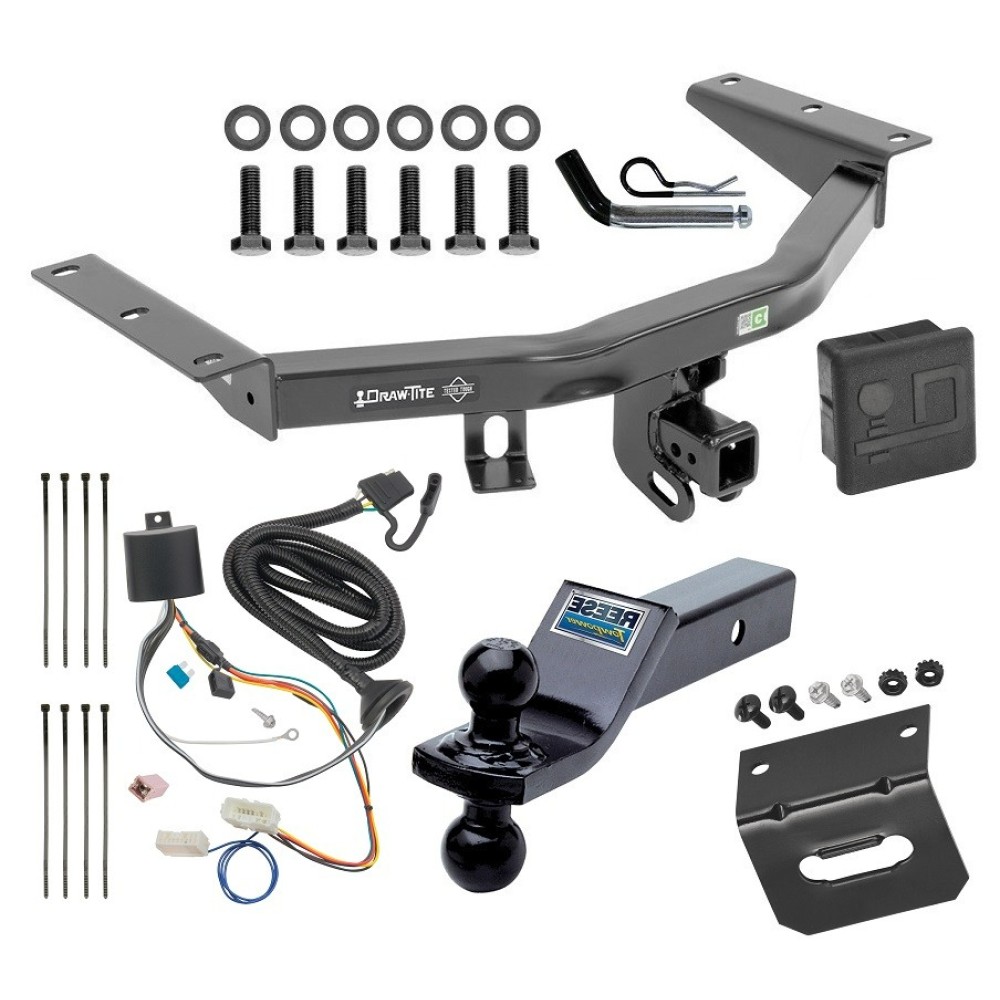

For 2016-2022 Honda Pilot Trailer Hitch Tow PKG w/ 4-Flat Wiring + Dual Ball Ball Mount 1-7/8" & 2" Trailer Balls + Pin/Clip + Wiring Bracket + Hitch Cover By Draw-Tite

This Bundle Fits The Following Vehicles:
2016-2022 Honda, Pilot, All Styles

This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Dual Ball Ball Mount 1-7/8 inch & 2 inch Trailer Balls
Pin/Clip
Wiring Bracket
Hitch Cover

List of fitment years: 2016, 2017, 2018, 2019, 2020, 2021, 2022

The hitch is hidden behind your bumper, and does not require drilling

Class 4 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class IV trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. The legacy brand’s Class IV receiver hitches are rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Acura MDX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, RV, boat trailer, or utility trailer. The options are endless! Draw-Tite Class IV custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re hauling cargo to and from the job site, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 6,000 lbs. GTW and up to 900 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 900 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Acura MDX, Honda Pilot
• EXCLUSIONS: This Draw-Tite Class IV hitch does NOT fit the following: Except w/Full Size Spare Tire

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 5 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

Dual Ball Trailer Hitch Ball Mount, (1-7/8 in., 2 in.Trailer Balls), Fits 2 in. Receiver, 6,000 lbs.Capacity, Black Manufactured by: Reese Towpower
When a traditional ball mount just won’t do, turn to a REESE® specialty ball mount. REESE’s extensive line of specialty ball mounts are made to handle the tough towing jobs, with offerings ranging from high-capacity tri-ball mounts, to tow hooks, recovery rings, and everything in between. This group of ball mounts allow you to tackle heavier, bulkier, unique towing needs with shanks that still fit a 2-inch receiver tube, so you can use the hitch you already have. REESE specialty ball mounts come in a variety of styles and weight capacities so you can be sure to find the one that’s right for your job. With so many options and easy-to-understand instructions, it’s no wonder REESE has been the leader in heavy-duty towing for nearly 70 years!
• Fits 2 in. Receiver Tube Opening
• 6,000 lbs. Capacity
• Hitch Ball Capacity: 1-7/8 in. = 2,000 lbs., 2 in. = 6,000 lbs.
• Black Powder Coat Finish

Trailer Hitch Pin & Clip, Fits 2 in. Receiver, 5/8 in. Pin Diameter Manufactured by: Reese Towpower
REESE Towpower 5/8 In. pin and clip is designed to fit Class III / IV, Reese 33, 36, 36, 37, 44, and 51 series hitches with 2 In. hitch boxes. This pin is 5/8 inch in diameter and includes the spring cotter pin. The PVC comfort grip is designed to protect the hands and allow for a better grip while inserting or removing the pin and clip.
• Black comfort grip on both pin and clip
• 5/8 In. diameter pin and clip set
• Easier to pick up
• Always keep extra pin and clips on hand for safe towing
• Class III and IV
• 1 year limited warranty

Mounting Bracket, 4-Way Flat Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Trailer Hitch Tube Cover, Fits 2 in. Receiver, Black Manufactured by: Draw-Tite
Having a trailer hitch on your vehicle opens up a world of opportunities for hauling and carrying accessories. But what happens to the receiver tube when you take the ball mount or other hitch-mounted accessory out? If left open to the elements, the receiver tube can collect all sorts of debris. Rain, snow, dirt, road salt, you name it can get in and can scratch or even clog the tube, making it harder to use next time you want to tow. Thankfully, Draw-Tite® has several receiver tube covers to choose from to keep your receiver tube opening clean, dry, and protected for excessive wear. Each cover is designed to simply push into the hitch opening and stay in place. No extra hardware needed. So protect your investment with a stylish Draw-Tite receiver tube cover today!
• Fits 2 in. receiver tube openings
• For use with Class III/IV hitches
• Made of polystyrene construction
• Guards against leg and shin injuries
• Prolongs the life of your hitch
