$471.76
  • Stock: In Stock
  • Brand: Curt
  • Model: 15802-CH1501

Applies to this product only

This Trailer Tow Hitch Fits The Following Vehicles:

2017 - 2024 Ford F-250 Super Duty w/o Factory 7-Way


This Trailer Tow Hitch Includes the Following Parts:

  • Commercial Duty Class 5 Hitch, 2-1/2" (Easy Bolt-On, No Drilling)
  • Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024


CURT 15802 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver

Manufactured by: Curt

In the world of commercial towing, more is expected A job cannot be completed if the equipment cannot handle the workload That is why CURT developed the Commercial Duty class 5 trailer hitch.

Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component) This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs.

and a tongue weight capacity of 2,700 lbs It is designed to be a custom trailer hitch for certain years of the Ford F250 Super Duty, F350 Super Duty and F450 Super Duty (to verify your vehicle compatibility, see application info) All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories.

They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish They also mount with grade-8 hardware, included with each hitch..

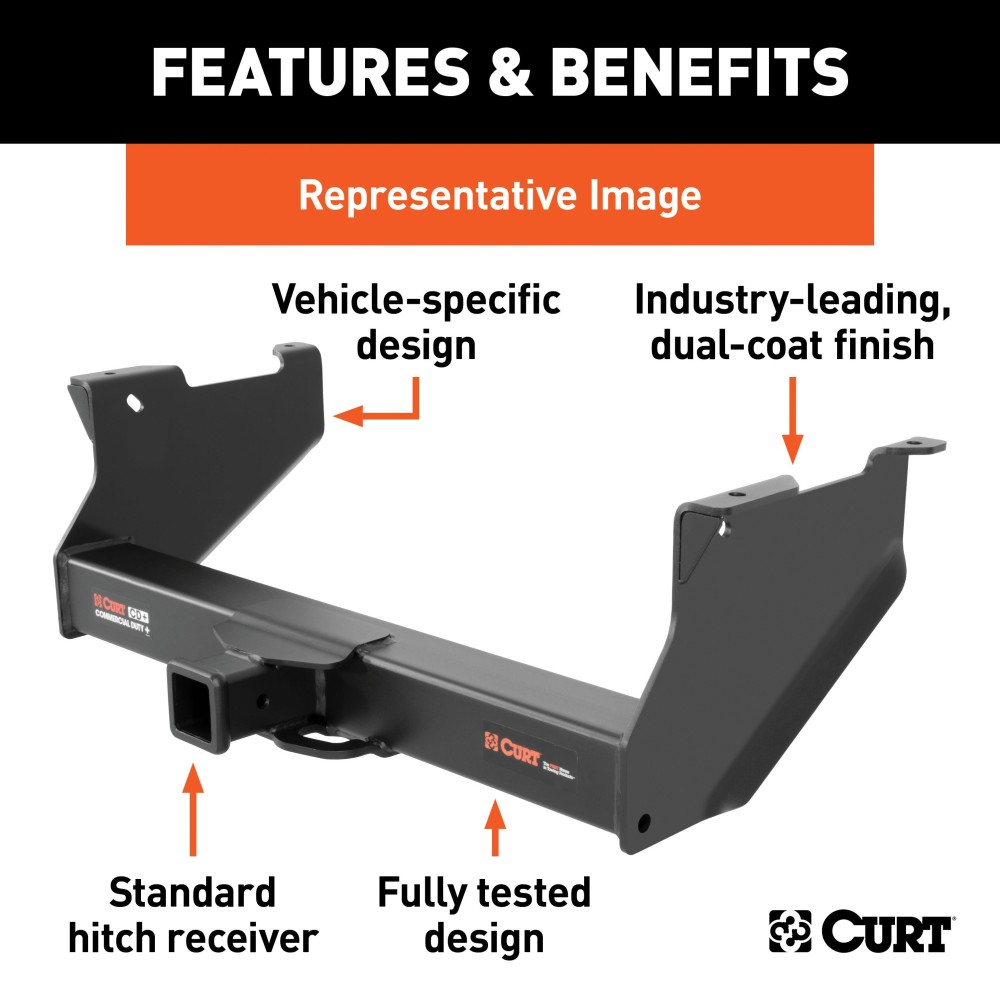

Features:

  • Rated to 20,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
  • Compatible with weight distribution hitch (20,000 lbs. WD / 2,700 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Features wide safety chain openings for heavy-duty hooks

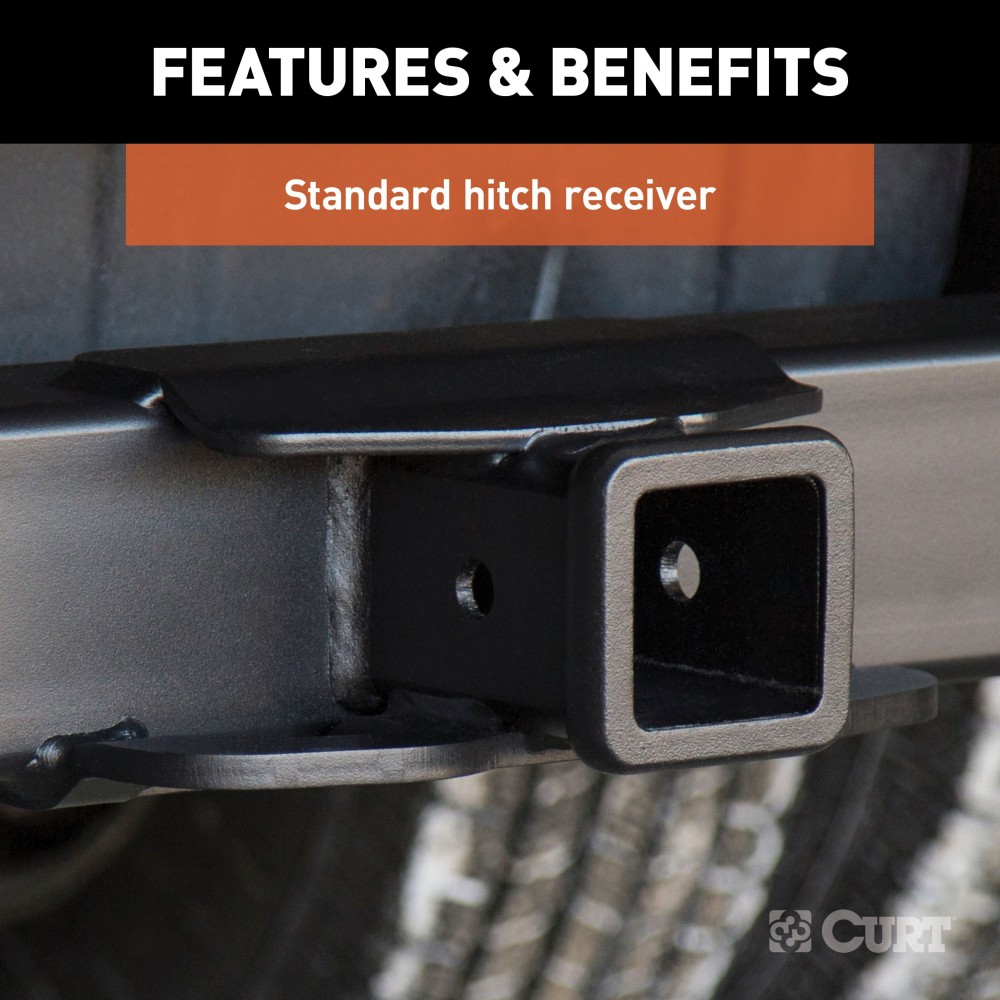

  • Equipped with an open-back receiver for easy cleaning
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)

Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or call us at 877-869-6690 for expert advice and personalized service.
Default
UPC 612314158027
Item Weight 108.950
Country of Manufacture US
Main Body Shape Square
Receiver Tube Size 2-1/2 IN
WC / TW (Pounds) 2,700 LB / 20,000 LB
WD / WDTW (Pounds) 20,000 LB / 2,700 LB
Weight Carrying Capacity (Pounds) 20,000 LB
WC Tongue Weight (Pounds) 2,700 LB
Installation Difficulty Novice
Installation Time Exact (Minutes) 30
Weight Distribution (Pounds) 20,000 LB
Note 1 Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
WD Tongue Weight (Pounds) 2,700 LB
Note 2 Includes strong, grade-8 installation hardware
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Note 3 Requires factory bumper for installation
