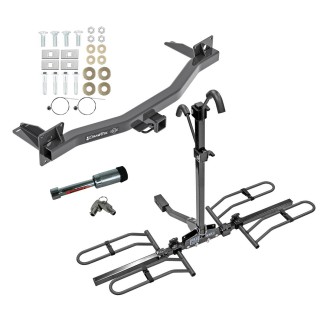

For 2018‑2024 Buick Enclave Trailer Hitch Tow PKG w/ 2 Bike Plaform Style Carrier Rack + Hitch Lock By Draw‑Tite
Model: 76184 63134 7006900This Bundle Fits The Following Vehicles:
2018-2024 Buick, Enclave, All Styles
This Bundle Includes the Following Parts:
Trailer Hitch
2 Bike Plaform Style Carrier Rack
Hitch Lock
List of fitment years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Chevrolet Traverse and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,000 lbs. WD and 750 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Buick Enclave, Chevrolet Traverse
Q-Slot™ Trailer Hitch Bike Carrier, 2-Bike, 1-1/4 in. and 2 in. Receiver Manufactured by: Reese Explore
The REESE EXPLORE steel hitch mount bike rack holds up to two bicycles. The platform design holds bikes in the upright position. The support tube with adjustable padded hooks support bikes by the frame. Rear wheels are secured with hook and loop straps. The rise shank provides greater ground clearance. The support tube folds down when not in use. Versatile design fits 1 1/4 In. and 2 In. receivers Weight capacity is 90 lbs.
• Fits 1-1/4 inch and 2 inch receivers
• Will not damage high-performance frames
• Fully adjustable wheel slots
• Center tube tilts for rear bike access
• A-Coat and powder coat rust resistant finish
• Rise shank for extra road clearance
• Padded contact points
• Tilting vertical stabilizer
• Bolt-on 2 inch shank adapter
• Compact storage
Trailer Hitch Lock, Fits 2 in. Receiver, 5/8 in. Pin Diameter, Dogbone Style Manufactured by: Reese Towpower
REESE Towpower barrel or dog bone style receiver lock is designed to provide excellent protection for trailers. It features a push-button key lock mechanism, and a rubber cover to keep out dirt and debris.
• Popular dogbone shaped receiver lock
• 5/8 In. diameter
• Push button lock
• Knurled barrel
• Rubber dust cap
• Two keys
• 1 year limited warranty
$394 25 $683.20 42% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$683.20 $394 25
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $98.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76184 63134 7006900
- Includes: Class 3 Trailer Tow Hitch, Q-Slot Trailer Tow Hitch Bike Carrier, Trailer Tow Hitch Lock
Compatibility Chart
Description
Get Expert Help
For 2018-2024 Buick Enclave Trailer Hitch Tow PKG w/ 2 Bike Plaform Style Carrier Rack + Hitch Lock By Draw-Tite Install Notes
Installation Instructions for Trailer Hitch #76184, #84184, and #CQT76184
Part Numbers:
- 76184
- 84184
- CQT76184
Applications:
- Years: 2018–Current
- Make and Models:
- Chevrolet Traverse
- Buick Enclave
Visit the manufacturer’s website for the most up-to-date information regarding application years and trim levels.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7 mm, 15 mm, 3/4"
- 6" Socket Extension
- Flat Head Screwdriver
- Plastic Trim Tools
- T15 and T20 Torx Bits
Step-by-Step Instructions:
1. Remove Fascia (Chevrolet Traverse):
- Open the tailgate and remove (4) plastic covers below the taillights.
- Remove the (4) screws behind the covers using a 7 mm socket, (2) per side.
- Remove (2) screws connecting the bottom edge of the fascia to metal support tabs using a T20 socket.
- Remove (8) screws connecting the wheel well liner to the fascia using a T15 socket, (4) per side.
- Pull back the wheel well trim and remove (2) screws connecting the fascia to the vehicle body using a 7 mm socket, (1) per side.
- Starting from the wheel well, gently pull off the fascia. Disconnect any attached wires.
2. Remove Fascia (Buick Enclave):
- Using a T15 Torx bit, remove (2) screws from the bottom of the fascia.
- Using a flat head screwdriver, remove (2) bolt covers, then remove the (2) bolts below the taillight with a 7 mm socket, per side.
- Use a T20 Torx bit to remove (1) screw below the taillight, per side.
- Remove (4) screws from the wheel well liner with a T15 Torx bit, per side.
- Use a 7 mm socket to remove (1) vertically attached bolt under the wheel well liner, per side.
- Starting from the wheel well, gently pull off the fascia and disconnect any attached wires.
3. Support Exhaust & Remove Bumper Beam:
- Remove (4) M10 nuts from the top bumper attachments with a 15 mm socket, (2) per side.
- Remove (4) M10 bolts from the bottom bumper attachments with a 15 mm socket, (2) per side.
- Support the exhaust system, as the bolts also attach the exhaust hangers.
- Return the bumper and bolts to the vehicle owner.
4. Install Hitch:
- Raise the hitch into position over the bumper studs and reinstall the nuts removed earlier.
- Raise the exhaust hangers into position and install M10 bolts with conical washers (teeth side toward the hitch).
- Feed carriage bolts and spacers into the vehicle frame through the access hole in the hitch using fish wires.
- Remove the fish wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the carriage bolts.
5. Torque Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M10 fasteners to 38 lb-ft (52 N·m).
6. Reinstall Fascia:
- Reinstall the exhaust muffler and fascia.
- Connect the electrical harness while reinstalling the fascia.
Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 1.5", GR5)
- 4 × Spacer Blocks (1/4" × 1" × 2")
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13, GR5)
- 4 × Bolts (M10 × 1.5 × 45 mm, CL10.9)
- 4 × Conical Washers (3/8")
- 4 × Fish Wires (1/2")
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
- Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or hitch ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 5,000 lbs (2,270 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 750 lbs (340 kg)
- Installation Time: Approximately 75 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
