For 2018‑2024 Buick Enclave Trailer Hitch Tow PKG w/ 4‑Flat Wiring Harness + Dual Ball Ball Mount 1‑7/8" & 2" Trailer Balls + Pin/Clip + Wiring Bracket By Draw‑Tite
Model: 76184 118761 21511 7009200 118144This Bundle Fits The Following Vehicles:
2018-2024 Buick, Enclave, All Styles

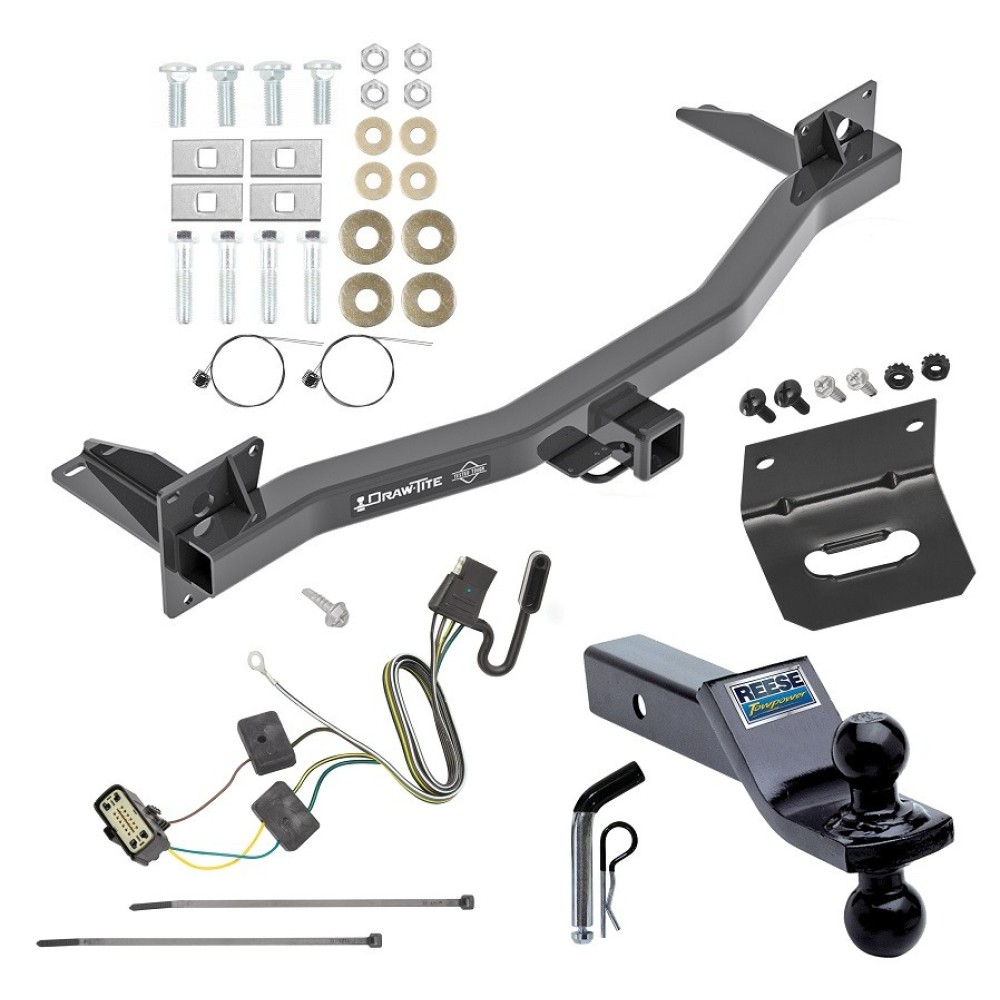

This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring Harness
Dual Ball Ball Mount 1-7/8 inch & 2 inch Trailer Balls
Pin/Clip
Wiring Bracket
List of fitment years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Chevrolet Traverse and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 5,000 lbs. WD and 750 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Buick Enclave, Chevrolet Traverse
T-One® T-Connector Harness, 4-Way Flat Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed
Dual Ball Trailer Hitch Ball Mount, (1-7/8 in., 2 in.Trailer Balls), Fits 2 in. Receiver, 6,000 lbs.Capacity, Black Manufactured by: Reese Towpower
When a traditional ball mount just won’t do, turn to a REESE® specialty ball mount. REESE’s extensive line of specialty ball mounts are made to handle the tough towing jobs, with offerings ranging from high-capacity tri-ball mounts, to tow hooks, recovery rings, and everything in between. This group of ball mounts allow you to tackle heavier, bulkier, unique towing needs with shanks that still fit a 2-inch receiver tube, so you can use the hitch you already have. REESE specialty ball mounts come in a variety of styles and weight capacities so you can be sure to find the one that’s right for your job. With so many options and easy-to-understand instructions, it’s no wonder REESE has been the leader in heavy-duty towing for nearly 70 years!
• Fits 2 in. Receiver Tube Opening
• 6,000 lbs. Capacity
• Hitch Ball Capacity: 1-7/8 in. = 2,000 lbs., 2 in. = 6,000 lbs.
• Black Powder Coat Finish
Trailer Hitch Pin & Clip, Fits 2 in. Receiver, 5/8 in. Pin Diameter Manufactured by: Reese Towpower
REESE Towpower 5/8 In. pin and clip is designed to fit Class III / IV, Reese 33, 36, 36, 37, 44, and 51 series hitches with 2 In. hitch boxes. This pin is 5/8 inch in diameter and includes the spring cotter pin. The PVC comfort grip is designed to protect the hands and allow for a better grip while inserting or removing the pin and clip.
• Black comfort grip on both pin and clip
• 5/8 In. diameter pin and clip set
• Easier to pick up
• Always keep extra pin and clips on hand for safe towing
• Class III and IV
• 1 year limited warranty
Mounting Bracket, 4-Way Flat Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging
$306 85 $493.81 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$493.81 $306 85
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $76.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76184 118761 21511 7009200 118144
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Dual Ball Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Pin & Clip, Mounting Bracket
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2018-2024 Buick Enclave Trailer Hitch Tow PKG w/ 4-Flat Wiring Harness + Dual Ball Ball Mount 1-7/8" & 2" Trailer Balls + Pin/Clip + Wiring Bracket By Draw-Tite Install Notes
Installation Instructions for Trailer Hitch #76184, #84184, and #CQT76184
Part Numbers:
- 76184
- 84184
- CQT76184
Applications:
- Years: 2018–Current
- Make and Models:
- Chevrolet Traverse
- Buick Enclave
Visit the manufacturer’s website for the most up-to-date information regarding application years and trim levels.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7 mm, 15 mm, 3/4"
- 6" Socket Extension
- Flat Head Screwdriver
- Plastic Trim Tools
- T15 and T20 Torx Bits
Step-by-Step Instructions:
1. Remove Fascia (Chevrolet Traverse):
- Open the tailgate and remove (4) plastic covers below the taillights.
- Remove the (4) screws behind the covers using a 7 mm socket, (2) per side.
- Remove (2) screws connecting the bottom edge of the fascia to metal support tabs using a T20 socket.
- Remove (8) screws connecting the wheel well liner to the fascia using a T15 socket, (4) per side.
- Pull back the wheel well trim and remove (2) screws connecting the fascia to the vehicle body using a 7 mm socket, (1) per side.
- Starting from the wheel well, gently pull off the fascia. Disconnect any attached wires.
2. Remove Fascia (Buick Enclave):
- Using a T15 Torx bit, remove (2) screws from the bottom of the fascia.
- Using a flat head screwdriver, remove (2) bolt covers, then remove the (2) bolts below the taillight with a 7 mm socket, per side.
- Use a T20 Torx bit to remove (1) screw below the taillight, per side.
- Remove (4) screws from the wheel well liner with a T15 Torx bit, per side.
- Use a 7 mm socket to remove (1) vertically attached bolt under the wheel well liner, per side.
- Starting from the wheel well, gently pull off the fascia and disconnect any attached wires.
3. Support Exhaust & Remove Bumper Beam:
- Remove (4) M10 nuts from the top bumper attachments with a 15 mm socket, (2) per side.
- Remove (4) M10 bolts from the bottom bumper attachments with a 15 mm socket, (2) per side.
- Support the exhaust system, as the bolts also attach the exhaust hangers.
- Return the bumper and bolts to the vehicle owner.
4. Install Hitch:
- Raise the hitch into position over the bumper studs and reinstall the nuts removed earlier.
- Raise the exhaust hangers into position and install M10 bolts with conical washers (teeth side toward the hitch).
- Feed carriage bolts and spacers into the vehicle frame through the access hole in the hitch using fish wires.
- Remove the fish wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the carriage bolts.
5. Torque Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
- Tighten all M10 fasteners to 38 lb-ft (52 N·m).
6. Reinstall Fascia:
- Reinstall the exhaust muffler and fascia.
- Connect the electrical harness while reinstalling the fascia.
Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 1.5", GR5)
- 4 × Spacer Blocks (1/4" × 1" × 2")
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13, GR5)
- 4 × Bolts (M10 × 1.5 × 45 mm, CL10.9)
- 4 × Conical Washers (3/8")
- 4 × Fish Wires (1/2")
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
- Plug any exposed holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or hitch ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 5,000 lbs (2,270 kg)
- Max Tongue Weight (Weight Carrying/Weight Distributing): 750 lbs (340 kg)
- Installation Time: Approximately 75 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
Technical Support:
For assistance, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Chevrolet Traverse
Part Numbers:
- 118761
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle’s Tow Plug:
- Underneath the vehicle on the driver’s side, locate the vehicle’s tow plug.
- Disconnect the mating protective cover and discard it.
- Connect the tow plug harness into the mating harness.
- Ensure the mating surfaces of the connectors match, and all connector surfaces are clean and free of dirt.
- Be careful not to damage the locking tabs and ensure the connectors are fully inserted with locking tabs in place.
-
Route the T-Connector Harness:
- Route the T-Connector harness rearward to the back of the fascia of the bumper.
Warning: Be careful to avoid hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.
-
Secure the 4-Flat Tow Harness:
- Secure the 4-flat tow harness to the hitch. (Bracket not included.)
- Use the provided cable ties to secure the remainder of the T-One® T-Connector harness under the bumper, ensuring the wires avoid any areas that could cut or pinch them.
-
Test and Verify Installation:
- Ensure all connections are complete for the T-One® T-Connector to function properly.
- Test the installation using a test light or trailer.
- For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Safety Checks:
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and use all safety precautions during installation.
- Read and follow all warnings and instructions included with the purchase before beginning installation. Keep for future reference.
- Do not exceed the lower of the towing manufacturer’s rating or specific amperage ratings stated on the product.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
