For 2019-2024 Audi Q5 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha BRAKE-EVN Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2019-2024 Audi Q5

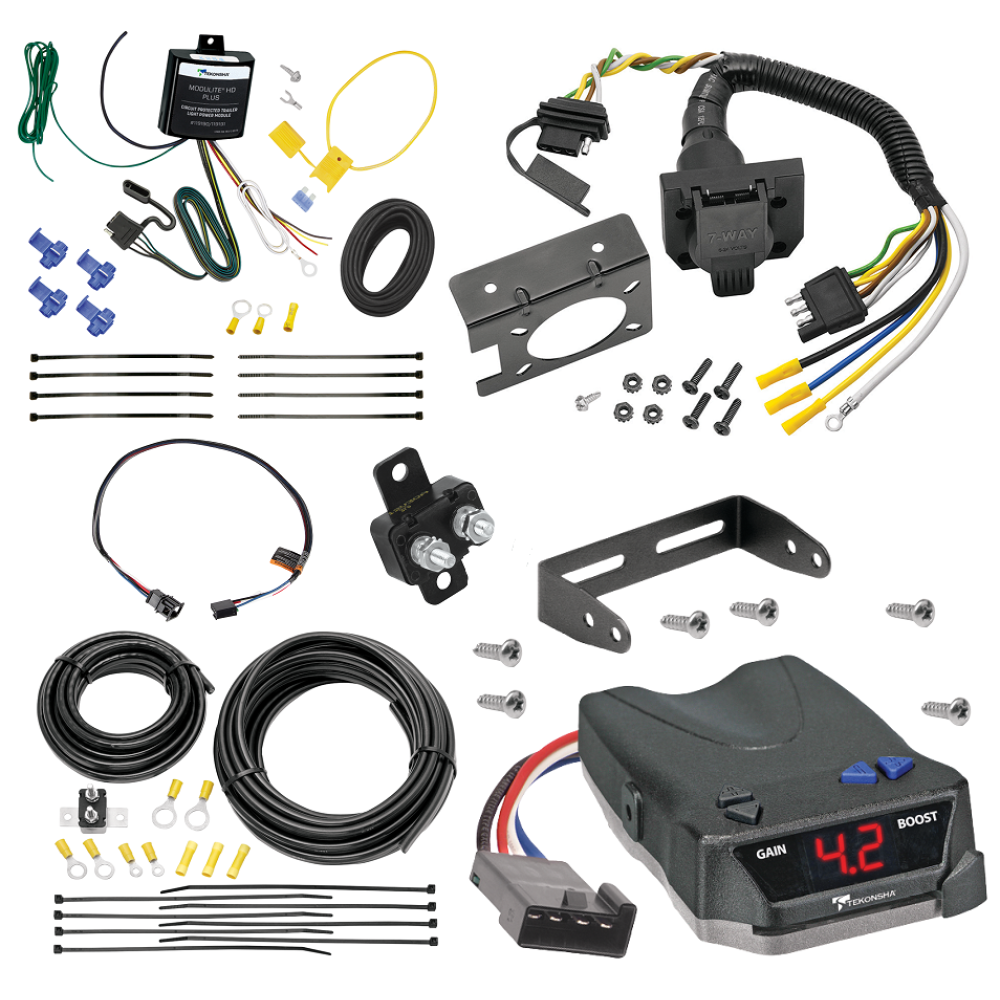

This Bundle Includes the Following Parts:

1. 7-Way RV Wiring

2. Tekonsha BRAKE-EVN Brake Control

3. Plug & Play BC Adapter

List of fitment years:

2019, 2020, 2021, 2022, 2023, 2024

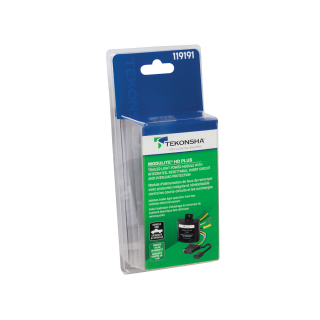

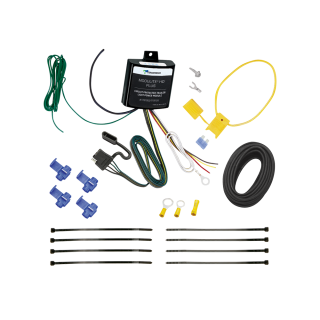

ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha

• The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
• Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
• Will work with either LED/Incandescent bulbs (vehicle & trailer)
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• The trailer brakes will override the hazard lamps when the brake is activated
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
• Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
• Will not work with vehicles with low-side switch
• Can be used on a 2 wire or 3 wire system
• All solid-state components in potted encapsulation
• Includes integrated protective cover

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

• REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.
• Provide versatility in going from 4 way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

BRAKE-EVN™ Proportional Brake Controller for Trailers with 1-4 Axles, Black Manufactured by: Tekonsha

The Tekonsha BRAKE-EVN brake controller offers advanced proportional braking by applying brake pressure to match the vehicles deceleration rate. Proportional braking gets you get smoother stops that traditional time based controls. The boost feature gives the ability to apply more initial braking at the onset of stopping when towing heavier loads. When adjusted properly for your load, proportional brake controls can even extend the life of your vehicles brakes. The large LED display is easy to see when adjusting the control to handle the weight of your loaded or unloaded trailer. The BRAKE-EVN brake control can handle up to brake 4 axles and offers a simple plug in installation option, so be sure to get the proper factory harness for your vehicle. The perfect choice for light or heavy trailer loads.

• 1-4 Axle capacity
• Boost feature gives ability to apply more initial trailer braking
• Reverse battery protection
• No leveling required
• Diagnostics features incorporated in easy to read LED display
• Plug & Play feature allows for quick and easy connections
• Small compact design designed for todays dashes
• Simple push button adjustments

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.

• Plug & Play
• O.E.M. Wiring Harness
• Audi, Porsche and Volkswagen
