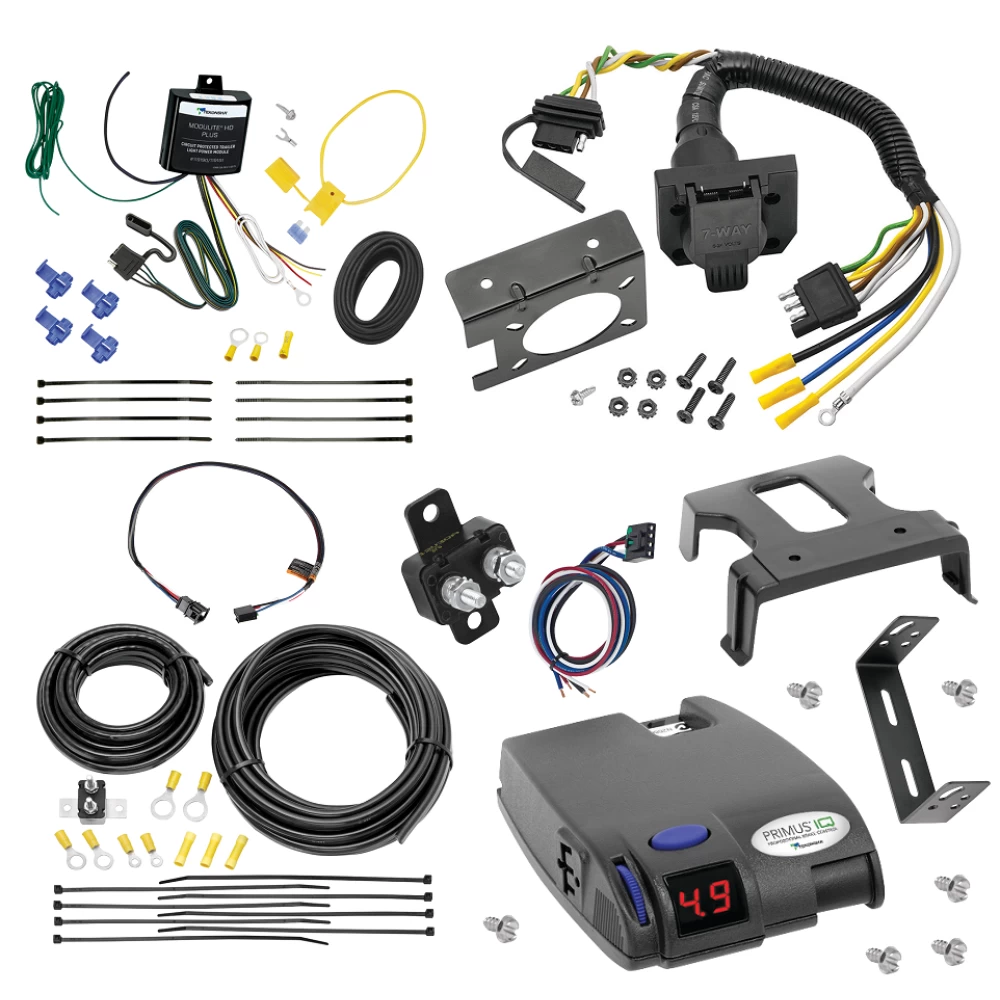

For 2019-2024 Audi Q5 7 Way Trailer Wiring RV 7 Pin 7 Blade + Tekonsha Primus IQ Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2019-2024 Audi Q5

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Tekonsha Primus IQ Brake Control
• Plug & Play BC Adapter

List of Fitment Years:

2019, 2020, 2021, 2022, 2023, 2024

ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha

• The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
• Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
• Will work with either LED/Incandescent bulbs (vehicle & trailer)
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• The trailer brakes will override the hazard lamps when the brake is activated
• Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
• Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
• Will not work with vehicles with low-side switch
• Can be used on a 2 wire or 3 wire system
• All solid-state components in potted encapsulation
• Includes integrated protective cover

Wiring Adapter, 7-Way Flat to 4-Way Flat Manufactured by: Reese Towpower

REESE Towpower dual port adapter offers the most convenient way to up-grade your vehicle from a standard 4-way flat connector to have both the versatility of a 4-way flat along with the capabilities of the 7-way round connector. The simple wiring converts the vehicle's 4-way flat to a flexible, two port connector, offering both the 4-way flat, 7-way round connector.

• Provide versatility in going from 4 way flat to 7-Way round blade
• Sealed connection increases protection against moisture & corrosion
• Low profile design provides factory installed appearance
• Built with heavy duty rugged materials
• Included 4-Flat dust cover and heavy duty spring on 7-Way connector
• Butt connectors pre attached for quicker wiring
• Mounting bracket included
• Mounting hardware included

Trailer Brake Controller Installation Kit, Vehicle and Trailer, Wiring Only Manufactured by: Tow Ready

Includes all necessary parts required to completely install all brake controls. No other parts are necessary.

Circuit Breaker, 30 Amp Manufactured by: Tekonsha

Used in 6, 12 and 24V DC applications. Automotive, R.V., air conditioners, battery chargers, any application requiring over-current protection. Non-corrosive molded cover eliminates grounding when operating against a fault line. Includes mounting bracket and installed nuts and washers.

Primus® IQ, Proportional Brake Controller for Trailers with 1-3 Axles, Grey Manufactured by: Tekonsha

Utilizing the primary sensor technology from Prodigy®, Primus®IQ now includes the Boost feature that gives users the ability to apply more initial trailer braking when towing heavier trailers. It works proportionally in reverse for backing into tough spots and includes a snap-in dash mounting clip and removable electrical connector that allows the unit to be quickly stored when not in use. You will appreciate the digital readout depicting a secure electrical connection, amount of voltage delivery to the trailer brakes and diagnostic features incorporated in the LED display.

• Utilizes Plug-N-Play port for 2-plug adapters
• Self-diagnostics features will illuminate LED readout when issues occur
• Includes a Boost feature
• Works proportionally in reverse
• Snap-in dash mounting clip and hardware included
• Digital LED readout
• Limited lifetime warranty

Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.

• Plug & Play
• O.E.M. Wiring Harness
• Audi, Porsche and Volkswagen
