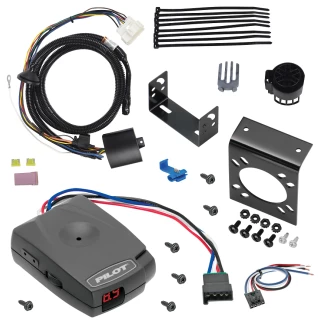

For 2019-2024 Honda Passport 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Wiring Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2019-2024 Honda Passport

This Bundle Includes the Following Parts:

• Tow Harness, 7-Way, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
• Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series
• Trailer Brake Controller Installation Kit, Universal Fit, 12 in. Length Manufactured by: Tekonsha

List of fitment years: 2019, 2020, 2021, 2022, 2023, 2024

Tow Harness, 7-Way, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha

T-One Connectors require no splicing of vehicle wires. Simply locate your vehicle's wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.

• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging
• Stop/Turn circuit capacity of 4.2 Amps
• Taillight circuit capacity of 12 Amps

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

• Large easy to read dual digital display shows:
• Properly wired control
• Voltage output to brakes (vs. a percentage)
• Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty

Trailer Brake Controller Installation Kit, Universal Fit, 12 in. Length Manufactured by: Tekonsha

This universal harness is designed to mate with any Tekonsha brake controller. Simply wire in the harness and then plug into the controller to complete installation. This harness makes it easy to move the brake controller from one vehicle to another by just unplugging.

• OEM style wiring harness
• Quick and easy plug in connections
• Allows controller to be unplug and moved to other vehicles
• Color coded wire match brake control standards
• Works on time proportional and time based controls
• Positive locking connector stays connected when plug in tightly
• Simple do it yourself instructions on every package
• Fits REESE Towpower and Tekonsha brake controllers
