$73.48
  • Stock: In Stock
  • Brand: Curt
  • Model: 56431 58290-CW1820

Applies to this product only

This Wiring 7-Way + Bracket Fits The Following Vehicles:

2019 - 2023 Ford Ranger All Models

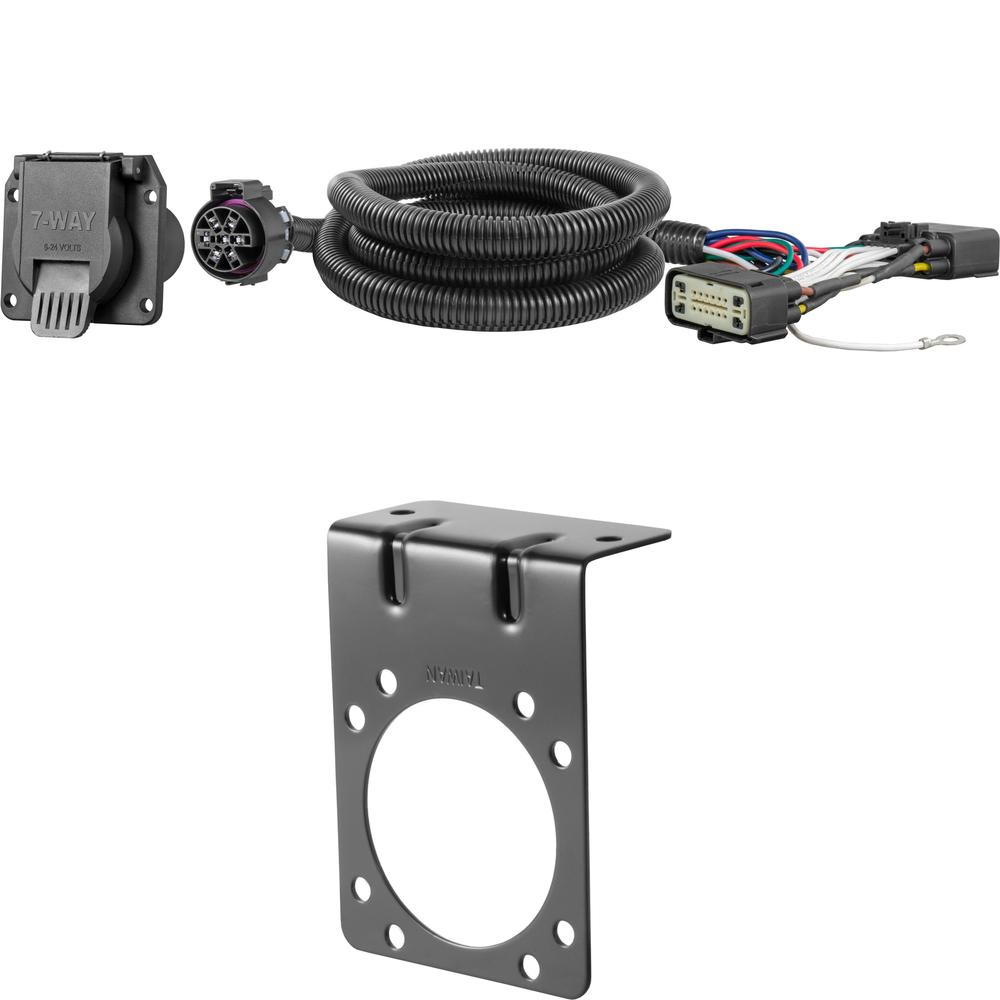

This Wiring 7-Way + Bracket Includes the Following Parts:

  • Custom Wiring Harness, 7-Way RV Blade Output (Plug & Play)
  • Connector Mounting Bracket for 7-Way RV Blade (Black)
  • Installation instructions, schematics, diagrams, and hardware (if required).

List of Fitment Years:

2019, 2020, 2021, 2022, 2023

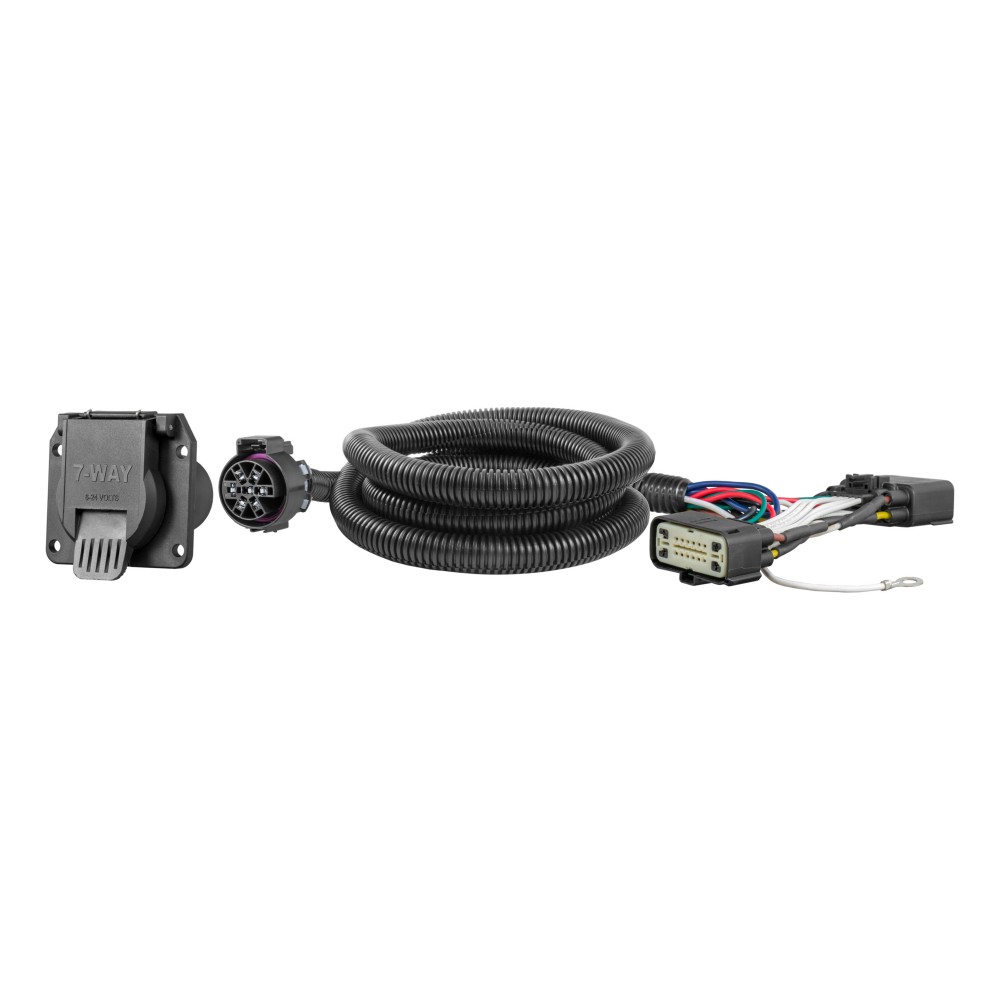

CURT 56431 Vehicle-Side Custom RV Blade 7-Pin Trailer Wiring Harness

Manufactured by: Curt

CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing setup If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that plugs into your vehicle's electrical system and provides a standard trailer wiring connection.

This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular harness provides a 7-way RV blade connector socket and is designed to be a custom wiring harness for certain years of the Ford Ranger (see application info to verify fitment).

It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming.

It takes a solid connection and the right amount of power..

Features:

  • Plugs into vehicle tail light assembly to provide a 7-way RV blade socket
  • Simple plug-and-play design eliminates the need for cutting or splicing
  • 7-way connects tail, brake, reverse, turn signals, brakes and auxiliary power
  • Spring-loaded dust cover keeps connector clean when not in use
  • Slit loom keeps wires contained and well protected
  • Backed by a limited one-year warranty

CURT 58290 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 7-Way RV Blade

Manufactured by: Curt

CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around They can get tangled up with cargo and even damaged.

An electrical connector left to hang off the back end of your vehicle is an even greater hazard Secure, protect and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 7-way RV blade socket.

It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch When it comes to plugging in your trailer lights, it pays not to skimp out CURT electrical is the smart way to ensure that your trailer lights and electrical systems are prepared for the road ahead.

Keep the power flowing, no matter where your adventures take you, with quality electrical products from CURT..

Features:

  • Securely mounts 7-way RV blade connector sockets
  • Allows for attachment to the vehicle or trailer hitch
  • Multiple screw holes offer flexible mounting options
  • Constructed from high-strength steel
  • Protected by a durable gloss black finish

Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.

Order today or call us at 877-869-6690 for expert advice and personalized service.
Default
UPC 612314564316
['Part Number 56431
Item Weight 1.500
Tail Light Circuits 10.0 Amps
Turn and Brake Circuits 20.0 Amps
Warranty One-Year Limited Warranty
Note 1
Mounting hardware not included (#58000 recommended)', 'Part Numb 58290
UPC 612314929009
Item Weight 0.200
Warranty
Limited Lifetime Warranty (One-Year Finish, One-Year Parts)', 'O 7-Way RV Blade', 'Approx Installation Time (Minutes):10', 'Installation Difficulty:Advanced']

Write a review

Note: HTML is not translated!
Rating
Bad Good
File Size
56431_INS.pdf 520.55KB Download
