For 2019-2023 Subaru Ascent 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Plug & Play Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2019-2023 Subaru Ascent

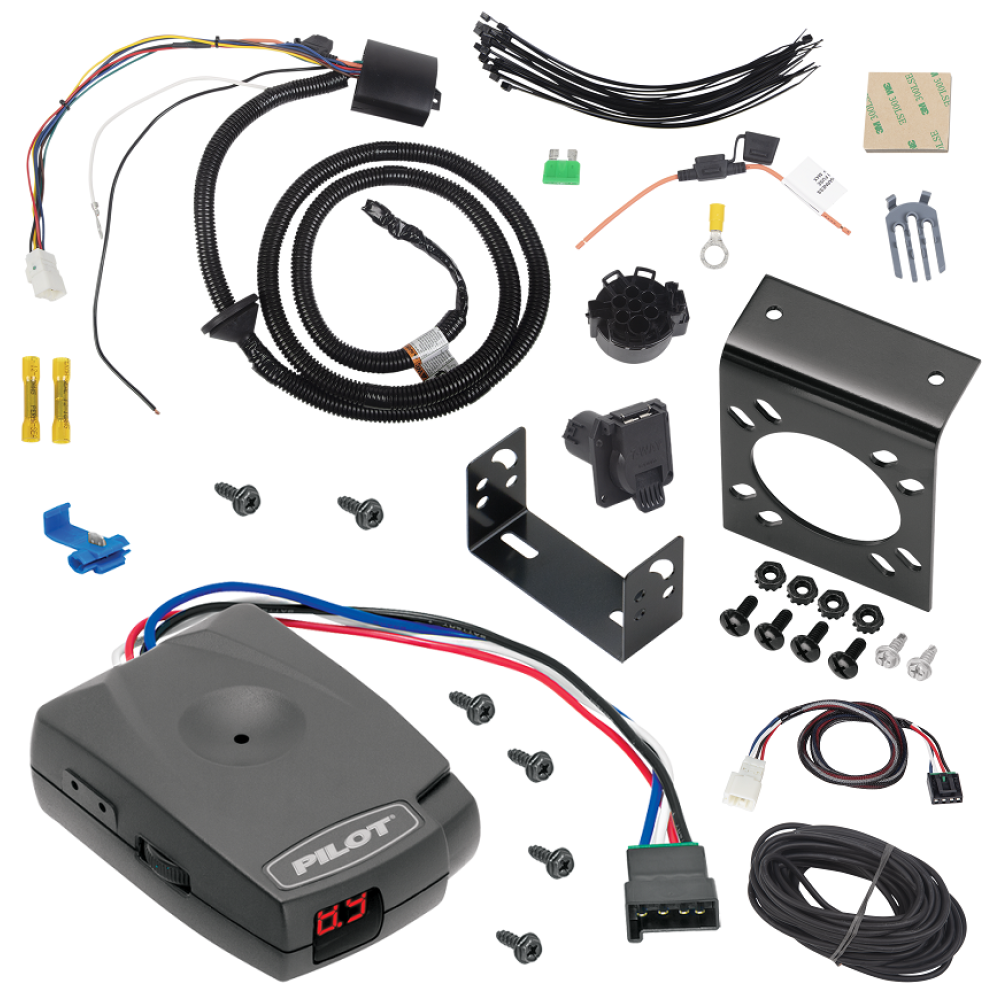

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Pro Series Pilot Brake Control
• Plug & Play BC Adapter

List of fitment years:

2019, 2020, 2021, 2022, 2023

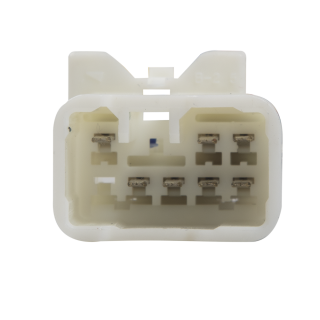

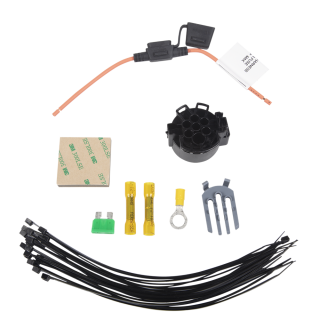

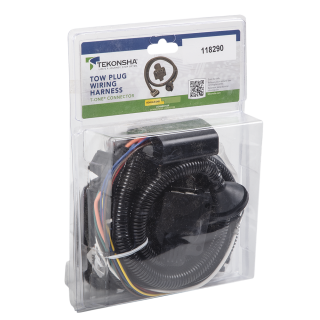

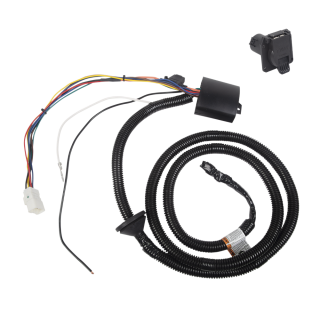

Tow Harness, 7-Way, w/Circuit Protected ModuLite® HD Module

Manufactured by: Tekonsha

T-One Connectors require no splicing of vehicle wires. Simply locate your vehicles wiring harness connector, unplug the connection and insert the T-One Connector into the vehicle’s harness. No special tools required.

• Exact replacement for damaged factory wiring harnesses
• Installs in seconds on vehicles not factory pre-wired
• Upgrades vehicles from 4-Flat factory wiring to 6 or 7-Way connectors
• Connects directly to standard factory connector
• Attractive point-of-purchase packaging
• Stop/Turn circuit capacity of 4.2 Amps
• Taillight circuit capacity of 12 Amps

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts

Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles

Manufactured by: Pro Series

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

• Large easy to read dual digital display shows:
  • Properly wired control
  • Voltage output to brakes (vs. a percentage)
  • Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty

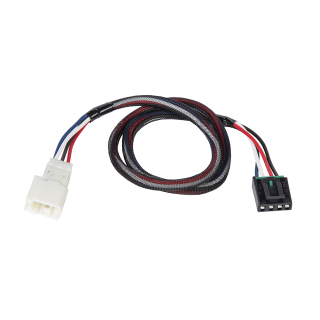

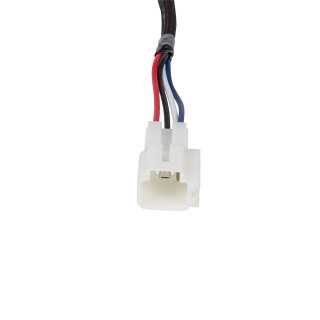

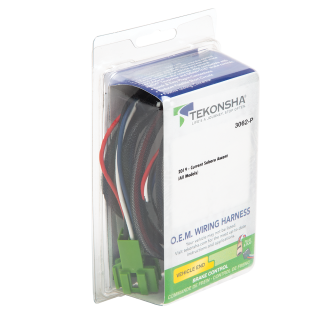

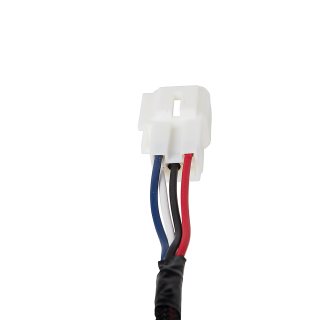

Trailer Brake Controller Wiring Harness

Manufactured by: Tekonsha

Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
