For 2020-2024 Toyota Highlander 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller By Tekonsha

This Bundle Fits The Following Vehicles:

2020-2024 Toyota Highlander

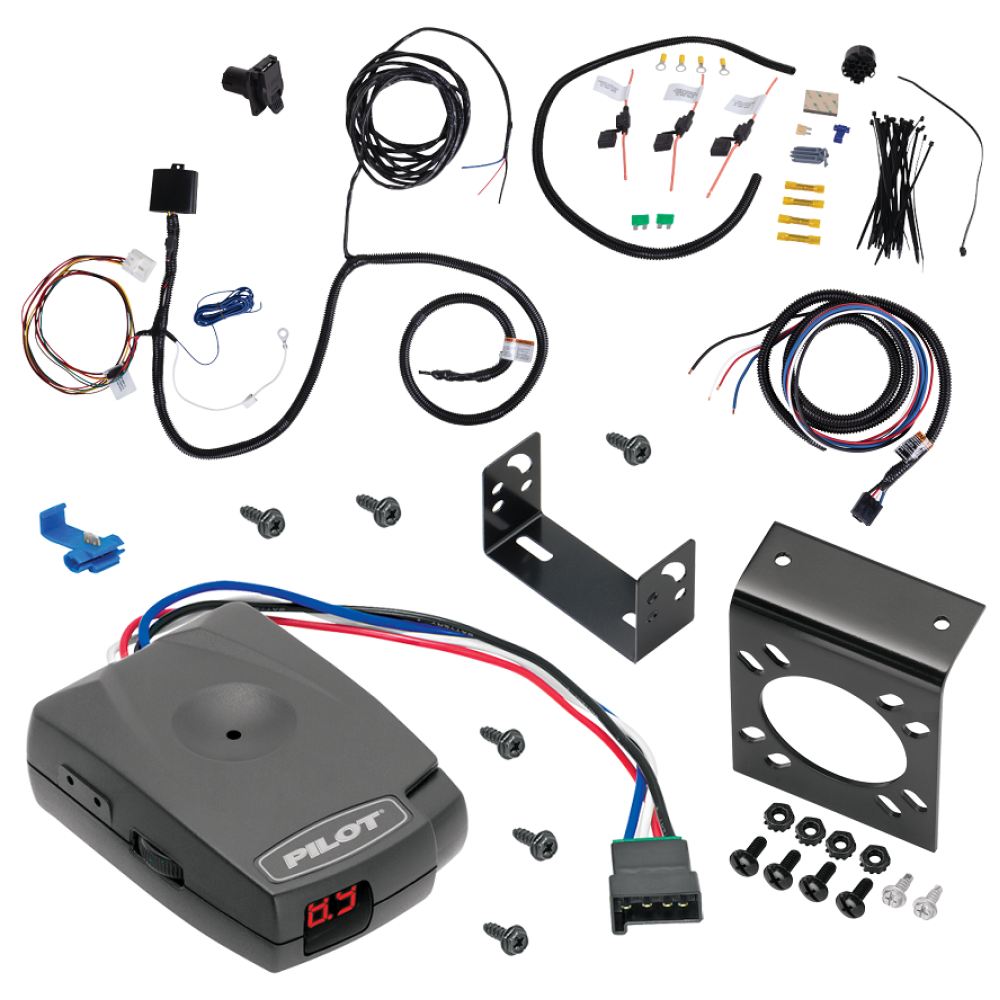

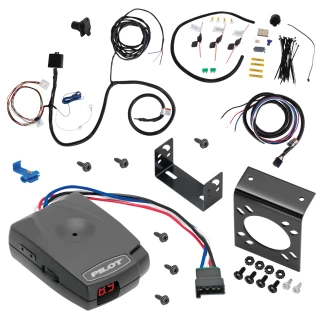

This Bundle Includes the Following Parts:

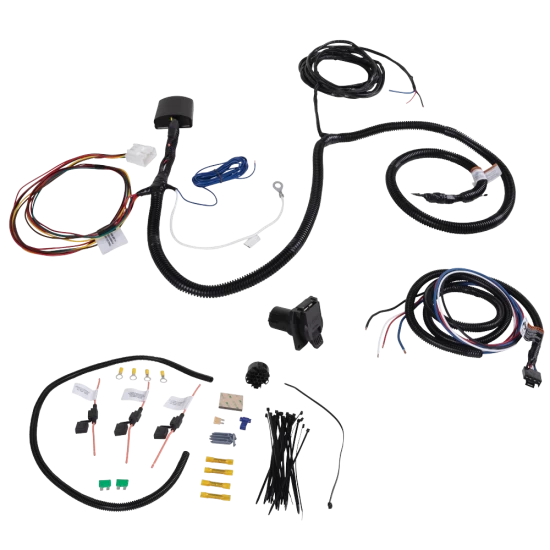

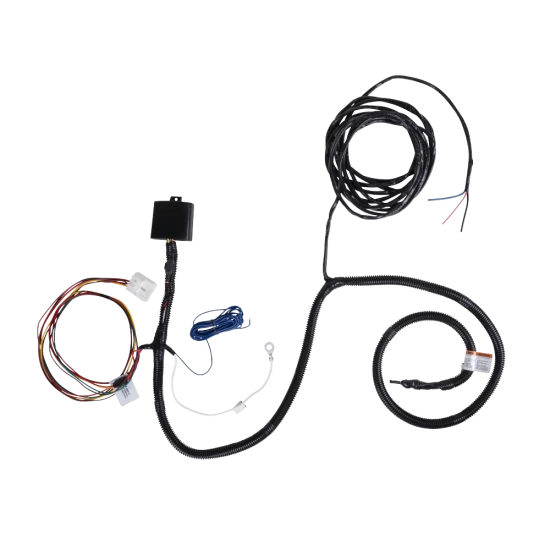

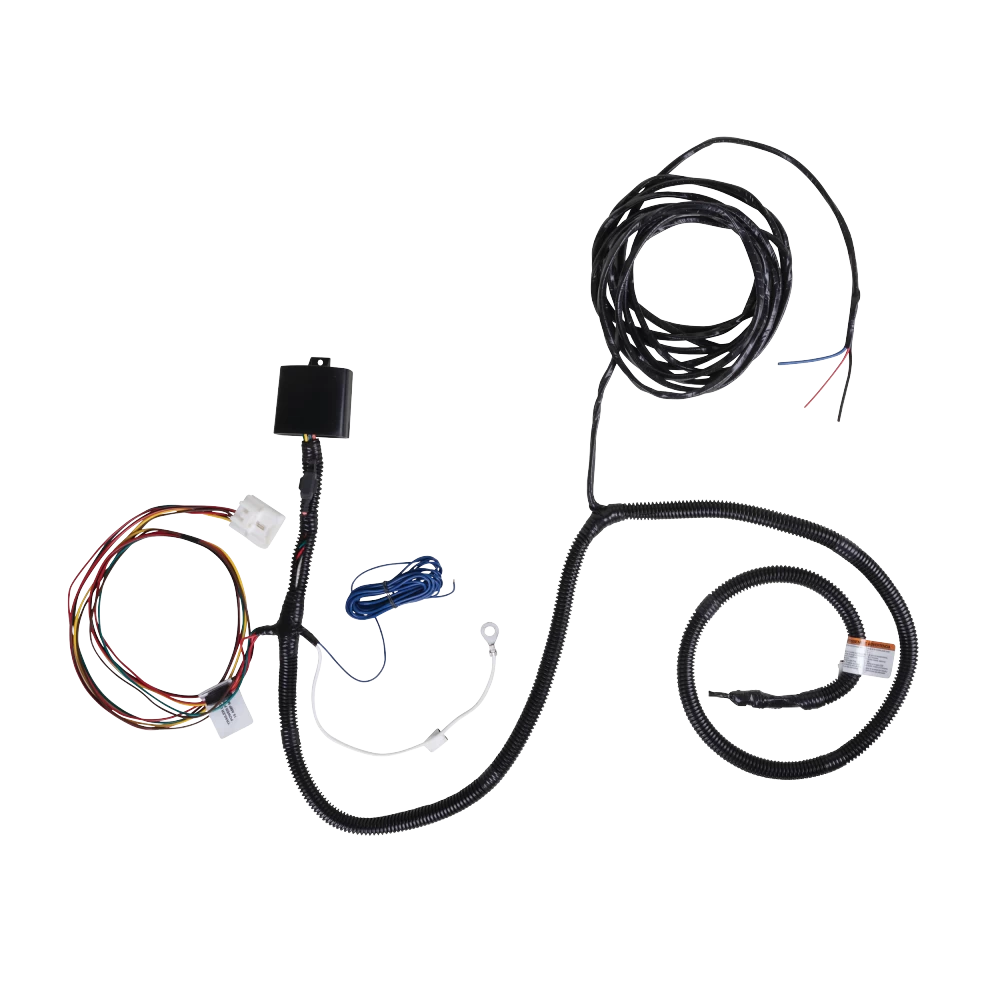

• 7-Way RV Wiring

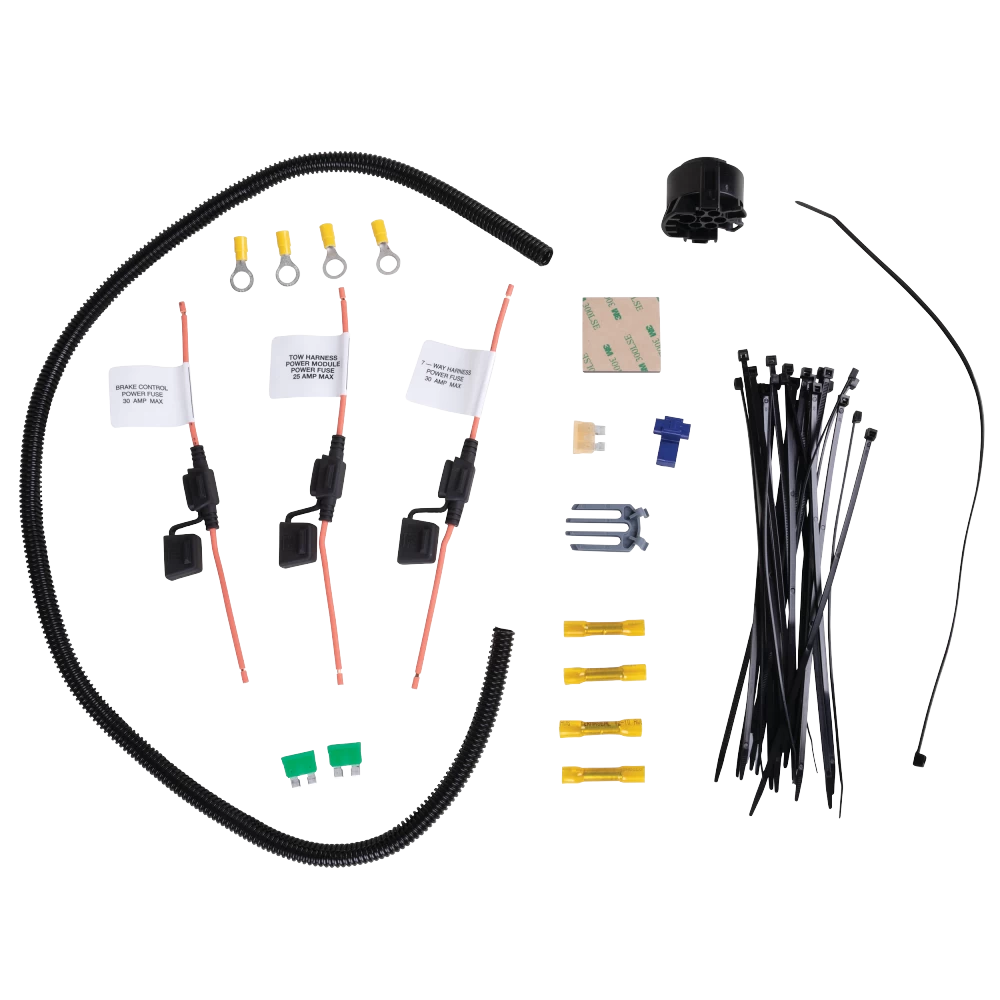

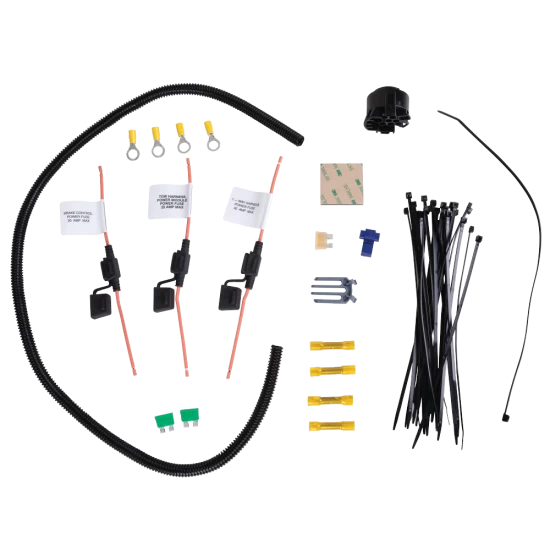

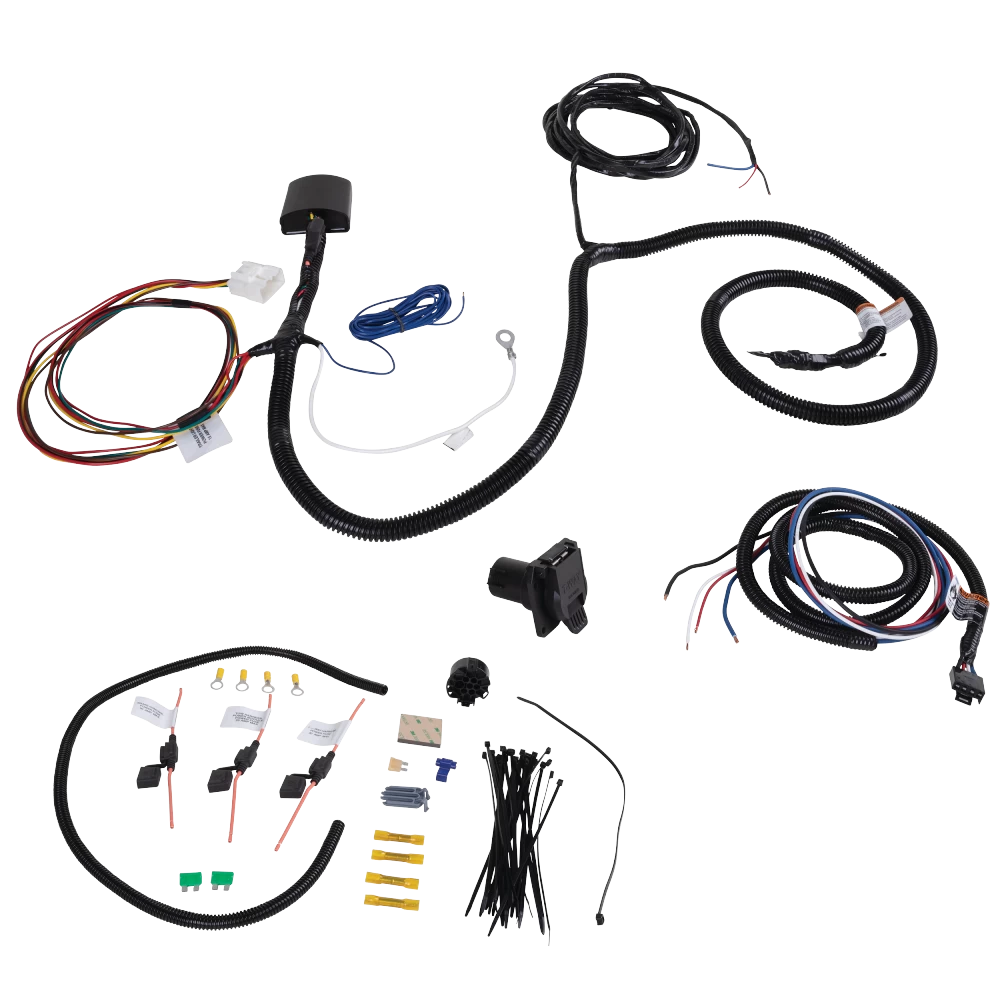

  Tow Harness, 7 Way Complete Kit Manufactured by: Tekonsha

  No other product is designed to specifically deliver everything needed for a fully functional 7-Way, INCLUDING a brake control plug. No more piecing together products. These kits are custom made and will REDUCE the installation time of installing a fully functional 7-Way.

  • Allows for fully functional 7-Way (Tail Lights, Left/Right turn, Brake, Reverse, Electric Brakes and 12 Volt +)
  • Short circuit and overload protection on all circuits including reverse

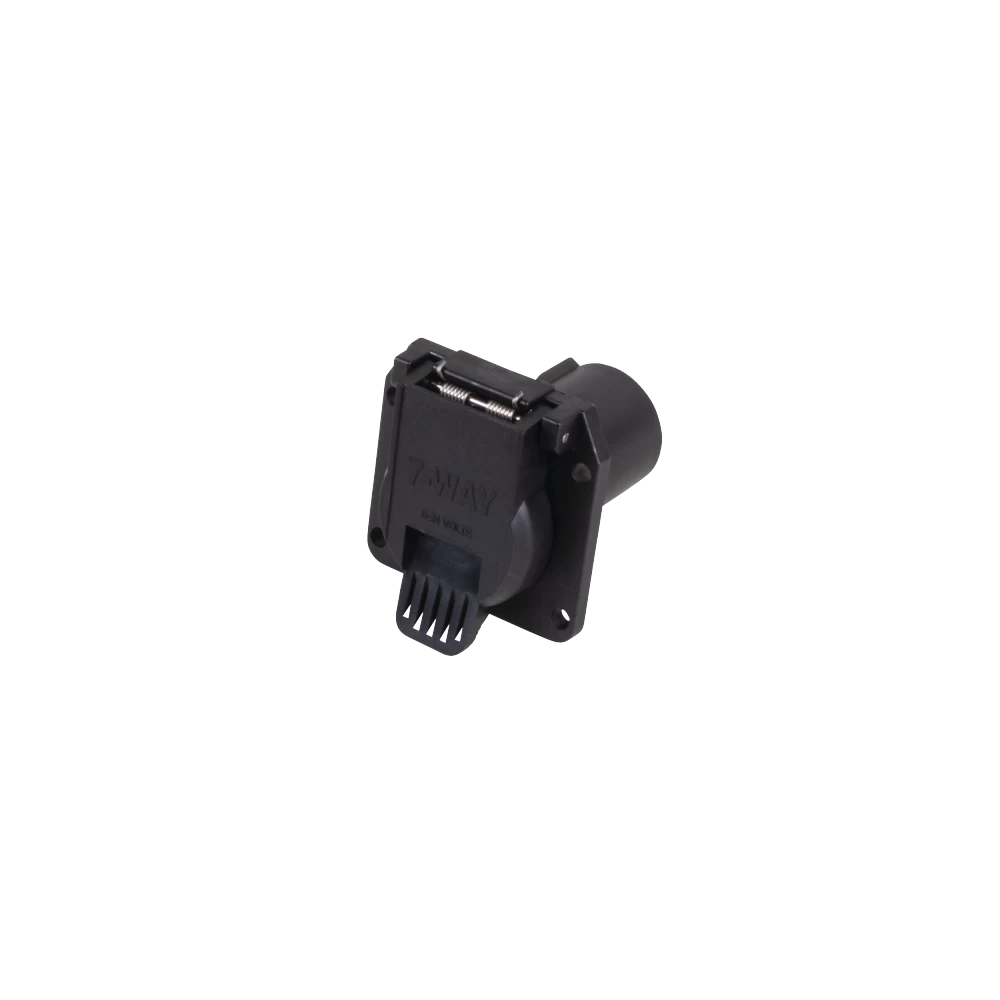

  • Mates with standard U.S. trailer 7-Way connectors

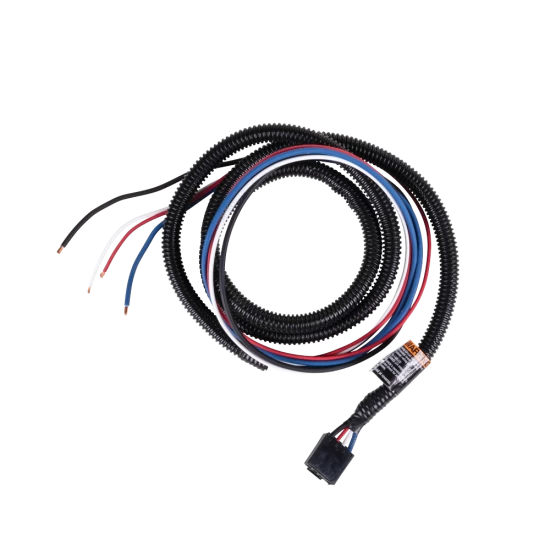

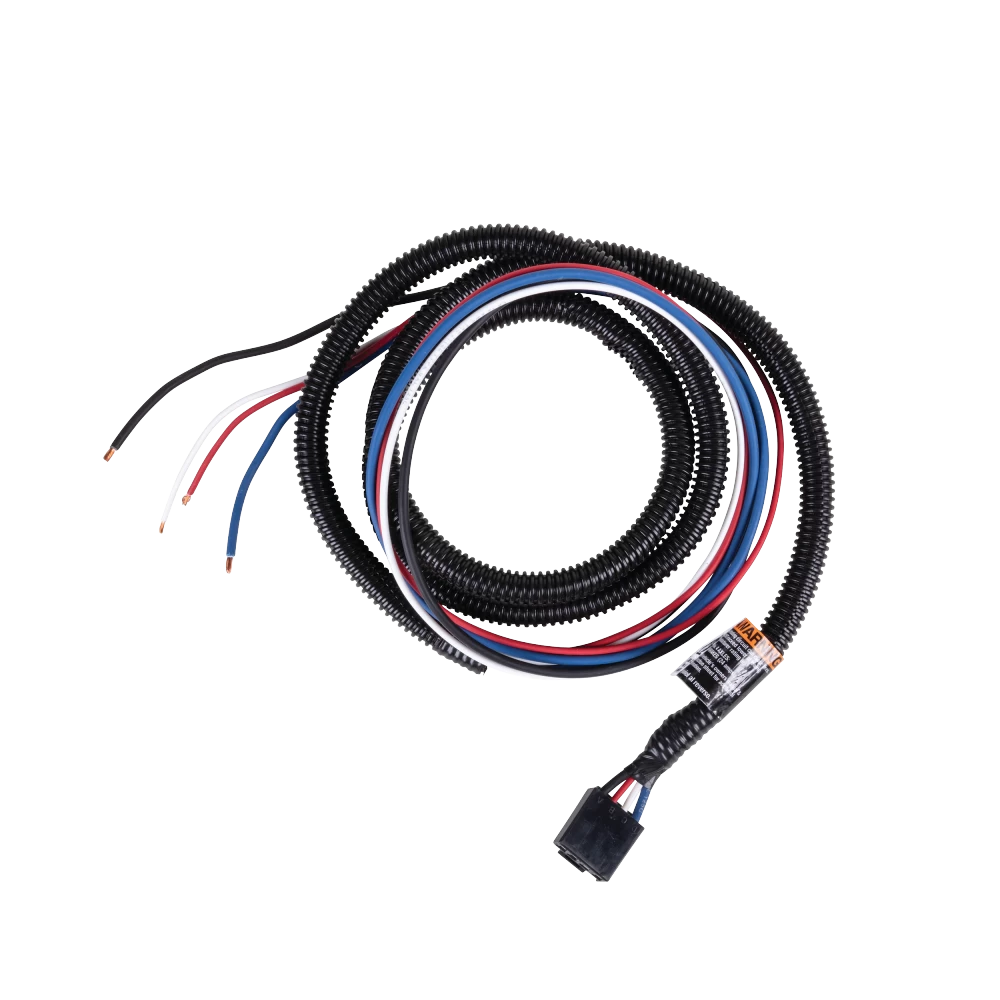

  • Provides Plug and Play connector to mate with all Cequent brake controls

• Pro Series Pilot Brake Control

  Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series

  Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

  • Large easy to read dual digital display shows:
  • Properly wired control
  • Voltage output to brakes (vs. a percentage)
  • Connection to trailer
  • Dark smoke lens ideal for direct light applications; performs better than red lens
  • Protection against short circuit/loss of ground
  • Microprocessor allows control to be mounted upside down and still have a readable display
  • Standard mounting bracket included with optional ball mount available
  • For use on any 12-volt negative ground system
  • Plug & Play feature allows quick and easy connection
  • Limited lifetime warranty

List of fitment years:

2020, 2021, 2022, 2023, 2024
