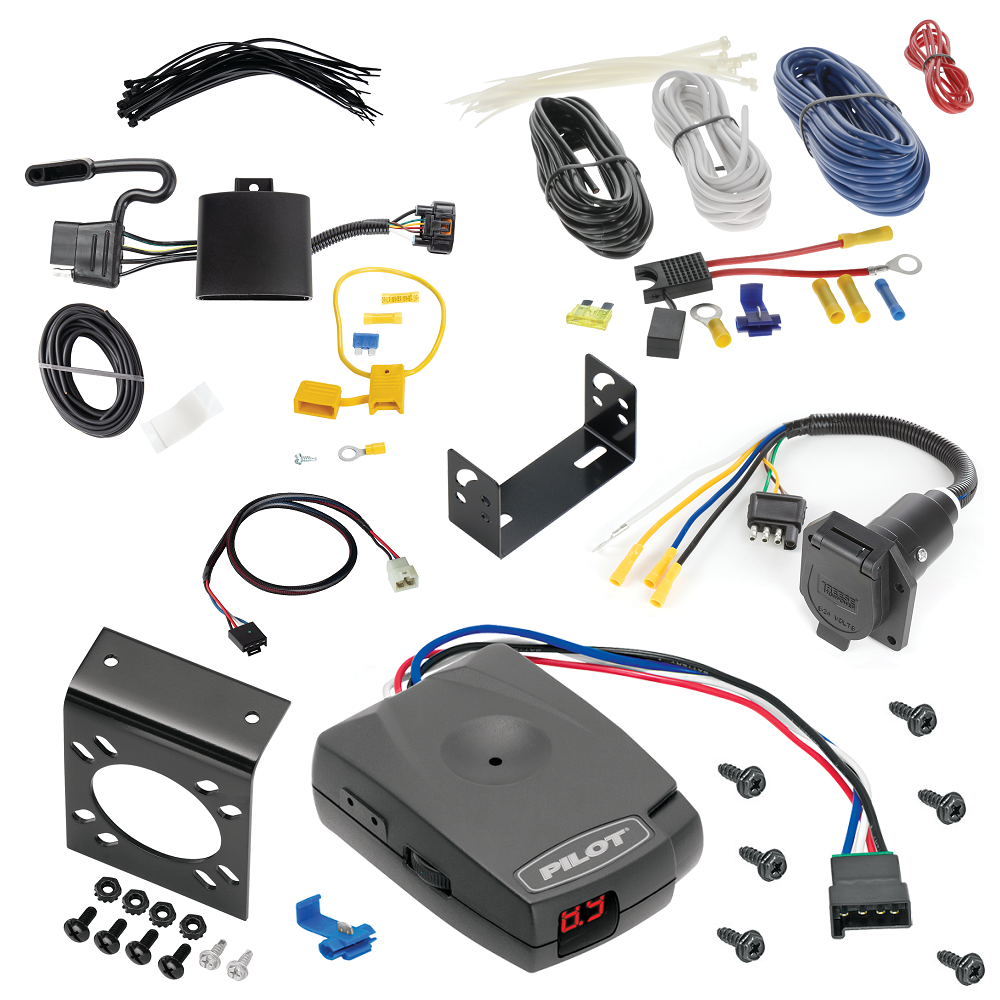

For 2020-2024 KIA Telluride 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Plug & Play Adapter By Tekonsha

Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 5 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

• Provide versatility in going from 4-Flat to 7-Way standard plug
• Pre-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

• OEM Style wiring harness
• Easy to install
• 1-3 axles

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

• Large easy to read dual digital display shows:
• Properly wired control
• Voltage output to brakes (vs. a percentage)
• Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty

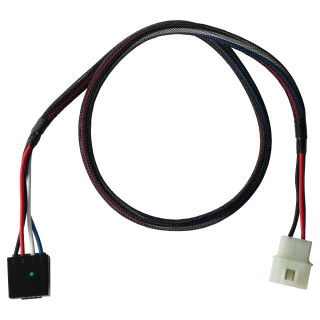

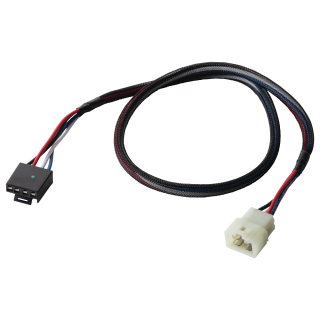

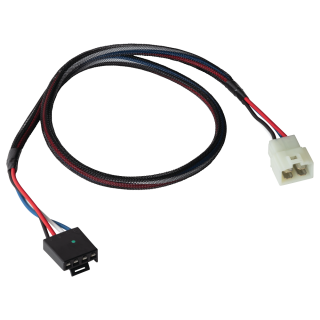

Towing and trailering requires a lot of equipment, and sometimes that equipment requires adapters to make it fit just right. Thankfully, Tekonsha® has a complete line of adapters – or harnesses - to fit whatever brake controller you may choose. These Plug & Play adapters are designed with a plug-in installation on both ends, making it simple to install a brake controller into a factory under-dash connector. And considering that many of the vehicles today are pre-wired with a brake controller connector under the dash, selecting a Tekonsha Plug & Play adapter makes wiring easy and trouble-free.

There’s no cutting or splicing needed! Just select the custom two-plug adapter to fit your vehicle, then plug the Tekonsha Plug & Play adapter into your vehicle’s under-dash connector and the other end into your brake controller. In no time, you’ll be on the road. Life’s a Journey. Stop Often.

• Provides Plug and Play connector to mate with all HZN brake controllers

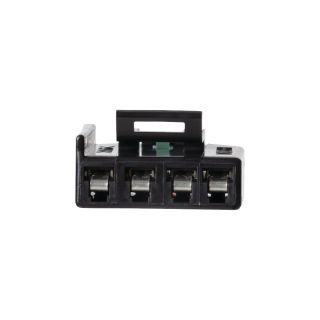

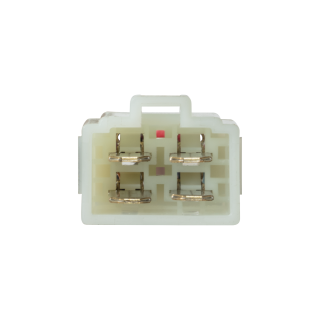

• Features a factory connector on one end and a brake control connector on the other
• Eliminates the need for cutting or splicing of wires
• Positive locking connector stays connected when plug in tightly
• Reduces possible short circuits
