For 2021-2025 Chevrolet Trailblazer Trailer Hitch Tow PKG w/ Tekonsha BRAKE-EVN Brake Control + Generic BC Wiring Adapter + 7-Way RV Wiring + 2" & 2-5/16" Ball & Drop Mount (Excludes: w/LED Taillights Models) By Draw-Tite

This Bundle Fits The Following Vehicles:
2021-2025 Chevrolet, Trailblazer, Except w/LED Taillights

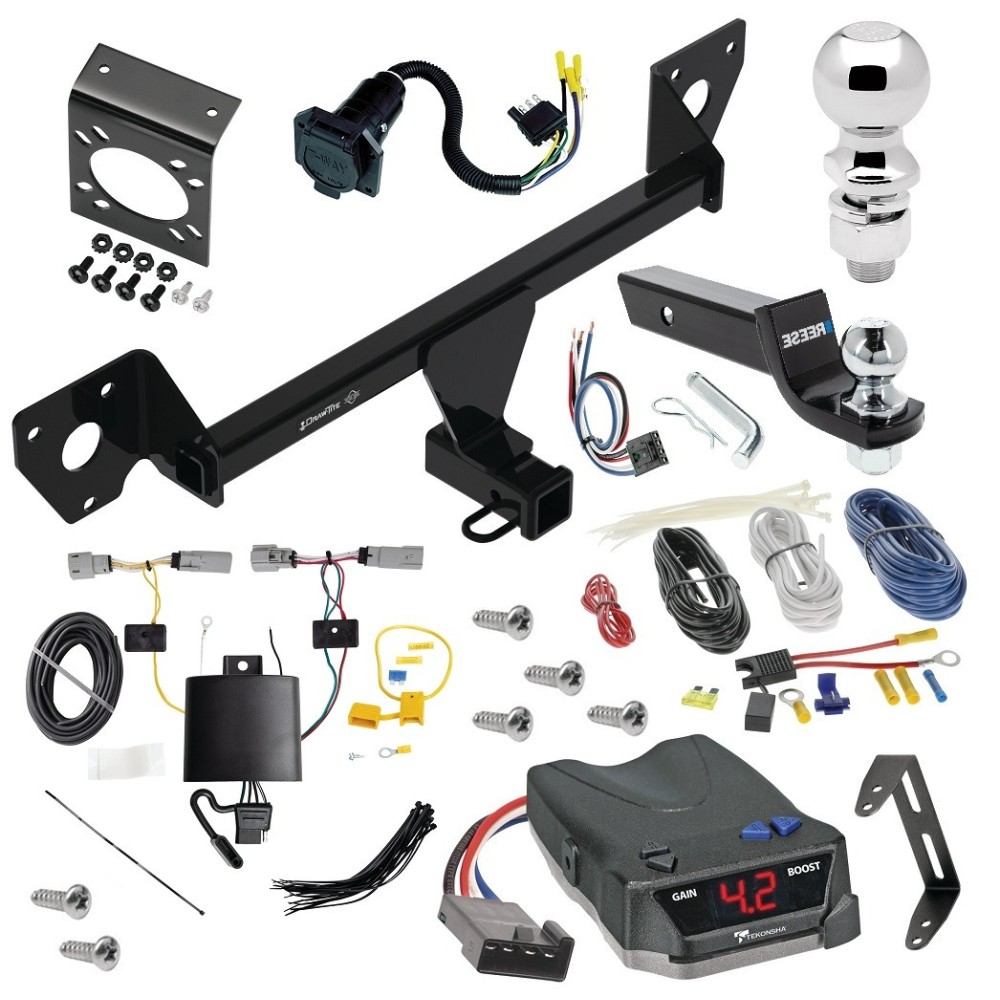

This Bundle Includes the Following Parts:
Trailer Hitch
Tekonsha BRAKE-EVN Brake Control
Generic BC Wiring Adapter
7-Way RV Wiring
2 inch & 2-5/16 inch Ball & Drop Mount

List of fitment years: 2021, 2022, 2023, 2024, 2025

The hitch is hidden behind your bumper, and does not require drilling

Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 3,500 lbs gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Buick Encore GX and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 3,500 lbs GTW and up to 525 lbs. TW. Also suitable for use with Weight Distribution systems of up to N/A WD and N/A WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Buick Encore GX, Chevrolet Trailblazer
• EXCLUSIONS: This Draw-Tite Class III hitch does NOT fit the following: Except w/LED Taillights

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 5 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
• Provide versatility in going from 4-Flat to 7-Way standard plug
• Per-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
• OEM Style wiring harness


• Easy to install
• 1-3 axles

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

BRAKE-EVN™ Proportional Brake Controller for Trailers with 1-4 Axles, Black  Manufactured by: Tekonsha
The Tekonsha BRAKE-EVN brake controller offers advanced proportional braking by applying brake pressure to match the vehicles deceleration rate. Proportional braking gets you get smoother stops that traditional time based controls. The boost feature gives the ability to apply more initial braking at the onset of stopping when towing heavier loads. When adjusted properly for your load, proportional brake controls can even extend the life of your vehicles brakes. The large LED display is easy to see when adjusting the control to handle the weight of your loaded or unloaded trailer. The BRAKE-EVN brake control can handle up to brake 4 axles and offers a simple plug in installation option, so be sure to get the proper factory harness for your vehicle. The perfect choice for light or heavy trailer loads.
• 1-4 Axle capacity
• Boost feature gives ability to apply more initial trailer braking
• Reverse battery protection
• No leveling required
• Diagnostics features incorporated in easy to read LED display
• Plug & Play feature allows for quick and easy connections
• Small compact design designed for todays dashes
• Simple push button adjustments

Trailer Brake Controller Installation Kit, Universal Fit, 12 in. Length Manufactured by: Tekonsha
This universal harness is designed to mate with any Tekonsha brake controller. Simply wire in the harness and then plug into the controller to complete installation. This harness makes it easy to move the brake controller from one vehicle to another by just unplugging.
• OEM style wiring harness
• Quick and easy plug in connections
• Allows controller to be unplug and moved to other vehicles
• Color coded wire match brake control standards
• Works on time proportional and time based controls
• Positive locking connector stays connected when plug in tightly
• Simple do it yourself instructions on every package
• Fits REESE Towpower and Tekonsha brake controllers

Trailer Hitch Ball Mount Starter Kit, Fits 2 in. Receiver, 2 in. Drop, 6,000 lbs. Capacity, Includes 2 in. Trailer Ball and Receiver Lock, Black Manufactured by: Reese Towpower
New to towing and not sure what you need? Worry no more! REESE® starter kits provide you with everything you need to set up your trailer hitch and tow safely. Each starter kit includes a ball mount with a pre-torqued hitch ball, and a pin and clip. Once you determine the appropriate drop or rise for your trailer, simply insert the ball mount into your receive hitch tube opening, secure it with the pin and clip, and voila! You’re ready to hook up your trailer and hit the road. Get your REESE starter kit today and make the journey as enjoyable as the destination.
• Fits 2 in. Receiver Tube Openings
• Includes Ball Mount, Hitch Ball, Pin and Clip
• 6,000 lbs. Capacity
• 2 in. Drop Ball Mount
• 2 in. dia. Hitch Ball
• Metal Shield® Finish

Trailer Hitch Ball, 2-5/16 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2-5/16 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
