For 2022‑2024 INFINITI QX60 Trailer Wiring 4 Way Fits All Models Curt 56520
Model: 56520-CW2427This Wiring 4-Flat Fits The Following Vehicles:
2022 - 2024 INFINITI QX60 All Models
This Wiring 4-Flat Includes the Following Parts:
- Custom Wiring Harness, 4-Way Flat
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2022, 2023, 2024

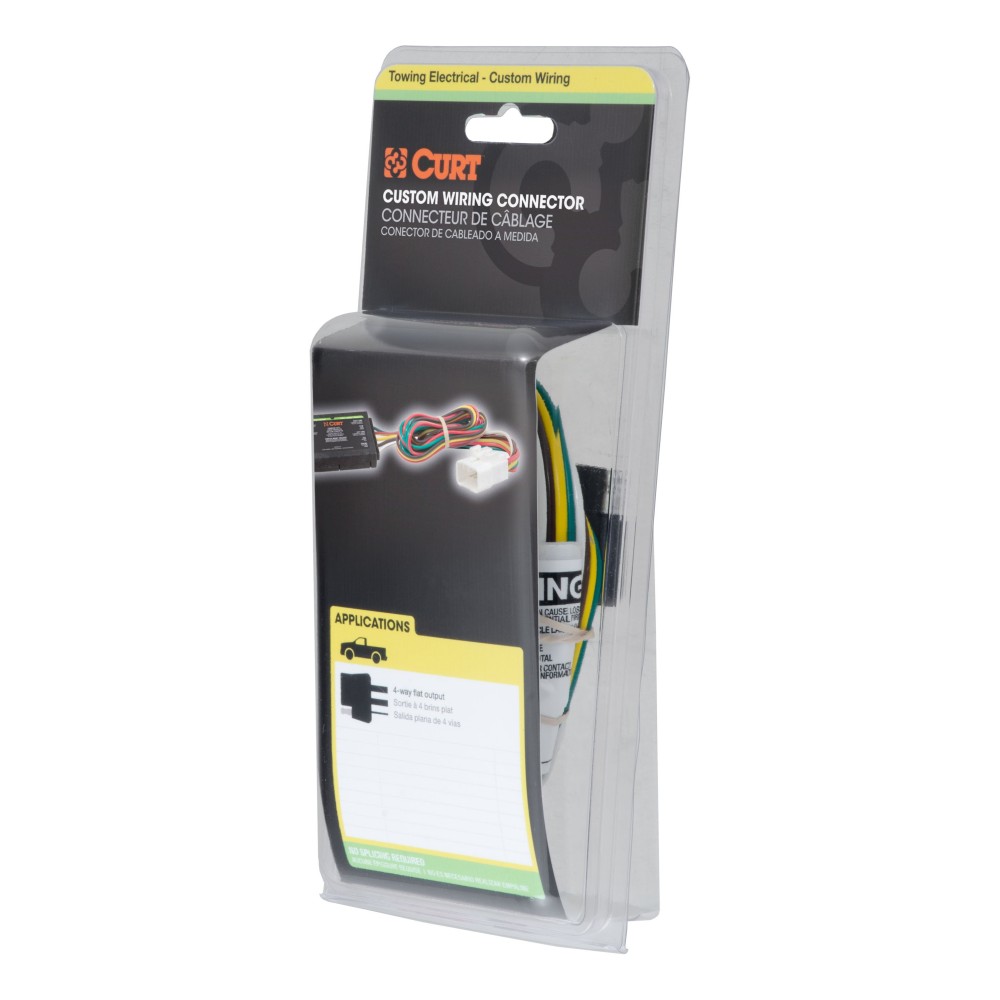

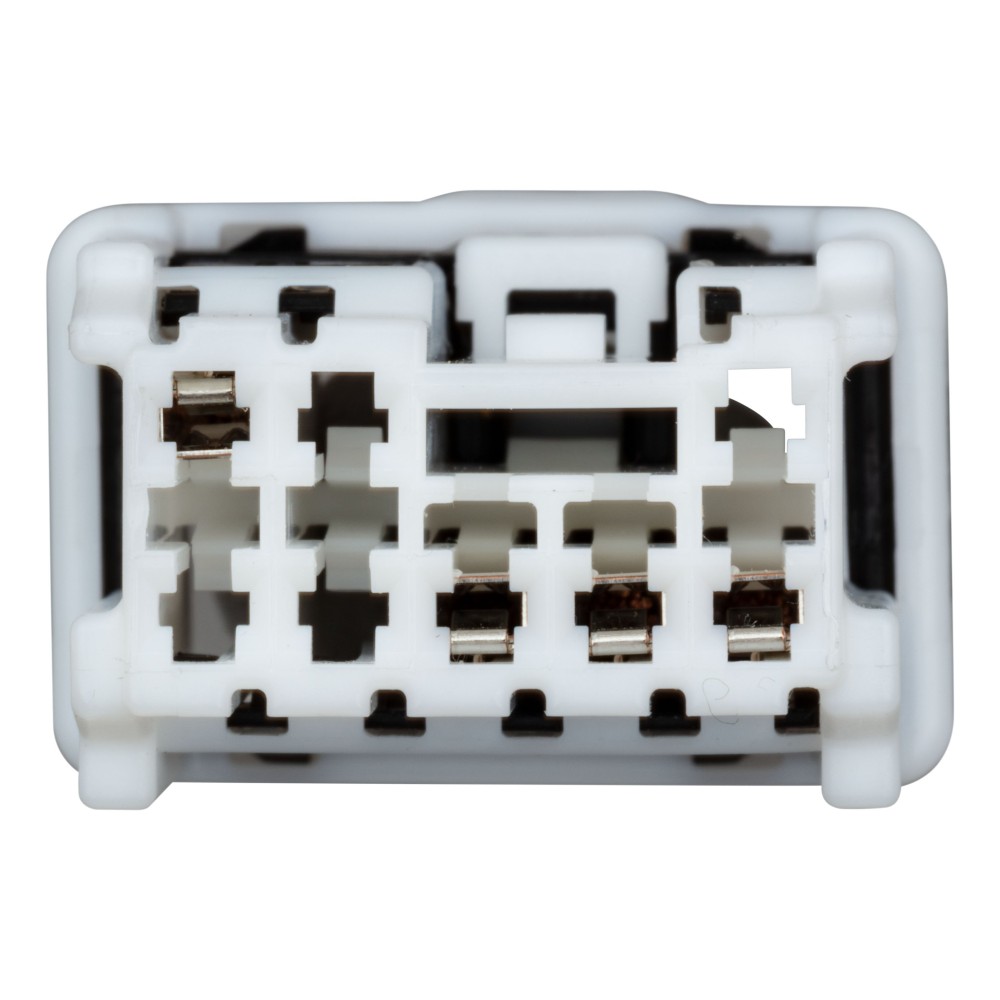

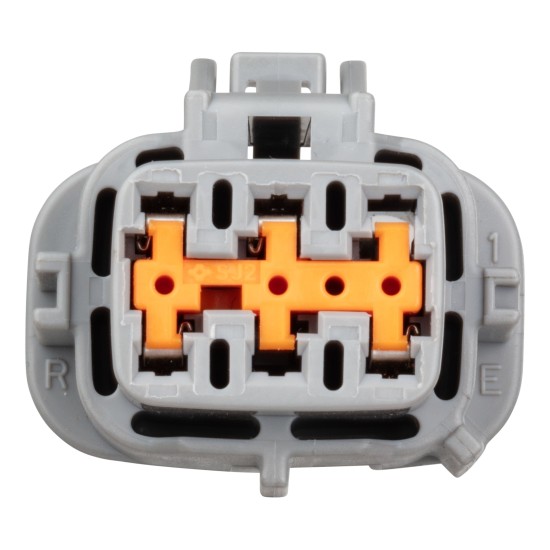

CURT 56520 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Nissan Pathfinder and Infiniti QX60 (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:

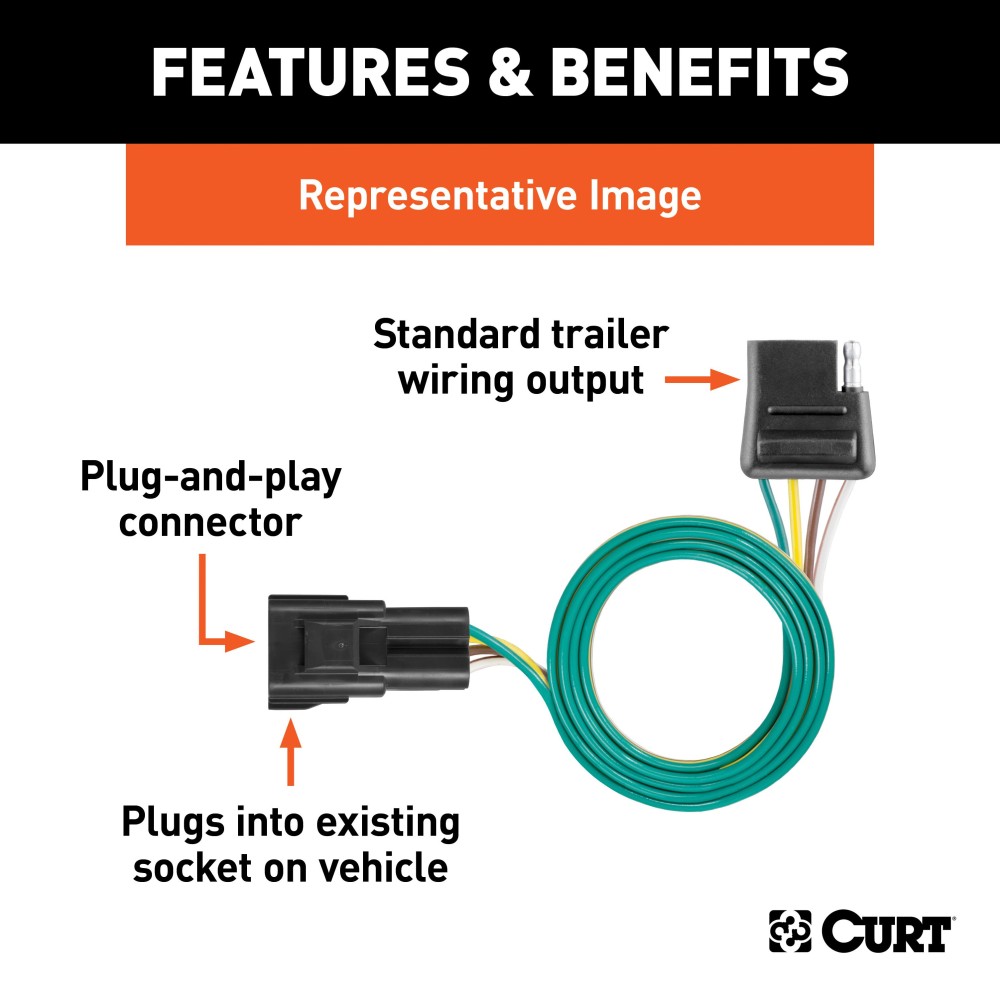

- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing

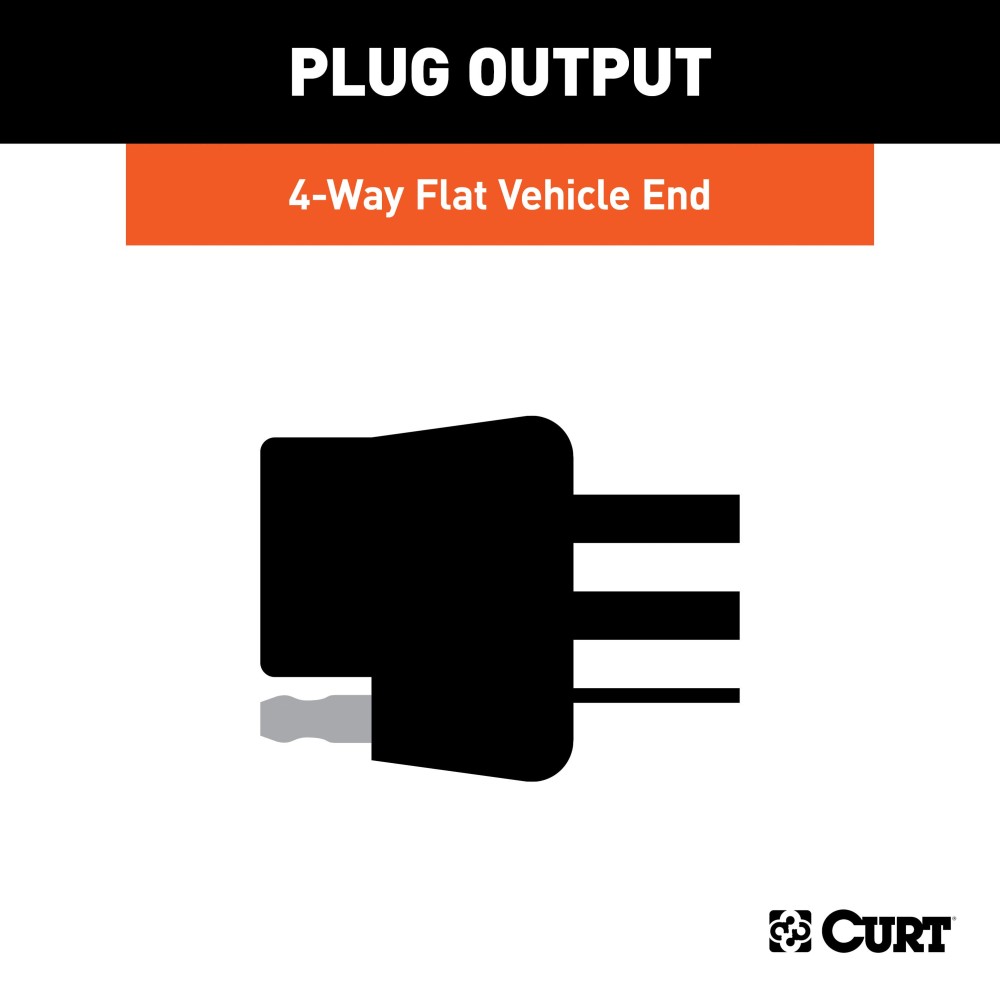

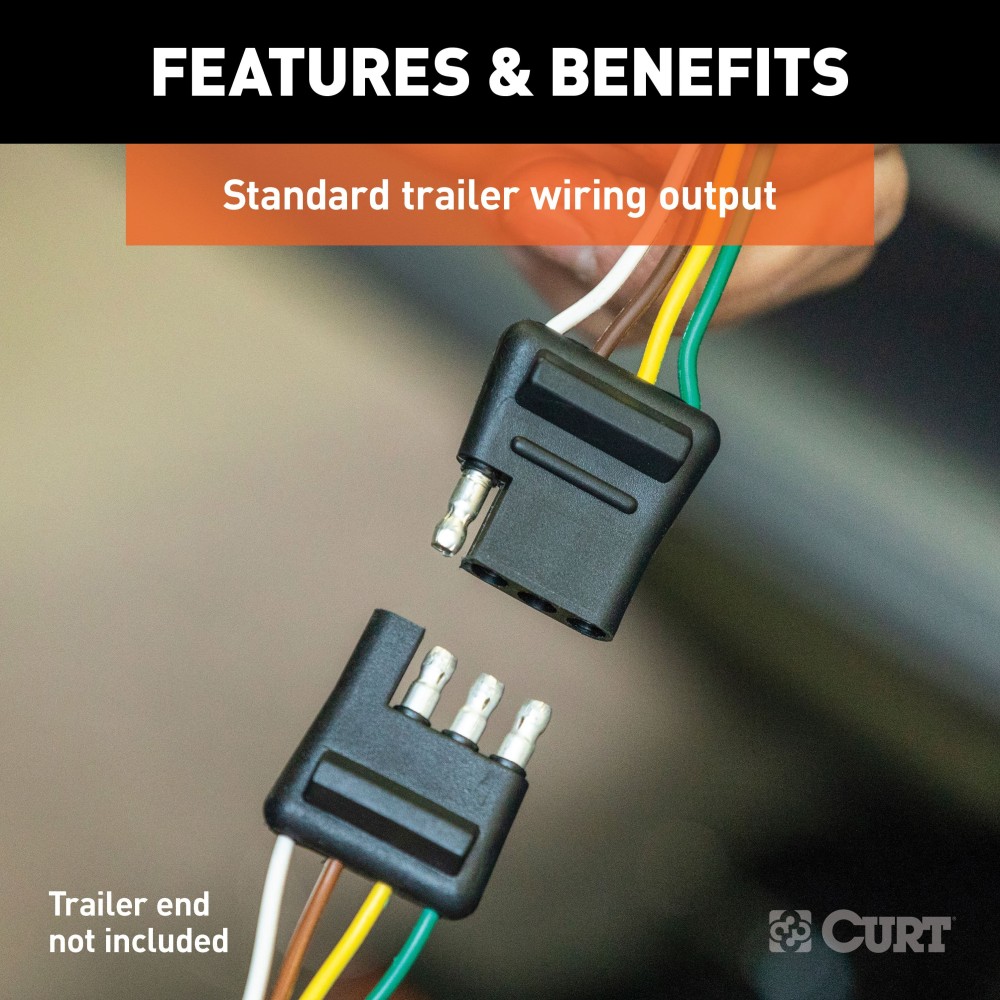

- 4-way flat output connects tail lights, brake lights and turn signals

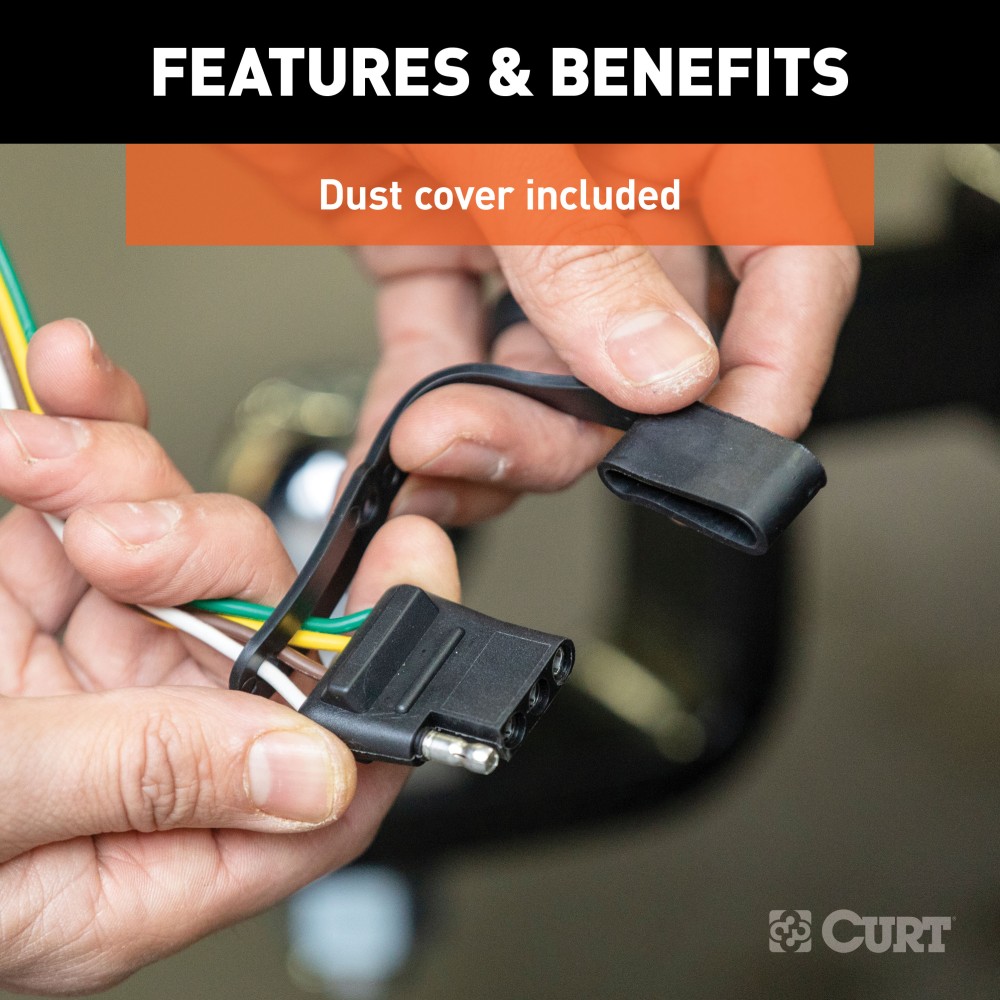

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$69 74
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$69 74
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $17.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56520-CW2427
- Includes: Custom Wiring Harness
Compatibility Chart
Description
Get Expert Help
For 2022-2024 INFINITI QX60 Trailer Wiring 4 Way Fits All Models Curt 56520 Install Notes
Installation Instructions for Nissan Pathfinder and Infiniti QX60
Part Numbers:
- 56520
Wiring Access Location:
- S3: Behind driver side rear access panel
- S5/S6: Rear bumper under the vehicle
Tools Required:
- Panel trim removal tool
- Ratchet
- Socket, 10mm
- Wire cutter
- Cable ties
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle battery on the driver side. Disconnect the negative terminal to prevent accidental electrical contact during installation. Secure the cable away from the battery.
-
Access Rear Hatch and Cargo Area:
- Open the rear hatch. Fold down the rear seats to access the cargo area.
- Remove the floorboard to expose the storage compartment. Remove all contents and set them aside.
-
Remove Rear Trim Panels:
- Use a panel trim removal tool to loosen the push fasteners securing the back-trim flap of the rear seat to the cargo bin cover.
- Remove the threshold trim between the rear hatch and the cargo bin. Loosen the fasteners holding the cargo bin cover in place.
-
Remove Cargo Bin:
- Use a 10mm socket to remove the three screws at the bottom of the cargo bin.
- Lift the cargo bin straight up and out of the vehicle.
-
Access Sidewall and Driver-Side Components:
- Use the trim tool to loosen the trim cover on the driver-side cargo hold-down.
- Use a 10mm socket to remove the cargo hold-down. Loosen the push fasteners securing the driver-side wall trim to access the white housing for the wiring harness.
-
Install Wiring Harness:

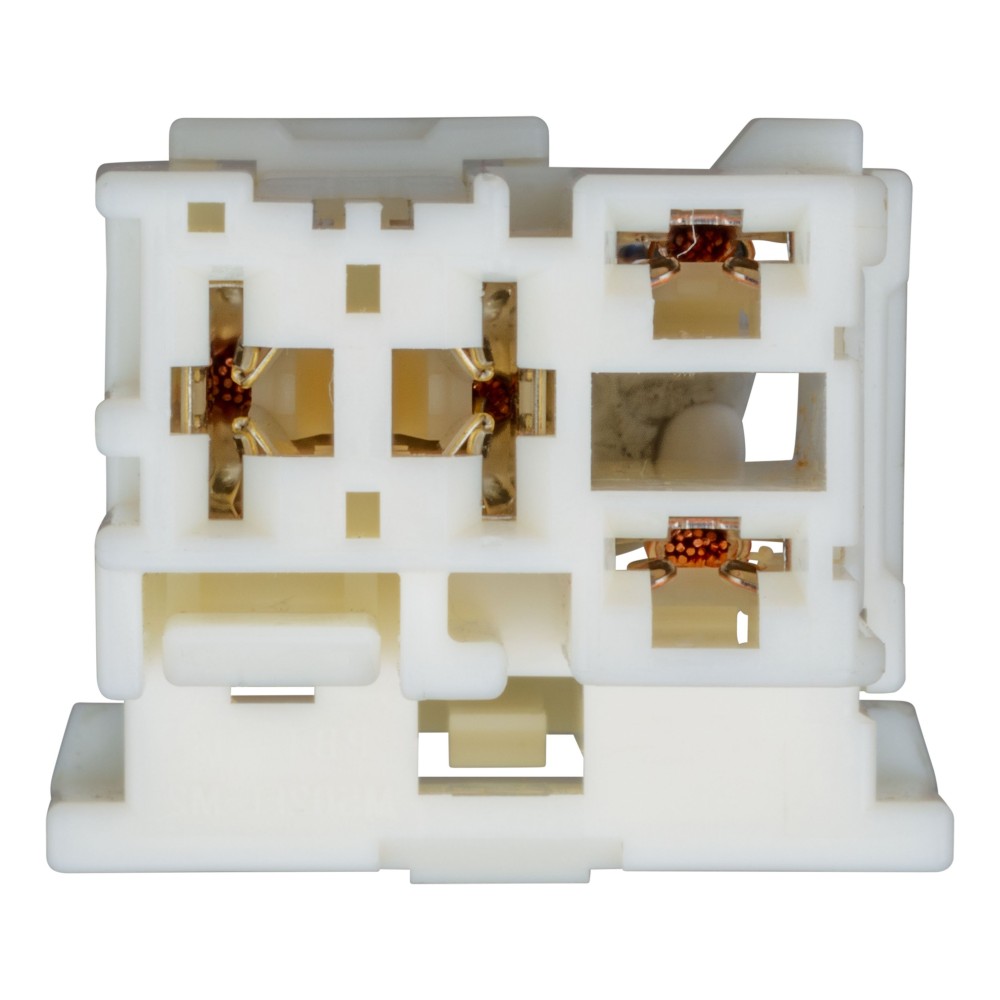

- Locate the white housing on the driver-side sidewall. Connect the custom wiring harness with the blue relay to the white housing.
- Secure the relay in place using zip ties to prevent vibration noise or rattling.
-
Connect Rear Bumper Wiring:
- Underneath the rear bumper, locate the dust-covered housing near the vehicle center.

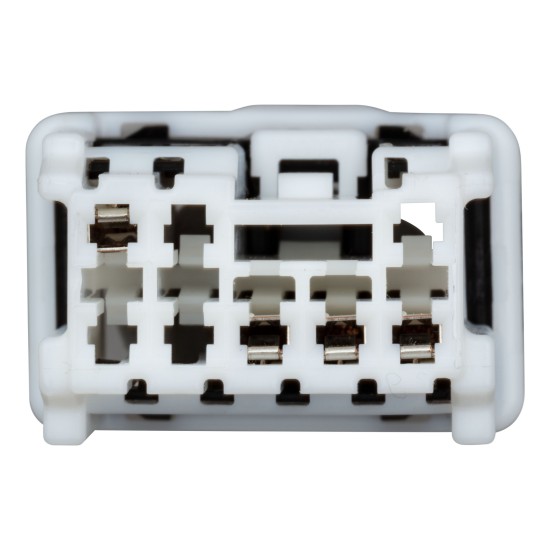

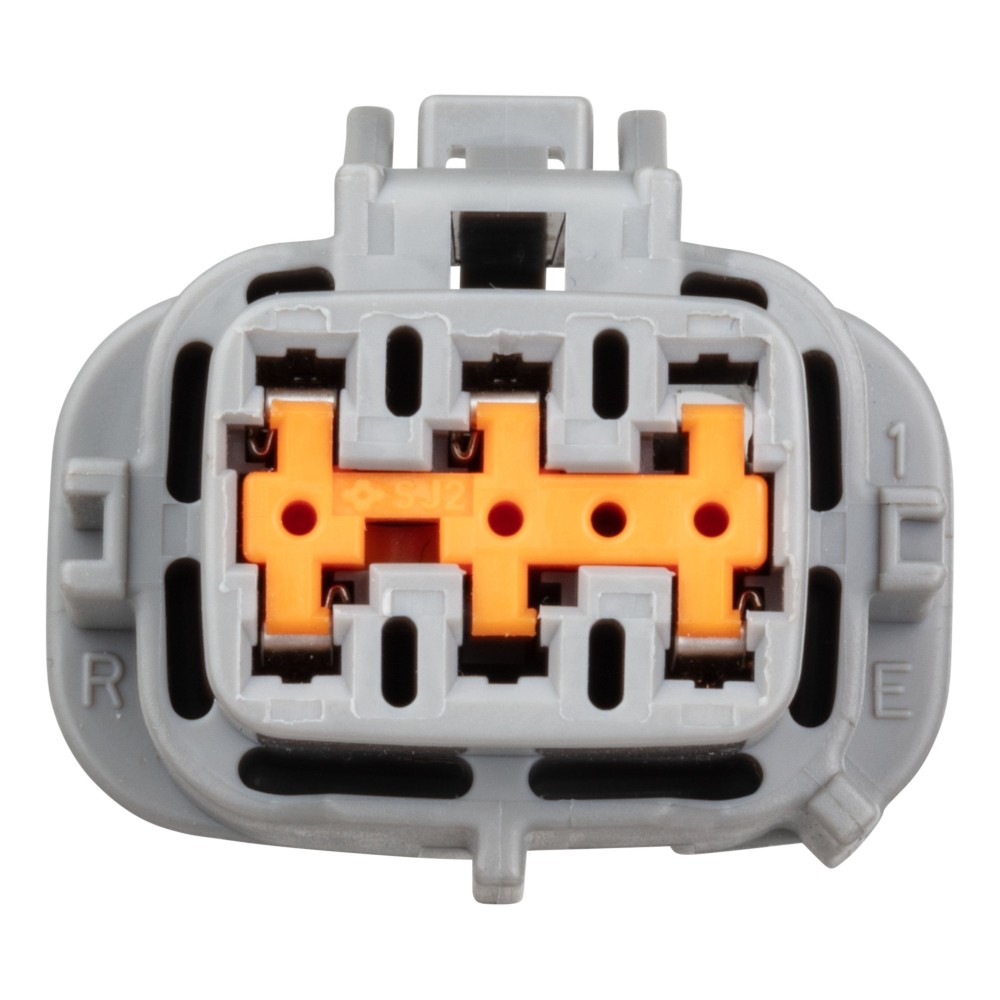

- Remove the dust cover and connect the custom wiring harness with the 4-flat trailer connector to the housing.
