For 2022-2023 Acura MDX 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Wiring Adapter By Tekonsha

This Bundle Fits The Following Vehicles:

2022-2023 Acura MDX

This Bundle Includes the Following Parts:

• 7-Way RV Wiring
• Pro Series Pilot Brake Control
• Generic BC Wiring Adapter

List of fitment years:

2022, 2023

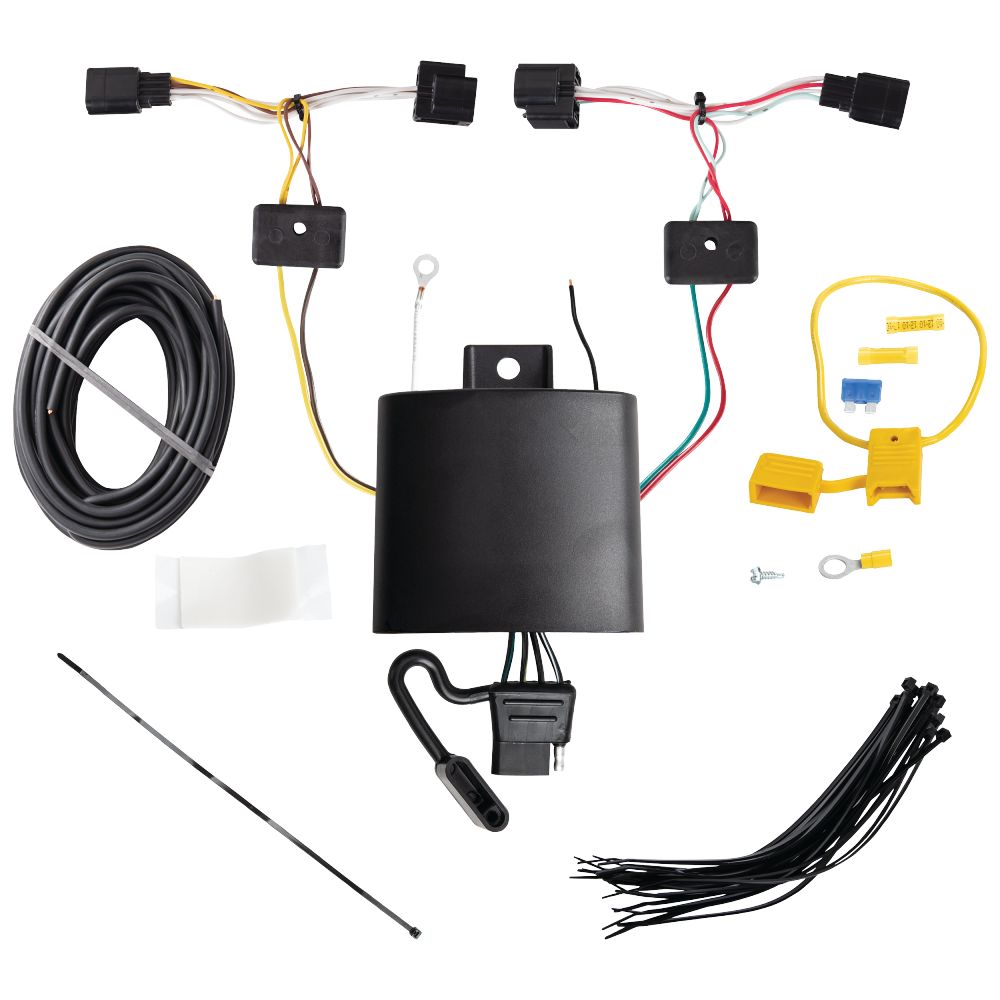

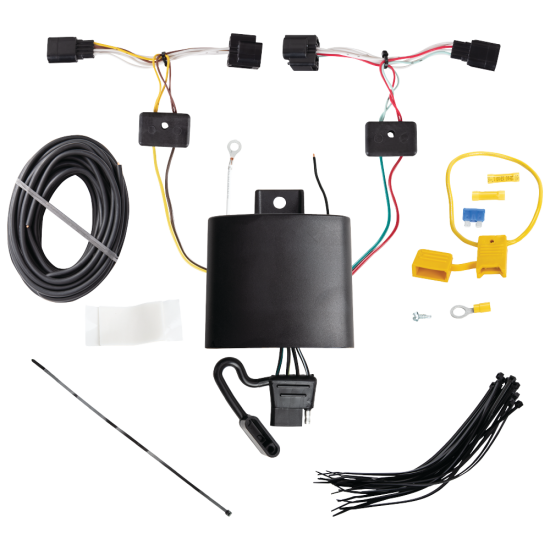

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha

Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.

• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 5 Amps
• Taillight Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower

The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.

• Provide versatility in going from 4-Flat to 7-Way standard plug
• Pre-wired with 4-Flat and wired with butt connects and ring terminal
• Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
• Features non-corroding brass terminals
• Mounts to standard 7-Way bracket
• Non-corrosive thermo plastic construction
• Ring terminal already mounted to ground wire
• 12 volt and brake wires have butt connectors already attached

Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha

This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.

• OEM Style wiring harness
• Easy to install
• 1-3 axles

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready

• Mounts electrical connector to attachment bracket
• Includes screws and nuts
• Attractive point-of-purchase packaging

Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series

Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.

• Large easy to read dual digital display shows:
• Properly wired control
• Voltage output to brakes (vs. a percentage)
• Connection to trailer
• Dark smoke lens ideal for direct light applications; performs better than red lens
• Protection against short circuit/loss of ground
• Microprocessor allows control to be mounted upside down and still have a readable display
• Standard mounting bracket included with optional ball mount available
• For use on any 12 volt negative ground system
• Plug & Play feature allows quick and easy connection
• Limited lifetime warranty

Trailer Brake Controller Installation Kit, Universal Fit, 12 in. Length Manufactured by: Tekonsha

This universal harness is designed to mate with any Tekonsha brake controller. Simply wire in the harness and then plug into the controller to complete installation. This harness makes it easy to move the brake controller from one vehicle to another by just unplugging.

• OEM style wiring harness
• Quick and easy plug in connections
• Allows controller to be unplugged and moved to other vehicles
• Color-coded wire match brake control standards
• Works on time proportional and time based controls
• Positive locking connector stays connected when plug in tightly
• Simple do it yourself instructions on every package
• Fits REESE Towpower and Tekonsha brake controllers
