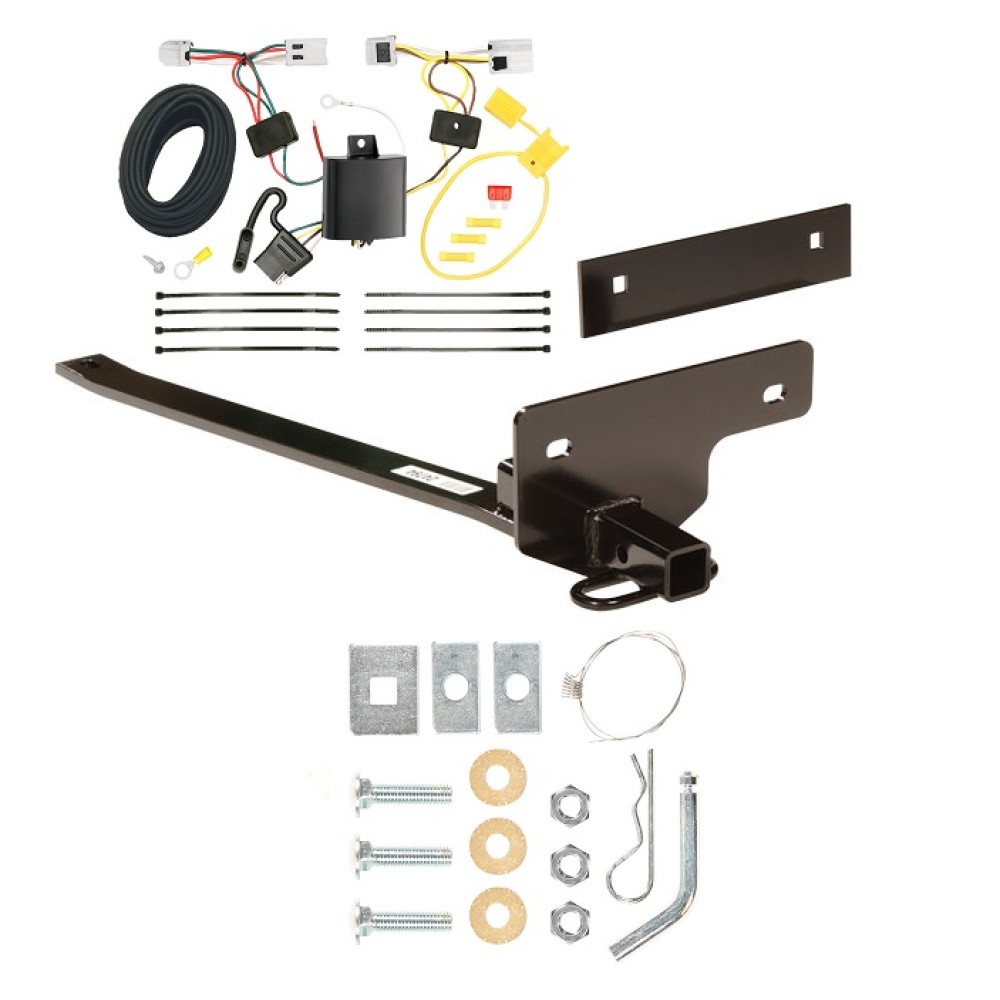

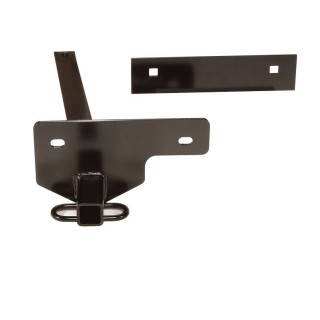

Installation Instructions for Nissan Sentra

Part Numbers:

• 24794
• 60871
• 77166

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4”
• Drill Bits: 1/2”
• Pull Wire (Provided)
• Sealant

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Remove Spare Tire and Jack:

   • Take out the spare tire and jack from the trunk.

2. Remove Plastic Rivets:

   • Detach the two plastic rivets securing the fascia tabs to the vehicle. Use a screwdriver to remove the center of each rivet. Save the rivets for reinstallation.

3. Scrape Undercoating:

   • Remove the undercoating from the bottom surface of the trunk reinforcement to ensure proper contact with the hardware.

4. Fishwire Carriage Bolt and Spacer:

   • Attach the pull wire to a 1/2”-13 x 2” carriage bolt and a square hole spacer.
   • Insert the assembly through the slot located behind the trunk reinforcement and pull it through to ensure the bolt and spacer are flat against the bottom.

5. Position Reinforcement Plate:

   • Place the reinforcement plate inside the spare tire well, aligning the 1-1/2” length with the bottom of the trunk. Position it between the ribs as shown in the diagram.

6. Drill Holes:

   • Drill two 1/2” holes through the trunk pan, using the reinforcement plate as a guide.

7. Install Carriage Bolts:

   • Insert two carriage bolts through the reinforcement plate and the drilled holes.
   • Place round hole spacers over the bolts on the opposite side of the bulkhead.

8. Attach Hitch:

   • Lift the hitch into position, ensuring the spacers are sandwiched between the bulkhead and the hitch.
   • Loosely secure the hitch with conical washers and hex nuts.

9. Attach to Trunk Reinforcement:

   • Secure the hitch’s crossbar to the trunk reinforcement using conical washers and hex nuts.

10. Tighten Fasteners:

    • Center the hitch on the vehicle.
    • Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).

11. Apply Sealant:

    • Seal the carriage bolt attachment points inside the spare tire well to prevent water or exhaust fumes from entering the vehicle.

12. Reattach Components:

    • Reinstall the plastic rivets to the fascia tabs.
    • Replace the spare tire and jack in the trunk.

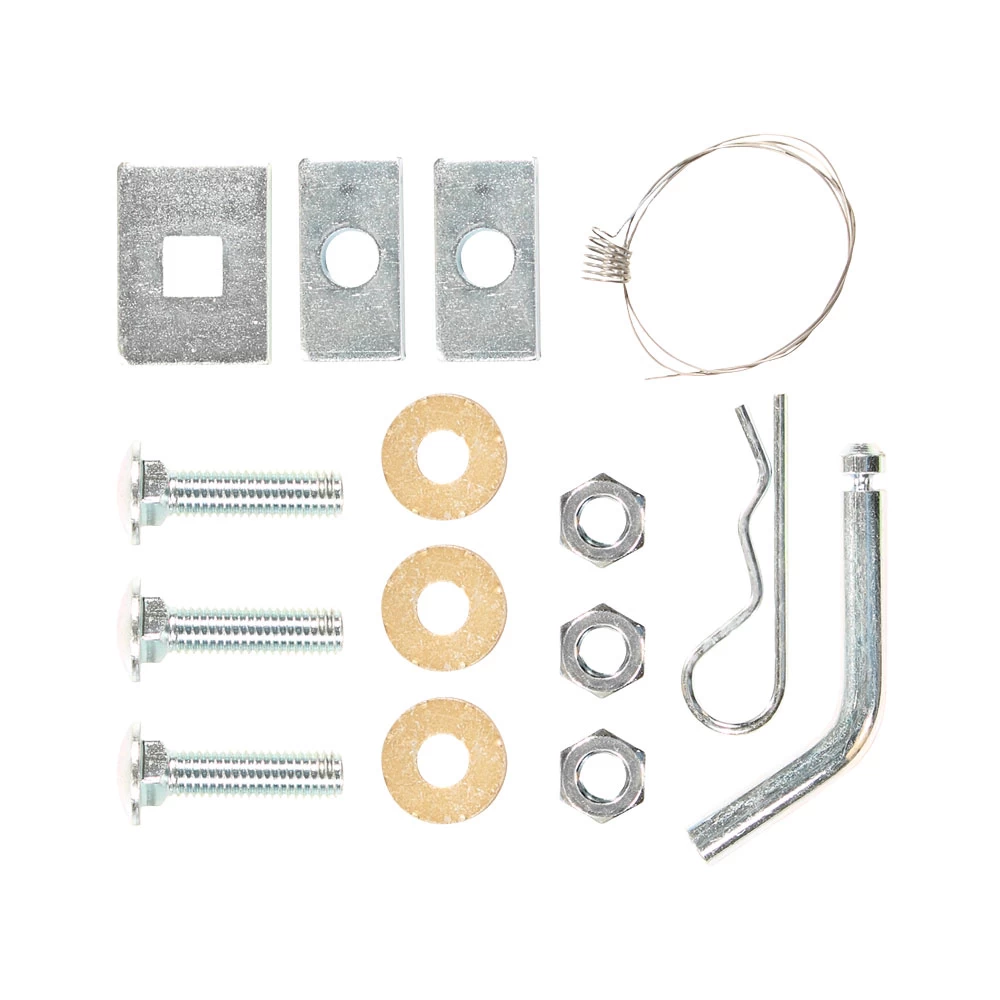

Hardware List:

• (3) Carriage Bolts: 1/2”-13 x 2” GR5
• (1) Spacer: 1/4” x 1-1/2” x 2” (Square Hole)
• (2) Spacers: 1/4” x 1” x 2” (Round Hole)
• (3) Conical Washers
• (3) Hex Nuts: 1/2”-13

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

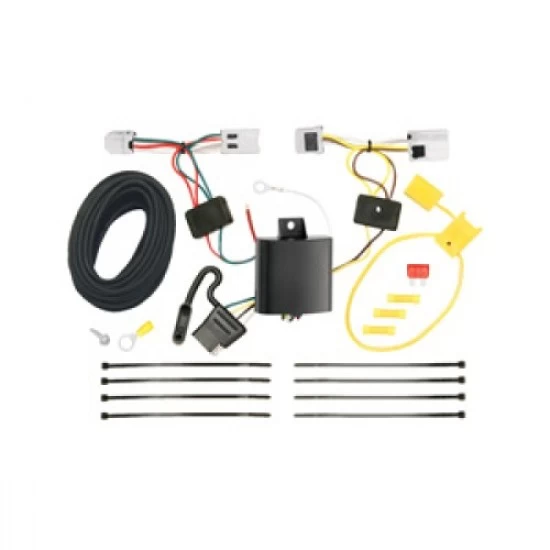

Installation Instructions for T-Connector Adapterfor Nissan Altima and Nissan Sentra

Part Numbers:

• 118470

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Remove the rear threshold plate temporarily.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides of the vehicle, locate the taillight wiring harness.
   • Disconnect the connector carefully, ensuring not to break the locking tabs.
   • Clean all connector surfaces to remove dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle wiring connectors on the driver’s side.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat step 3 on the passenger side using the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
   • Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

6. Mount the Black Box:

   • In the driver’s side storage area, clean a flat surface using a mixture of rubbing alcohol and water.
   • Mount the T-Connector’s black box using the provided double-sided tape.

7. Route the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store the connector in the trunk when not in use.

8. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame to the vehicle battery, avoiding areas that may pinch, cut, or melt the wire.

   Warning:

   • If routing the wire along the exterior of the vehicle, avoid hot pipes, heat shields, and the fuel tank.

9. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the ring terminal of the yellow fuse holder to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.

10. Reassemble the Vehicle:

    • Reinstall the felt trunk liner, threshold plate, and other items removed during installation, ensuring no wires are pinched or cut.

11. Test the Installation:

    • Test and verify the T-Connector functionality with a test light or trailer.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional information.
