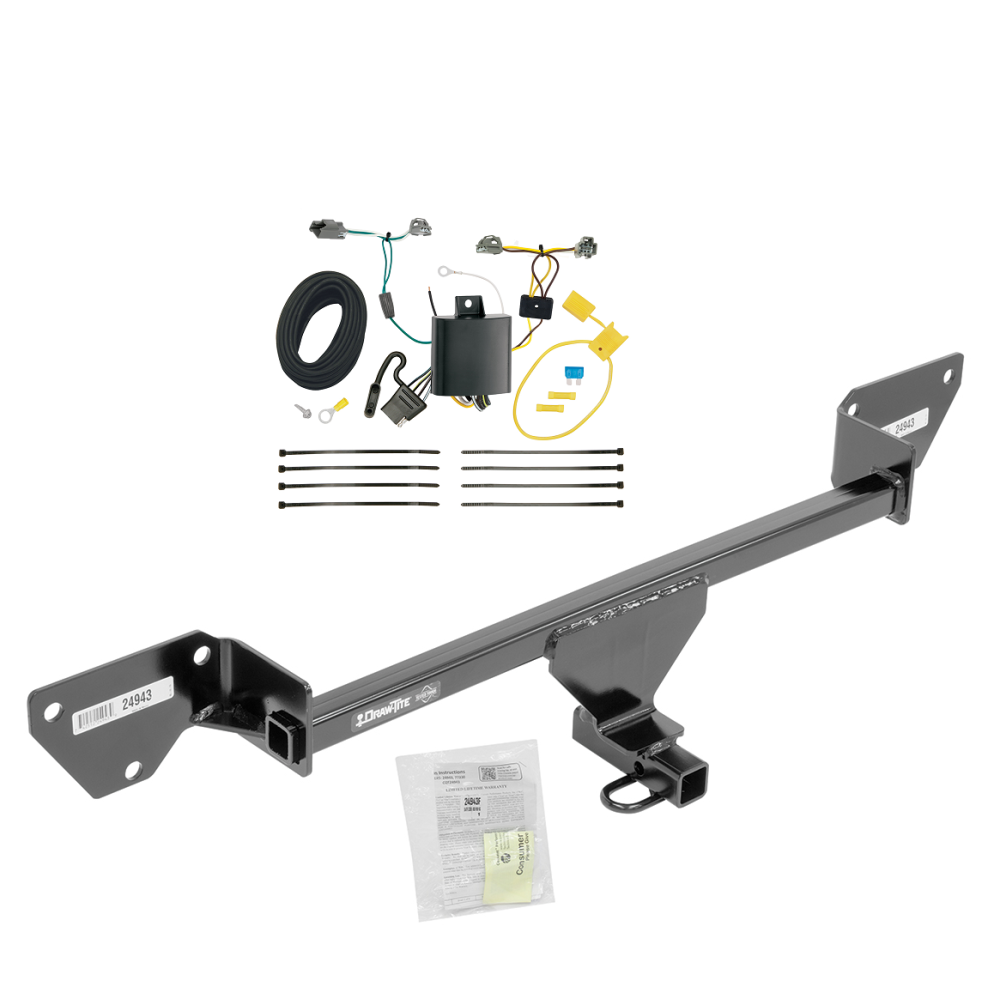

Installation Instructions for Chevrolet Cruze (2016-Present)

Part Numbers:

• 24943
• 77330
• CQT24943

Tools Required:

• Safety Glasses
• Ratchet
• Torque Wrench
• Sockets: 7mm, 15mm
• T15 Torx Driver
• 6” Socket Extension
• Utility Knife
• Marker

Weight Capacities:

• Weight Carrying:
  • Max Gross Trailer Weight: 2,000 lbs (908 kg)
  • Max Tongue Weight: 200 lbs (90.8 kg)
• Weight Distributing:
  • Not Applicable

Installation Time:

• Estimated: 80 minutes

Step-by-Step Instructions:

1. Fascia Removal:

• Use a 7mm socket to remove (4) bolts from the bottom fascia.
• Use a T15 Torx driver and 7mm socket to remove (4) bolts from the wheel well on each side.
• Open the trunk and gently remove the fascia. Set the bumper fascia aside.

2. Bumper Beam Removal:

• Use a 15mm socket to remove (3) flange nuts from the bumper plate on each side.
• Gently remove the bumper beam and set it aside.

3. Hitch Installation:

• Raise the hitch and hang it on the studs on the end panel.
• Raise the bumper beam to sandwich the hitch between the bumper and the end panel.
• Reuse the bumper flange nuts and loosely fasten them.

4. Tighten Fasteners:

• Use a torque wrench to tighten all fasteners to 53 lb-ft (72 N·m).

5. Bottom Fascia Trimming:

• Locate the center of the bottom fascia and trim a 4.5" tall by 3.5" wide area using a utility knife.
• Trim additional material if necessary for a proper fit.

6. Reinstall Components:

• Reverse the steps in Step 1 to reinstall all removed fasteners and the fascia.

Safety Notes:

• Regularly inspect the hitch and all fasteners to ensure a secure fit.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe safety precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class I
• Compliance: This product meets safety specifications per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions for T-One® T-Connector for Chevrolet Cruze

Part Numbers:

• 118696

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Wiring Harness:

   • On both the driver and passenger sides, locate the taillight wiring harness.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
   • Ensure the connectors are fully inserted and secured.

4. Route the Passenger-Side T-Connector:

   • Route the green wire T-Connector behind the panels and along the threshold to the passenger side.
   • Repeat Step 3 for the passenger-side T-Connector.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean dirt and rustproofing from the area, then drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the exterior frame or follow existing wiring into the engine compartment.

   Warning: Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could pinch or break.

7. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the provided ring terminal to the vehicle’s positive (+) battery cable.
   • Connect the other end of the fuse holder to the black wire using the yellow butt connector.
   • Insert the 15-amp fuse into the fuse holder.

8. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Test the installation using a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

9. Mount the T-One® Black Box:

   • Locate a flat surface in an out-of-the-way place and mount the black box using the provided double-sided tape.

10. Secure the Wiring:

    • Use the provided cable ties to secure the T-One® harness, ensuring no wires are pinched, cut, or melted.

11. Reassemble the Vehicle:

    • Replace the carpet, clips, panels, and threshold removed earlier.
    • Ensure no wires are pinched during reassembly.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.
