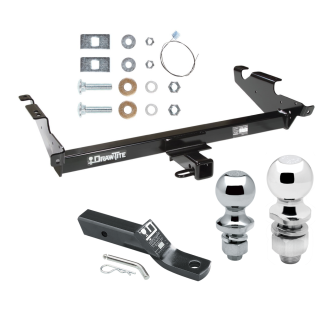

Trailer Tow Hitch For 78‑96 Chevy GMC G10 G20 G30 G1500 G2500 G3500 Receiver w/ 1‑7/8" and 2" Ball
Model: 41121 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1978 - 1995 Chevrolet, G10, All Styles
1978 - 1995 Chevrolet, G20, All Styles
1978 - 1995 Chevrolet, G30, All Styles
1979 - 1995 GMC, G1500, All Styles
1979 - 1995 GMC, G2500, All Styles
1979 - 1995 GMC, G3500, All Styles
1996 Chevrolet, G30, Classic & Sport Full Size w/Lo-Mount Taillights
1996 GMC, G3500, Vandura & Rally Full Size w/Lo-Mount Taillights
Trailer Hitch Specs:
Ball Mount Specs:
Fits | 2" x 2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63816 |
Brand | Draw-Tite |
Size | 1-7/8" x 1" x 2-1/8" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63845 |
Brand | Draw-Tite |
Size | 2" x 1" x 2-1/8" |
Towing Capacity | 7,500 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 250 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996
$326 70 $508.62 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$508.62 $326 70
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $81.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41121 23 63845 63816
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Ball Mount Included | Yes |
Color | Black |
Drilling Required | No |
Gross Towing Weight | 5,000 lbs. |
Gross Towing Weight w/ Weight Distribution Kit | 10,000 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 500 lbs. |
Maximum Tongue Weight w/ Weight Distribution Kit | 1,000 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1978 - 1995 Chevrolet, G10, All Styles
1978 - 1995 Chevrolet, G20, All Styles
1978 - 1995 Chevrolet, G30, All Styles
1979 - 1995 GMC, G1500, All Styles
1979 - 1995 GMC, G2500, All Styles
1979 - 1995 GMC, G3500, All Styles
1996 Chevrolet, G30, Classic & Sport Full Size w/Lo-Mount Taillights
1996 GMC, G3500, Vandura & Rally Full Size w/Lo-Mount Taillights
Trailer Hitch Specs:
Ball Mount Specs:
Fits | 2" x 2" Trailer Hitch Receiver |
Brand | Draw-Tite |
Finish | Black Powdercoat |
Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63816 |
Brand | Draw-Tite |
Size | 1-7/8" x 1" x 2-1/8" |
Towing Capacity | 2,000 lbs. GTW |
Material | Chrome |
Torque | torgue to 160 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Hitch Ball Specs:
Part Number | 63845 |
Brand | Draw-Tite |
Size | 2" x 1" x 2-1/8" |
Towing Capacity | 7,500 lbs. GTW |
Material | Chrome (Cold forged for superior strength) |
Torque | torgue to 250 ft. lbs |
Ball Hole Diameter | 1" |
Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996
Get Expert Help
Trailer Tow Hitch For 78-96 Chevy GMC G10 G20 G30 G1500 G2500 G3500 Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Chevrolet & GMC Vans
Part Numbers:
- 41121
- 87481
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- 9/16" Wrench and Socket
- 3/4" Wrench and Socket
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Bumper Support Brackets:
- Remove the two lower bumper support brackets (one per side).
- Save the bolts and washers.
- Return the brackets to the vehicle owner.
-
Install Side Brackets:
- Place the left and right side brackets against the bottom of the vehicle frame.
- Attach with four (4) 1/2" bolts and washers removed in Step 1.
- Leave the bolts loose for now.
-
Install Bumper Bolts:
- Install two (2) 3/8" bumper bolts (removed in Step 1), along with two (2) 3/8" serrated washers and two (2) 3/8" lock nuts (provided in the parts package).
- Leave the lock nuts loose at this time.
Warning:
- Two 3/8" lock nuts must be used with two 3/8" bumper bolts to ensure the receiver does not loosen or separate from the vehicle.
-
Fishwire Carriage Bolts:
- Screw the pull wire onto a 1/2" carriage bolt.
- Feed the pull wire through a bolt plate and the large hole in the outboard side of the frame.
- Pull it out through the bottom hole of the frame.
- Repeat for the other side.
- Install two (2) 1/2" serrated washers, lock washers, and nuts on the bolts.
- Leave the nuts loose at this time.
-
Tighten Bolts and Nuts:
- Tighten bolts and nuts in the following order to ensure proper alignment:
- Torque the two (2) 3/8" lock nuts on the bumper to 30 ft-lb.
- Torque the 1/2" nuts and bolts to 75 ft-lb.
- Tighten bolts and nuts in the following order to ensure proper alignment:
Torque Specifications:
- 3/8" lock nuts: 30 ft-lb
- 1/2" nuts and bolts: 75 ft-lb
Hardware List:
- (4) 1/2" Carriage Bolts
- (4) 1/2" Serrated Washers
- (4) 1/2" Nuts
- (4) Bolt Plates
- (2) 3/8" Bumper Bolts
- (2) 3/8" Serrated Washers
- (2) 3/8" Lock Nuts
- (1) 1/2" Pull Wire
Safety Notes:
- Do not lubricate threads, as bolt failure may occur due to over-tightening.
- Do not drill or weld to this hitch.
- Regularly check the hitch to ensure all fasteners are tight and properly installed.
Specifications:
- Weight Carrying:
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- Use only bolts, lock nuts, and washers supplied or approved by Towing Products for installation.
- This product complies with VESC regulation V-5 and is certified for safety specifications in New York State.
