Trailer Tow Hitch For 63-74 Chevy GMC C/K 68-85 Dodge D/W Ramcharger 63-79 Ford F-100 F-150 F-250 F-350 Deluxe Package Wiring 2" Ball and Lock
$282.53
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41504 20252 23 63845 580407 7010

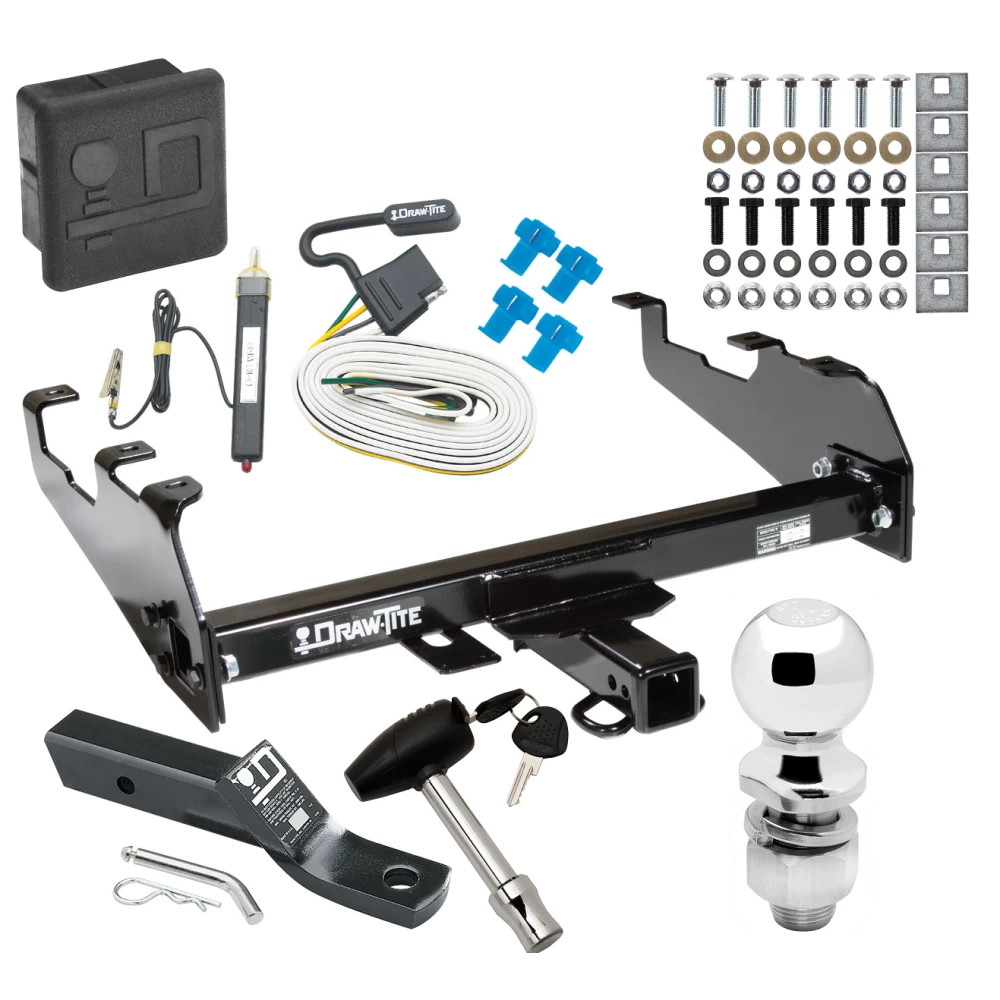

Includes Everything Pictured:
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1963 - 1972 Chevrolet, C10, w/Deep Drop Bumper
1963 - 1972 Chevrolet, C20, w/Deep Drop Bumper
1963 - 1972 Chevrolet, C30, w/Deep Drop Bumper
1963 - 1972 Chevrolet, K10, w/Deep Drop Bumper
1963 - 1972 Chevrolet, K20, w/Deep Drop Bumper
1968 - 1979 Dodge, D100, w/Deep Drop Bumper
1977 - 1985 Dodge, D150, w/Deep Drop Bumper
1968 - 1970 Dodge, D200, w/Deep Drop Bumper
1971 - 1980 Dodge, D200, w/Deep Drop Bumper
1981 - 1985 Dodge, D250, w/Deep Drop Bumper
1968 - 1970 Dodge, D300, w/Deep Drop Bumper
1971 - 1980 Dodge, D300, w/Deep Drop Bumper
1981 - 1985 Dodge, D350, w/Deep Drop Bumper
1974 - 1985 Dodge, Ramcharger, w/Deep Drop Bumper, Except w/Skid Shield
1967 - 1970 Dodge, W100, w/Deep Drop Bumper
1971 - 1977 Dodge, W100, w/Deep Drop Bumper
1977 - 1985 Dodge, W150, w/Deep Drop Bumper
1967 - 1970 Dodge, W200, w/Deep Drop Bumper
1971 - 1980 Dodge, W200, w/Deep Drop Bumper
1981 - 1985 Dodge, W250, w/Deep Drop Bumper
1967 - 1970 Dodge, W300, w/Deep Drop Bumper
1971 - 1980 Dodge, W300, w/Deep Drop Bumper
1981 - 1985 Dodge, W350, w/Deep Drop Bumper
1978 - 1979 Ford, Bronco, w/Deep Drop Bumper
1989 - 1997 Ford, F Super Duty, Cab & Chassis, w/34" Wide Frames & 161" Wheelbase & w/Deep Drop Bumper
1963 - 1974 Ford, F-100, w/Deep Drop Bumper
1975 - 1979 Ford, F-100, w/Deep Drop Bumper
1975 - 1979 Ford, F-150, w/Deep Drop Bumper
1963 - 1974 Ford, F-250, w/Deep Drop Bumper
1975 - 1979 Ford, F-250, w/Deep Drop Bumper
1963 - 1974 Ford, F-350, w/Deep Drop Bumper
1975 - 1979 Ford, F-350, w/Deep Drop Bumper
1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames & w/Deep Drop Bumper
1963 - 1965 GMC, 1000 Series, w/Deep Drop Bumper
1963 - 1965 GMC, 1500 Series, w/Deep Drop Bumper
1963 - 1965 GMC, 2500 Series, w/Deep Drop Bumper
1963 - 1966 GMC, 3000, w/Deep Drop Bumper
1963 - 1966 GMC, 3500, w/Deep Drop Bumper
1967 - 1974 GMC, C15, w/Deep Drop Bumper
1967 - 1974 GMC, K15, w/Deep Drop Bumper
1969 - 1970 International, 1000D, w/Deep Drop Bumper
1974 - 1981 Plymouth, Trailduster, w/Deep Drop Bumper, Except w/Skid Shield
Custom Fit Trailer Hitch
Wiring Harness (Requires Splicing)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1963 - 1972 Chevrolet, C10, w/Deep Drop Bumper
1963 - 1972 Chevrolet, C20, w/Deep Drop Bumper
1963 - 1972 Chevrolet, C30, w/Deep Drop Bumper
1963 - 1972 Chevrolet, K10, w/Deep Drop Bumper
1963 - 1972 Chevrolet, K20, w/Deep Drop Bumper
1968 - 1979 Dodge, D100, w/Deep Drop Bumper
1977 - 1985 Dodge, D150, w/Deep Drop Bumper
1968 - 1970 Dodge, D200, w/Deep Drop Bumper
1971 - 1980 Dodge, D200, w/Deep Drop Bumper
1981 - 1985 Dodge, D250, w/Deep Drop Bumper
1968 - 1970 Dodge, D300, w/Deep Drop Bumper
1971 - 1980 Dodge, D300, w/Deep Drop Bumper
1981 - 1985 Dodge, D350, w/Deep Drop Bumper
1974 - 1985 Dodge, Ramcharger, w/Deep Drop Bumper, Except w/Skid Shield
1967 - 1970 Dodge, W100, w/Deep Drop Bumper
1971 - 1977 Dodge, W100, w/Deep Drop Bumper
1977 - 1985 Dodge, W150, w/Deep Drop Bumper
1967 - 1970 Dodge, W200, w/Deep Drop Bumper
1971 - 1980 Dodge, W200, w/Deep Drop Bumper
1981 - 1985 Dodge, W250, w/Deep Drop Bumper
1967 - 1970 Dodge, W300, w/Deep Drop Bumper
1971 - 1980 Dodge, W300, w/Deep Drop Bumper
1981 - 1985 Dodge, W350, w/Deep Drop Bumper
1978 - 1979 Ford, Bronco, w/Deep Drop Bumper
1989 - 1997 Ford, F Super Duty, Cab & Chassis, w/34" Wide Frames & 161" Wheelbase & w/Deep Drop Bumper
1963 - 1974 Ford, F-100, w/Deep Drop Bumper
1975 - 1979 Ford, F-100, w/Deep Drop Bumper
1975 - 1979 Ford, F-150, w/Deep Drop Bumper
1963 - 1974 Ford, F-250, w/Deep Drop Bumper
1975 - 1979 Ford, F-250, w/Deep Drop Bumper
1963 - 1974 Ford, F-350, w/Deep Drop Bumper
1975 - 1979 Ford, F-350, w/Deep Drop Bumper
1999 - 2000 Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames & w/Deep Drop Bumper
1963 - 1965 GMC, 1000 Series, w/Deep Drop Bumper
1963 - 1965 GMC, 1500 Series, w/Deep Drop Bumper
1963 - 1965 GMC, 2500 Series, w/Deep Drop Bumper
1963 - 1966 GMC, 3000, w/Deep Drop Bumper
1963 - 1966 GMC, 3500, w/Deep Drop Bumper
1967 - 1974 GMC, C15, w/Deep Drop Bumper
1967 - 1974 GMC, K15, w/Deep Drop Bumper
1969 - 1970 International, 1000D, w/Deep Drop Bumper
1974 - 1981 Plymouth, Trailduster, w/Deep Drop Bumper, Except w/Skid Shield
Trailer Hitch Specs:
| Part Number | 41504 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 20252 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 89 90 91 92 93 94 95 96 97 99 00 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1989 1990 1991 1992 1993 1994 1995 1996 1997 1999 2000
