Name: Trailer Tow Hitch For 63-91 Chevy GMC C/K 68-94 Dodge D/W Ramcharger 95-02 Ram 63-97 Ford F-100 F-150 F-250 F-350 w/ 1-7/8" and 2" Ball
Brand: Draw-Tite
Price: 258.88 USD
Availability: InStock

Trailer Tow Hitch For 63-91 Chevy GMC C/K 68-94 Dodge D/W Ramcharger 95-02 Ram 63-97 Ford F-100 F-150 F-250 F-350 w/ 1-7/8" and 2" Ball

0 reviews - Write a review

$258.88

Stock: In Stock
Brand: Draw-Tite
Model: 41504 23 63845 63816

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Applies to this product only

Estimate

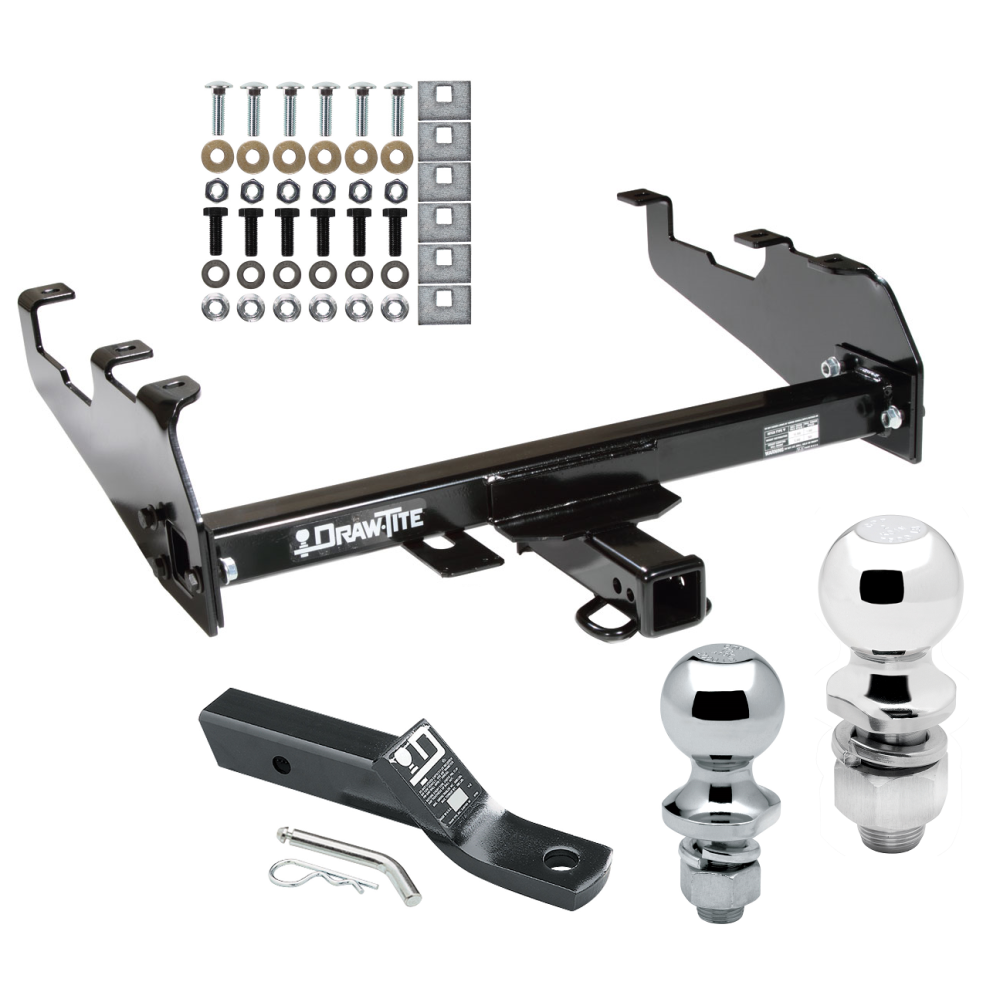

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

1963 - 1986    Chevrolet, C10, w/Deep Drop Bumper
1963 - 1986    Chevrolet, C20, w/Deep Drop Bumper
1963 - 1986    Chevrolet, C30, w/Deep Drop Bumper
1988 - 1991    Chevrolet, C2500, Crew Cab, w/Deep Drop Bumper
1988 - 1991    Chevrolet, C3500, Crew Cab, w/Deep Drop Bumper

1963 - 1986    Chevrolet, K10, w/Deep Drop Bumper
1963 - 1986    Chevrolet, K20, w/Deep Drop Bumper
1973 - 1986    Chevrolet, K30, w/Deep Drop Bumper
1988 - 1991    Chevrolet, K2500, Crew Cab, w/Deep Drop Bumper
1988 - 1991    Chevrolet, K3500, Crew Cab, w/Deep Drop Bumper

1968 - 1979    Dodge, D100, w/Deep Drop Bumper
1986 - 1989    Dodge, D100, w/Deep Drop Bumper
1977 - 1993    Dodge, D150, w/Deep Drop Bumper
1968 - 1980    Dodge, D200, w/Deep Drop Bumper
1981 - 1985    Dodge, D250, w/Deep Drop Bumper
1968 - 1980    Dodge, D300, w/Deep Drop Bumper
1981 - 1985    Dodge, D350, w/Deep Drop Bumper

1994 - 2001    Dodge, Ram 1500, w/Deep Drop Bumper
1994 - 2002    Dodge, Ram 2500, w/Deep Drop Bumper
1994 - 2002    Dodge, Ram 3500, w/Deep Drop Bumper

1974 - 1988    Dodge, Ramcharger, w/Deep Drop Bumper, Except w/Skid Shield

1967 - 1977    Dodge, W100, w/Deep Drop Bumper
1986 - 1989    Dodge, W100, w/Deep Drop Bumper
1977 - 1993    Dodge, W150, w/Deep Drop Bumper
1967 - 1980    Dodge, W200, w/Deep Drop Bumper
1981 - 1993    Dodge, W250, w/Deep Drop Bumper
1967 - 1980    Dodge, W300, w/Deep Drop Bumper
1981 - 1993    Dodge, W350, w/Deep Drop Bumper

1978 - 1986    Ford, Bronco, w/Deep Drop Bumper

1989 - 1997    Ford, F Super Duty, Cab & Chassis, w/34" Wide Frames & 161" Wheelbase & w/Deep Drop Bumper
1963 - 1979    Ford, F-100, w/Deep Drop Bumper
1980 - 1983    Ford, F-100, w/Deep Drop Bumper, Except w/Custom Fascia

1975 - 1979    Ford, F-150, w/Deep Drop Bumper
1980 - 1986    Ford, F-150, w/Deep Drop Bumper, Except w/Custom Fascia
1987 - 1996    Ford, F-150, w/Deep Drop Bumper

1963 - 1979    Ford, F-250, w/Deep Drop Bumper
1980 - 1986    Ford, F-250, w/Deep Drop Bumper, Except w/Custom Fascia
1987 - 1996    Ford, F-250, w/Deep Drop Bumper

1963 - 1979    Ford, F-350, w/Deep Drop Bumper
1980 - 1986    Ford, F-350, w/Deep Drop Bumper, Except w/Custom Fascia
1987 - 1996    Ford, F-350, w/Deep Drop Bumper

1997    Ford, F-250, Heavy Duty, w/Deep Drop Bumper
1997    Ford, F-350, Heavy Duty, w/Deep Drop Bumper
1999 - 2000    Ford, F-350 Super Duty, Cab & Chassis, w/34" Wide Frames & w/Deep Drop Bumper

1963 - 1965    GMC, 1000 Series, w/Deep Drop Bumper
1963 - 1965    GMC, 1500 Series, w/Deep Drop Bumper
1963 - 1965    GMC, 2500 Series, w/Deep Drop Bumper
1963 - 1966    GMC, 3000, w/Deep Drop Bumper
1963 - 1966    GMC, 3500, w/Deep Drop Bumper

1967 - 1978    GMC, C15, w/Deep Drop Bumper
1979 - 1986    GMC, C1500, w/Deep Drop Bumper
1967 - 1978    GMC, C25, w/Deep Drop Bumper
1979 - 1986    GMC, C2500, w/Deep Drop Bumper
1988 - 1991    GMC, C2500, Crew Cab, w/Deep Drop Bumper
1967 - 1978    GMC, C35, w/Deep Drop Bumper
1979 - 1986    GMC, C3500, w/Deep Drop Bumper
1988 - 1991    GMC, C3500, Crew Cab, w/Deep Drop Bumper

1967 - 1978    GMC, K15, w/Deep Drop Bumper
1979 - 1986    GMC, K1500, w/Deep Drop Bumper
1967 - 1978    GMC, K25, w/Deep Drop Bumper
1979 - 1986    GMC, K2500, w/Deep Drop Bumper
1967 - 1974    GMC, K35, w/Deep Drop Bumper
1977 - 1978    GMC, K35, w/Deep Drop Bumper
1979 - 1986    GMC, K3500, w/Deep Drop Bumper
1988 - 1991    GMC, K3500, w/Deep Drop Bumper

1969 - 1970    International, 1000D, w/Deep Drop Bumper

1974 - 1981    Plymouth, Trailduster, w/Deep Drop Bumper, Except w/Skid Shield

Trailer Hitch Specs:

Part Number	41504
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	10,000 lbs
Max Tongue Weight	500/1000 lbs
Warranty	Lifetime
Installation Instructions

Ball Mount Specs:

Fits	2" x 2" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	7,500 lb Gross Towing Weight 750 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63816
Brand	Draw-Tite
Size	1-7/8" x 1" x 2-1/8"
Towing Capacity	2,000 lbs. GTW
Material	Chrome
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Hitch Ball Specs:

Part Number	63845
Brand	Draw-Tite
Size	2" x 1" x 2-1/8"
Towing Capacity	7,500 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 250 ft. lbs
Ball Hole Diameter	1"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 1963 1964 1965 1966 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978 1979 1980 1981 1982 1983 1984 1985 1986 1987 1978 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	Yes
Gross Towing Weight	5,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	10,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	500 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	1,000 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube
