Trailer Tow Hitch For 88-00 Chevy GMC C/K w/Aftermarket Roll Pan Receiver w/ 1-7/8" and 2" Ball
$270.87
- Stock: In Stock
- Brand: Draw-Tite
- Model: 41522 23 63845 63816

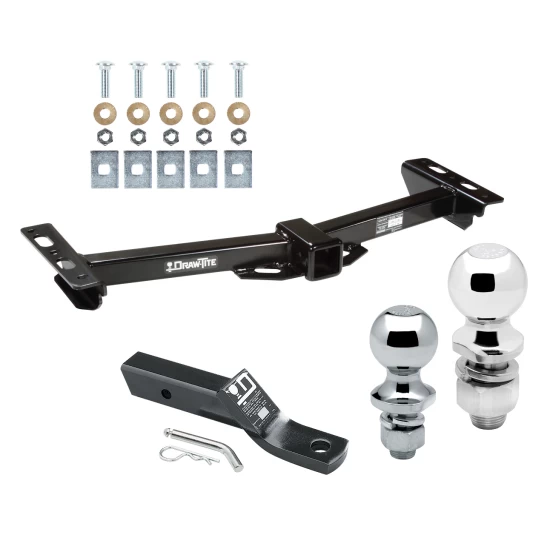

Includes Everything Pictured:
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1988 - 1999 Chevrolet, C1500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, C2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, C3500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K1500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, K3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, C1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, K1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K3500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, C2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, C3500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K1500, w/Aftermarket Roll Pan
1988 - 1999 Chevrolet, K2500, w/Aftermarket Roll Pan
1988 - 2000 Chevrolet, K3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, C1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, C3500, w/Aftermarket Roll Pan
1988 - 1999 GMC, K1500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K2500, w/Aftermarket Roll Pan
1988 - 2000 GMC, K3500, w/Aftermarket Roll Pan
Trailer Hitch Specs:
| Part Number | 41522 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 500/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
